ATEN CL3116NX 19IN WIDE SCREEN 16PORT LCD KVM SWITCHES

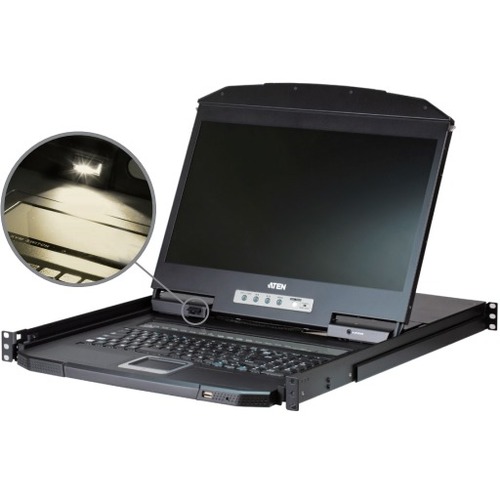

The ATEN CL3108/CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rackmounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3108/CL3116 can control up to 8/16 computers; when 8/16 additional KVM switches are cascaded, a single CL3108/CL3116 LCD KVM Switch can control up to 128/256 computers. To achieve greater operational efficiency, the CL3108/CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3108/CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108/CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3108/CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry

General Information
Manufacturer	ATEN Technology, Inc
Manufacturer Part Number	CL3116NX
Manufacturer Website Address	http://www.aten.com/us/en/
Brand Name	ATEN
Product Series	SOHO
Product Model	CL3116
Product Name	SOHO CL3116 LCD Rack Console
Product Type	LCD Rack Console
Technical Information
KVM Switch	Yes
Number of Computers Supported	256
Display & Graphics
Screen Size	18.5"
Display Screen Type	LCD
Screen Mode	HD
Screen Resolution	1366 x 768
Input Devices
Keyboard	Yes
Pointing Device Type	TouchPad
Interfaces/Ports
PS/2 Port	Yes
USB	Yes
VGA	Yes
Number of USB Ports	1
Number of VGA Ports	16
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Input Voltage Range	100V AC to 240V AC
Input Current	1 A
Physical Characteristics
Product Material	Plastic
Product Material	Metal
Rack Height	1U
Height	1.7"
Width	18.9"
Depth	24.9"
Weight (Approximate)	23.37 lb
Warranty
Limited Warranty	3 Year
