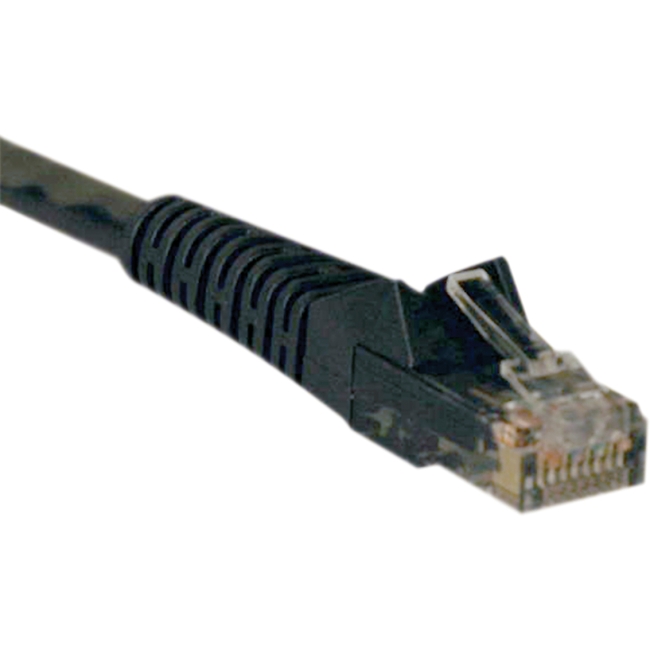

N201-007-BK Tripp Lite Cat6 Gigabit Snagless Molded Patch Cable

This category 6, molded patch cable lets you stay ahead of the game by using a high-speed cable to distribute data, voice and video. Cable delivers stable performance up to 550MHz. High-quality copper wire and a staggered-pin plug design keep near-end cross-talk levels to a minimum. Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation. 7' cable is designed for use in category 6, category 5e and category 5 applications.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	N201007BK
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	Gigabit
Product Model	N201-007-BK
Product Name	Gigabit N201-007-BKCat.6 UTP Patch Network Cable
Packaged Quantity	1
Product Type	Network Cable
Technical Information
Cable Type	Category 6
Cable Characteristic	Patch Cable
Cable Length	7 ft
Connector Type on First End	RJ-45 Network - Male
Connector on First End Details	1 x RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Connector on Second End Details	1 x RJ-45 Network - Male
Contact Plating	Gold
Conductor	Copper
Shielding	No
Jacket Type	CM
Device Supported	ATM
Device Supported	Network Device
American Wire Gauge	24 AWG
Data Transfer Rate	1 Gbit/s
Boot Type	Snagless
Number of Pairs	4
Features	Stranded
Features	Booted
Features	Strain Relief
Features	Molded
Features	Minimized Near-End Crosstalk (NEXT)
Physical Characteristics
Color Family	Black
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Shipping Height	9"
Shipping Width	7"
Shipping Weight (Approximate)	0.80 oz
Miscellaneous
Certifications & Standards	IEEE 802.3ab IEEE 802.5 ANSI/EIA/TIA 568 ISO/IEC 11801 ETL
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China
Warranty
Limited Warranty	Lifetime

General Information
Type	Cat 6
Connector End A	RJ45
Connector End A Pin Count	8
Connector End B	RJ45
Connector End B Pin Count	8
Gender	Male / Male
Length	-
Color	-

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

• Meets category 6 cabling standards


• Premium cabling for category 6, category 5e and category 5 applications


• Length: 7 ft. / Color: black / Connectors: RJ45 male


• Drastically reduce impedance & structural return loss compared to standard 100MHz wire


• High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum


• Feature molded connectors with integral strain relief


• Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation


• PVC 4-pair stranded UTP


• Deliver stable performance up to 550MHz/1 Gbps communication


• Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)


• Available in other colors and lengths


• Warranted to be free from defects in materials and workmanship for life
