FLUKE
FLUKE-175 ESFP Multimeter; Digital; 1000 VDC (Max.) Voltage; Range; DC; 600 Ohms to 50 Megohms
Mfg Part Number: FLUKE-175 ESFP , Item #: 3664885
, PO and Wire.

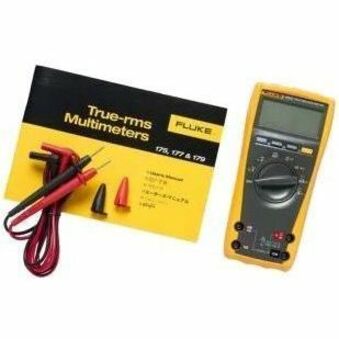

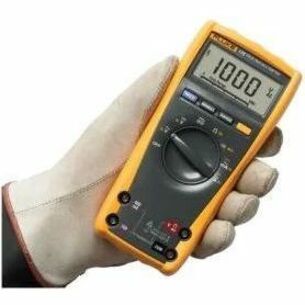

Product overview: Fluke 175 True-RMS Digital Multimeter | Fluke 175 is the baseline for industrial measurements
The Fluke 175 True RMS Digital Multimeter delivers the baseline general purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events.
Safety rated for industrial use
All inputs on the 175 are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed. You can rely on the Fluke 175 for accurate, true-RMS readings through years of reliable service.
Need More Accuracy or Temperature Measurements?
If you need a higher degree of accuracy or contact temperature measurements click here see Fluke 177 and Fluke 179 True RMS Digital Multimeters
Other useful features:
- Safety rated CAT III 1000 V, CAT IV 600 V
- Comes with a lifetime warranty
- Allows closed-case calibration through front panel
- Includes ergonomic case with integrated protective holster
| General Information | |
| Manufacturer | Fluke Corporation |
| Manufacturer Part Number | FLUKE-175 ESFP |
| Manufacturer Website Address | http://www.fluke.com |
| Brand Name | Fluke |
| Product Series | 170 |
| Product Model | 175 |
| Product Name | 175 True-RMS Digital Multimeter |
| Product Type | Multimeter |
| Technical Information | |
| Meter Type | Digital |
| Measurement Type | Capacitance |
| Measurement Type | Continuity |
| Measurement Type | DC Current |
| Measurement Type | Diode Test |
| Measurement Type | DC Voltage |
| Measurement Type | Resistance |
| Measurement Type | AC Current |
| Measurement Type | Frequency |
| Measurement Type | AC Voltage |
| True RMS | Yes |
| Ranging Type | Auto/Manual |
| Maximum AC Voltage Measurement | 1000 V |
| Maximum DC Voltage Measurement | 1000 V |
| Maximum AC Current Measurement | 10 A |
| Maximum DC Current Measurement | 10 A |
| Maximum Resistance Measurement | 50 Mega Ohm |
| Maximum Capacitance Measurement | 0.01F |
| Maximum Frequency Measurement | 100 kHz |
| Application/Usage | Electrical |
| Application/Usage | Electronic/Electric Equipment |
| Display & Graphics | |
| Display Counts | 6000 |
| Battery Information | |
| Battery Chemistry | Alkaline |
| Physical Characteristics | |
| Weight (Approximate) | 14.82 oz |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Safety
|
| Warranty | |
| Limited Warranty | Lifetime |
