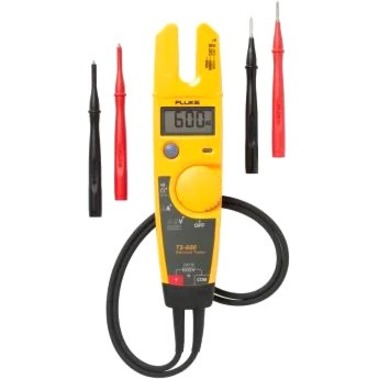

FLUKE T5-600 USA Voltage Continuity and Current Tester 600 VAC/VDC CAT III

The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.

Measure current up to 100 A without breaking the circuit with OpenJaw™ design

The trendsetting OpenJaw™ design allows for fast and easy current measurement, safely and without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to. The T5-600 is also designed to:

• Withstand a 10 ft. (3 m) drop
• Conserve battery life with auto-off mode

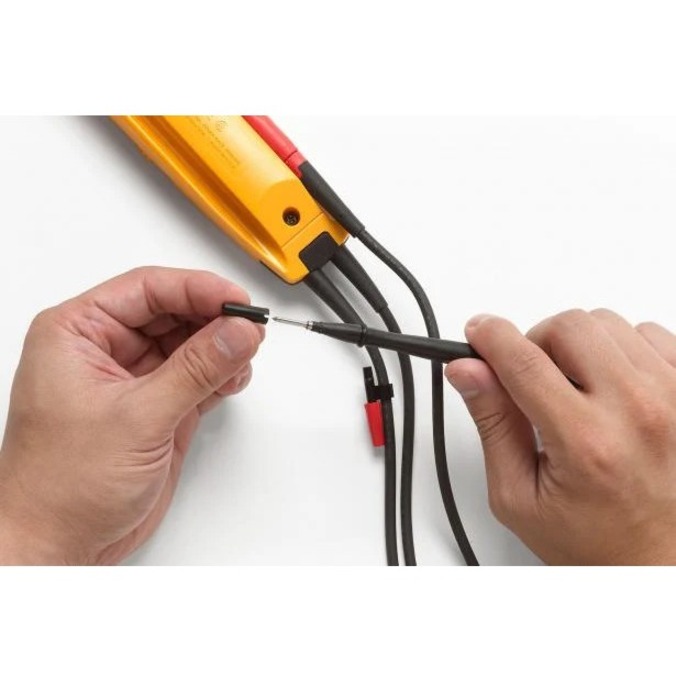

• Fit in one hand with handy probe storage in the back of the holster
• Accept Fluke accessory test clips with the test leads

Meter automatically selects AC or DC voltage for tests up to 600 V

Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected. This meter is suitable for both residential or commercial applications and is designed to keep you safe with a CAT III 600 V rating.

General Information
Manufacturer	Fluke Corporation
Manufacturer Part Number	T5-600 USA
Manufacturer Website Address	http://www.fluke.com
Brand Name	Fluke
Product Model	T5-600
Product Name	T5-600 Electrical Tester
Packaged Quantity	1
Product Type	Multimeter
Technical Information
Meter Type	Digital
Measurement Type	Resistance
Measurement Type	DC Current
Measurement Type	DC Voltage
Measurement Type	AC Current
Measurement Type	AC Voltage
Minimum AC Voltage Measurement	0 V
Maximum AC Voltage Measurement	600 V
Minimum DC Voltage Measurement	0 V
Maximum DC Voltage Measurement	600 V
Minimum AC Current Measurement	0 A
Maximum AC Current Measurement	100 A
Minimum Resistance Measurement	0 Micro Ohm
Maximum Resistance Measurement	1 Kilo Ohm
Minimum Frequency Measurement	50 Hz
Maximum Frequency Measurement	60 Hz
Jaw Size	0.51"
Battery Information
Battery Size	AA
Number of Batteries Supported	2
Physical Characteristics
Form Factor	Handheld
Height	1.2"
Width	2"
Depth	8"
Weight (Approximate)	10.58 oz
Miscellaneous
Package Contents	T5-600 Electrical Tester 4 mm Detachable Probes Instruction Sheet
Certifications & Standards	CE
Warranty
Limited Warranty	2 Year
