Harman

Harman AW266-BK HIGH OUTPUT 12IN 2-WAY FULL-RANGE LOUDSP

Mfg Part Number:  AW266-BK
Image may not reflect the actual item.
Price: $2,800.57 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 19, 2026
No Sales Tax except these states
, PO and Wire.

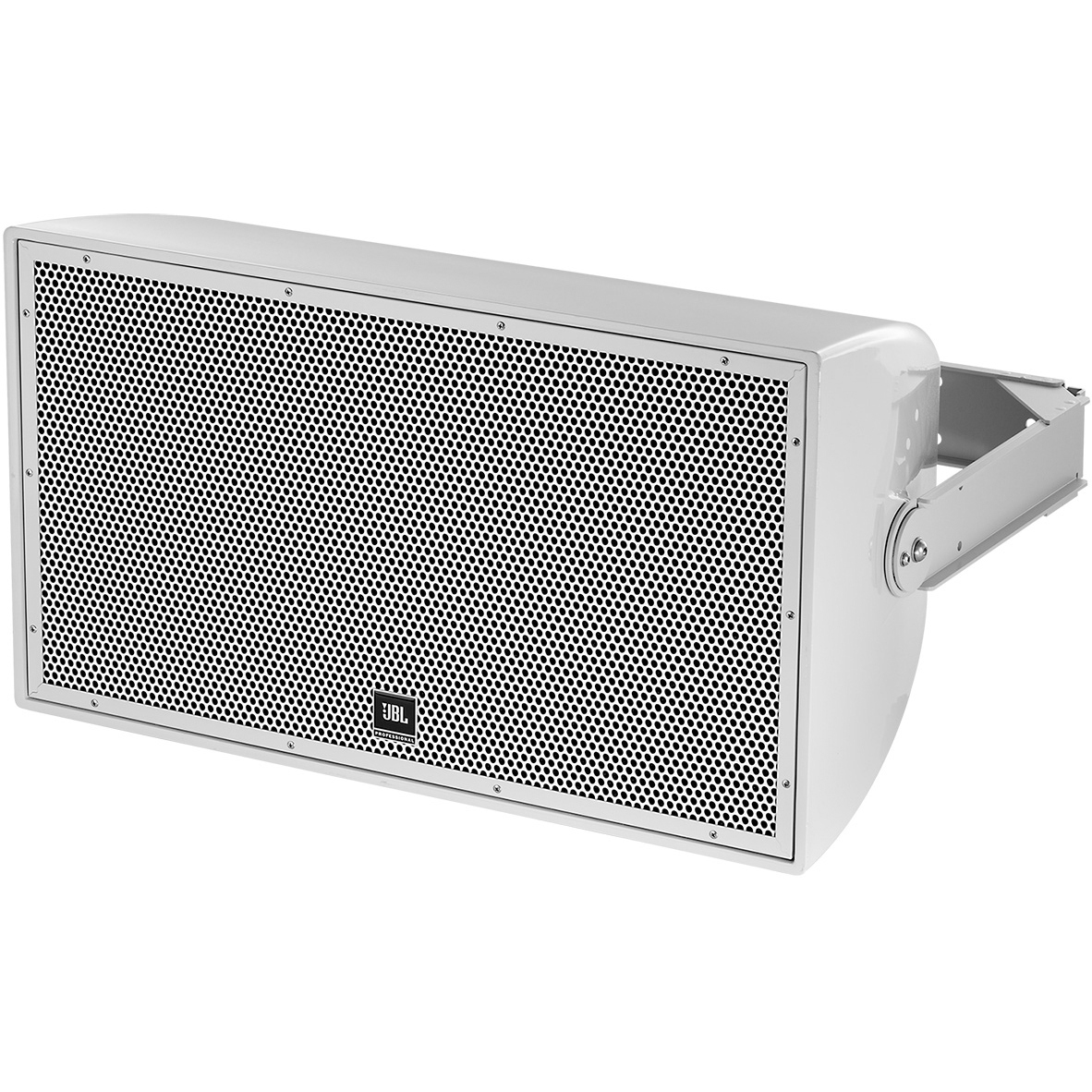

The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Main Specification
General Information
Manufacturer Harman International Industries, Inc
Manufacturer Part Number AW266-BK
Manufacturer Website Address http://www.harman.com
Brand Name JBL Professional
Product Series AE
Product Model AW266
Product Name AW266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
Product Type Speaker
Technical Information
Crossover Type 2-way
RMS Output Power 500 W
PMPO Output Power 2000 W
Woofer Driver Size 11.81"
Tweeter Driver Size 1.50"
Minimum Frequency Response 51 Hz
Maximum Frequency Response 18 kHz
Impedance 8 Ohm
Maximum Crossover Frequency 1.10 kHz
Sound Pressure Level 126 dB
Sensitivity 98 dB
Physical Characteristics
Product Color Black
Product Material Stainless Steel
Product Material Fiberglass
Height 16.1"
Width 28.8"
Depth 17.80"
Weight (Approximate) 55.56 lb
Miscellaneous
Package Contents
  • AW266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
  • Transformer
  • U-Bracket
Certifications & Standards

IP56 per IEC 529

Warranty
Limited Warranty 5 Year
