TRIPP LITE P783-006-U 6FT DISPLAYPORT KVM CABLE KIT 4K USB 3.5MM AUDIO 3XM/3XM USB M/M
Mfg Part Number: P783-006-U , Item #: 3653262
, PO and Wire.

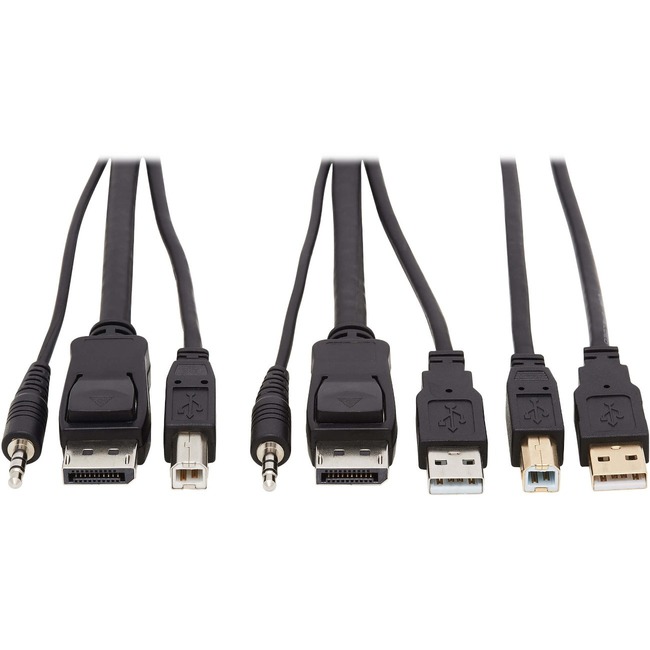

6 ft. Cables Connect Your DisplayPort Computer to a Tripp Lite NIAP KVM Switch with CAC
This DisplayPort cable kit includes two 6-foot cables for connecting a computer to a KVM switch with a Common Access Card (CAC) port. The P783-006 features DisplayPort, USB A/B and 3.5 mm audio connectors on both ends for connecting your computer to a KVM switch. The U022-006 is a USB cable that connects to the KVM's CAC port for accessing smart cards, scanners and biometric readers, including fingerprint readers, to bolster security.
Specifically Designed for Select Tripp Lite KVMs to Save You Time and Money
Recommended for the Tripp Lite B002-HD1AC4 NIAP KVM, the DisplayPort cable supports video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true 4:4:4 chroma subsampling. The USB cables also support USB 2.0 data transfer speeds up to 480 Mbps. By combining several different cables into one convenient kit, you cut down on unnecessary clutter and costs.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P783006U |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | P783-006-U |
| Product Name | KVM Cable |
| Product Type | KVM Cable |
| Technical Information | |
| Cable Length | 6 ft |
| Connector Type on First End | Mini-phone Audio - Male |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x USB 2.0 Type A - Male |
| Connector on First End Details | 1 x Mini-phone Audio - Male |
| Connector Type on Second End | USB 2.0 Type B - Male |
| Connector Type on Second End | Mini-phone Audio - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x USB 2.0 Type B - Male |
| Connector on Second End Details | 1 x Mini-phone Audio - Male |
| Connector on Second End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Contact Plating | Gold |
| Device Supported | KVM Switch |
| Device Supported | Computer |
| Data Transfer Rate | 480 Mbit/s |
| Supported Resolution | 3840 x 2160 |
| Features | HDCP 2.2 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Tripp Lite B002-HD1AC4 NIAP KVM Switch |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
