HANWHA TECHWIN

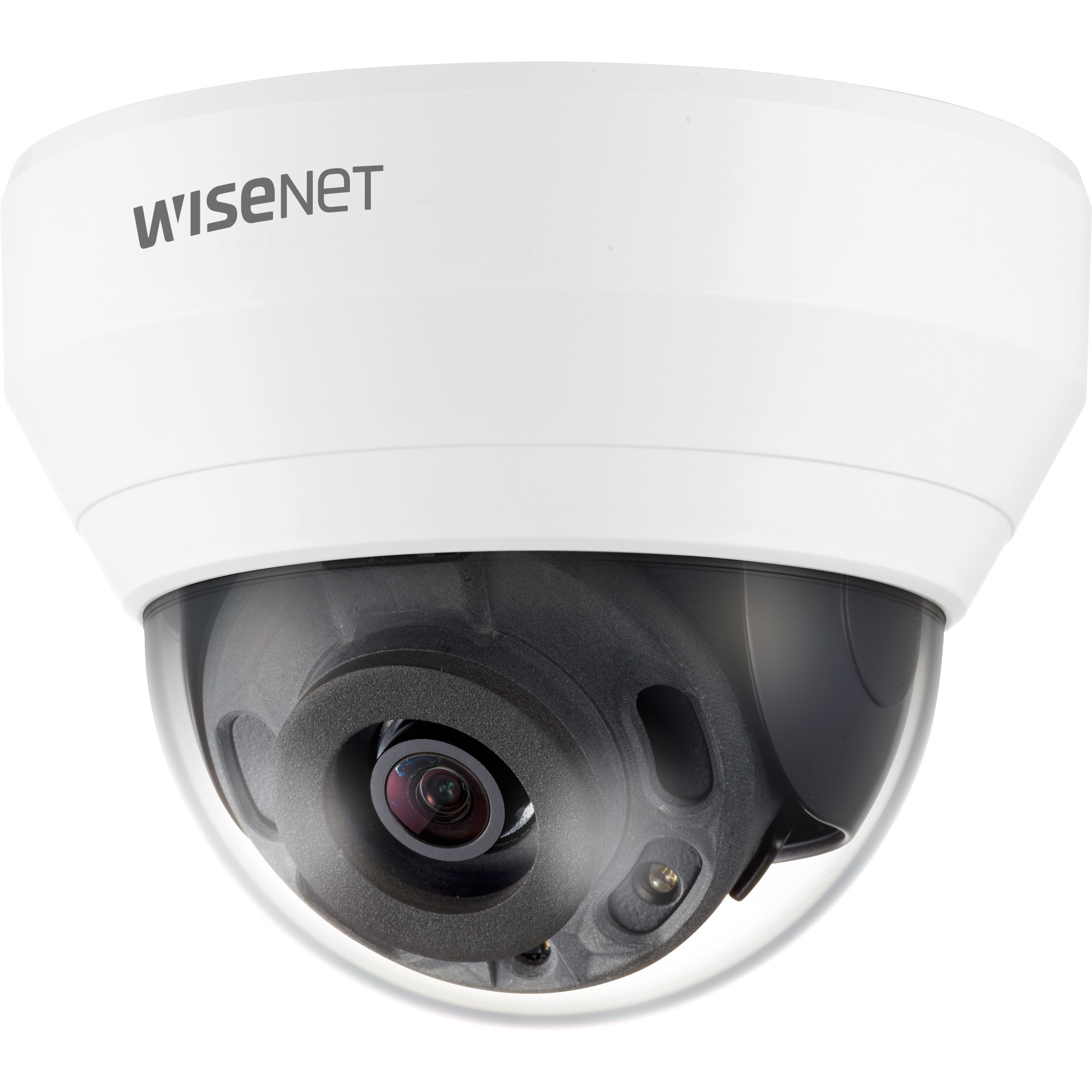

HANWHA TECHWIN QND-6022R Wisenet Q network indoor dome camera 2MP @ 30fps 4.0mm fixed focal lens (87 ) triple codec H.265/H.264/MJPEG with Wisestream II 120dB WDR IR LEDs range 65ft.
Mfg Part Number: QND-6022R , Item #: 3652271
Image may not reflect the actual item.
Price: $185.92
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 09, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QND6022R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QND-6022R |
| Product Name | 2MP Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Field of View | H : 87.6 V : 46.4° D : 104.5° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | PAL |
| Video Signal Format | NTSC |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Height | 3.4" |
| Diameter | 4.3" |
| Weight (Approximate) | 8.99 oz |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Alarm Triggering |
| Features | Privacy Masking |
| Features | Back Light Compensation (BLC) |
| Features | Gain Control |
| Features | SD Card Local Storage |
| Features | Wide Dynamic Range |
| Features | Day/Night |
| Features | Motion Detection |
| Features | Dynamic Noise Reduction |
| Indoor/Outdoor | Indoor |
| NDAA Compliant | Yes |
Mounting Kits
HANWHA TECHWIN
(SBP-120WMW)
Indoor wall mount for indoor domes (QND-8080R/8030R/8020R/8010R/6082R/6032R/6022R/6012R) white color
Indoor wall mount for indoor domes (QND-8080R/8030R/8020R/8010R/6082R/6032R/6022R/6012R) white color
$38.24
