HANWHA TECHWIN

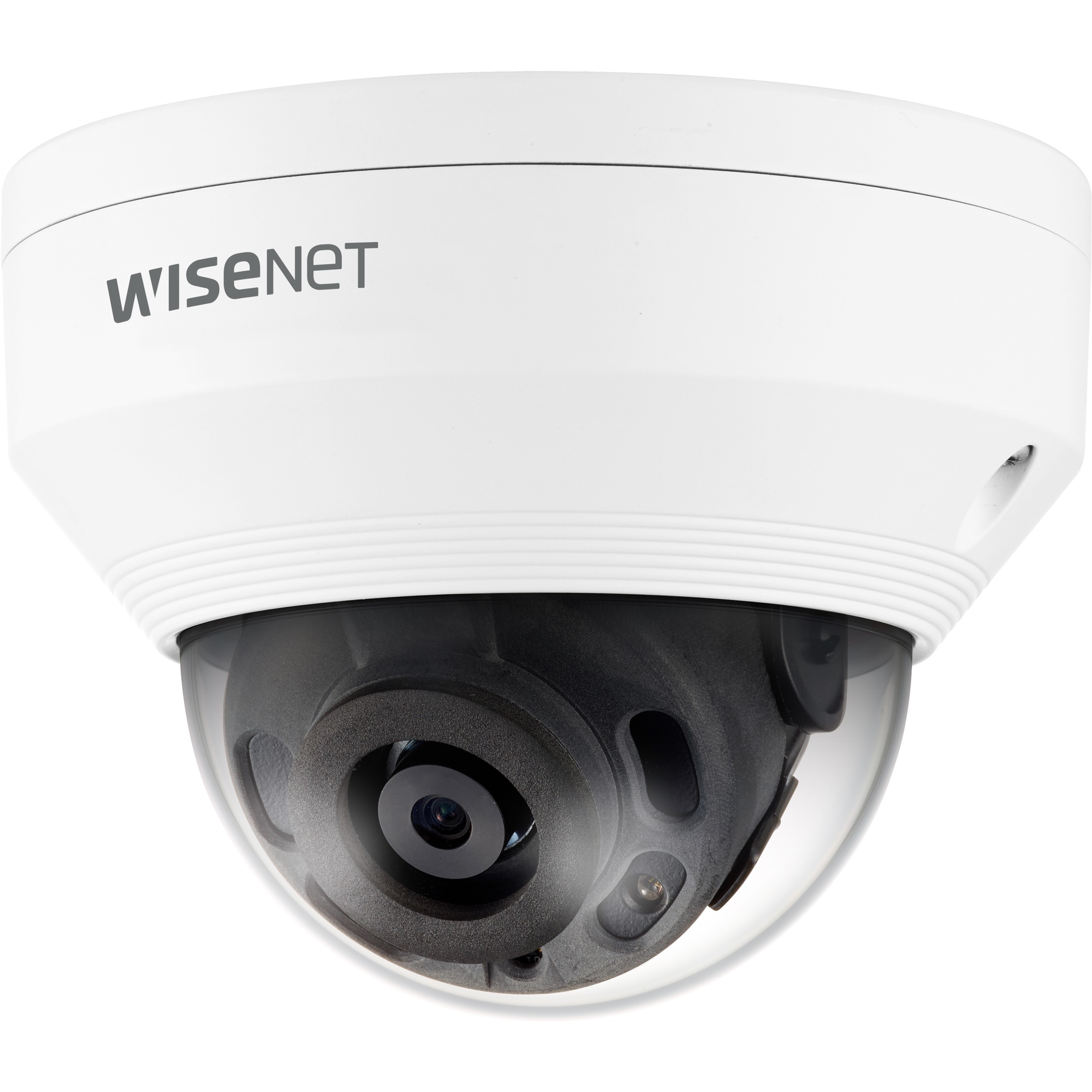

HANWHA TECHWIN QNV-8020R Wisenet Q network outdoor vandal dome camera 5MP @ 30fps 4.0mm fixed focal lens (79 ) triple codec H.265/H.264/MJPEG with Wisestream II 120dB WDR IR LEDs range 82ft.
Mfg Part Number: QNV-8020R , Item #: 3650872
Image may not reflect the actual item.
Price: $311.96
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 26, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNV-8020R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNV-8020R |
| Product Name | 5MP Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 82.02 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 79.8°/ V : 58.1°/ D : 105.9° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Mount Type | Ceiling Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Height | 3.6" |
| Diameter | 4.7" |
| Weight (Approximate) | 1.12 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC) |
| Features | Wide Dynamic Range |
| Features | Day/Night |
| Features | SD Card Local Storage |
| Features | Built-in IR LED |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
Mounting Kits
HANWHA TECHWIN
(SBP-122HMW)
Cap adaptor for the (QND-8080R/6082R QNV-8010R/20R/30R QNV-6012R/22R/32R) white color
Cap adaptor for the (QND-8080R/6082R QNV-8010R/20R/30R QNV-6012R/22R/32R) white color
$37.00
