| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QND-6082R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QND-6082R |

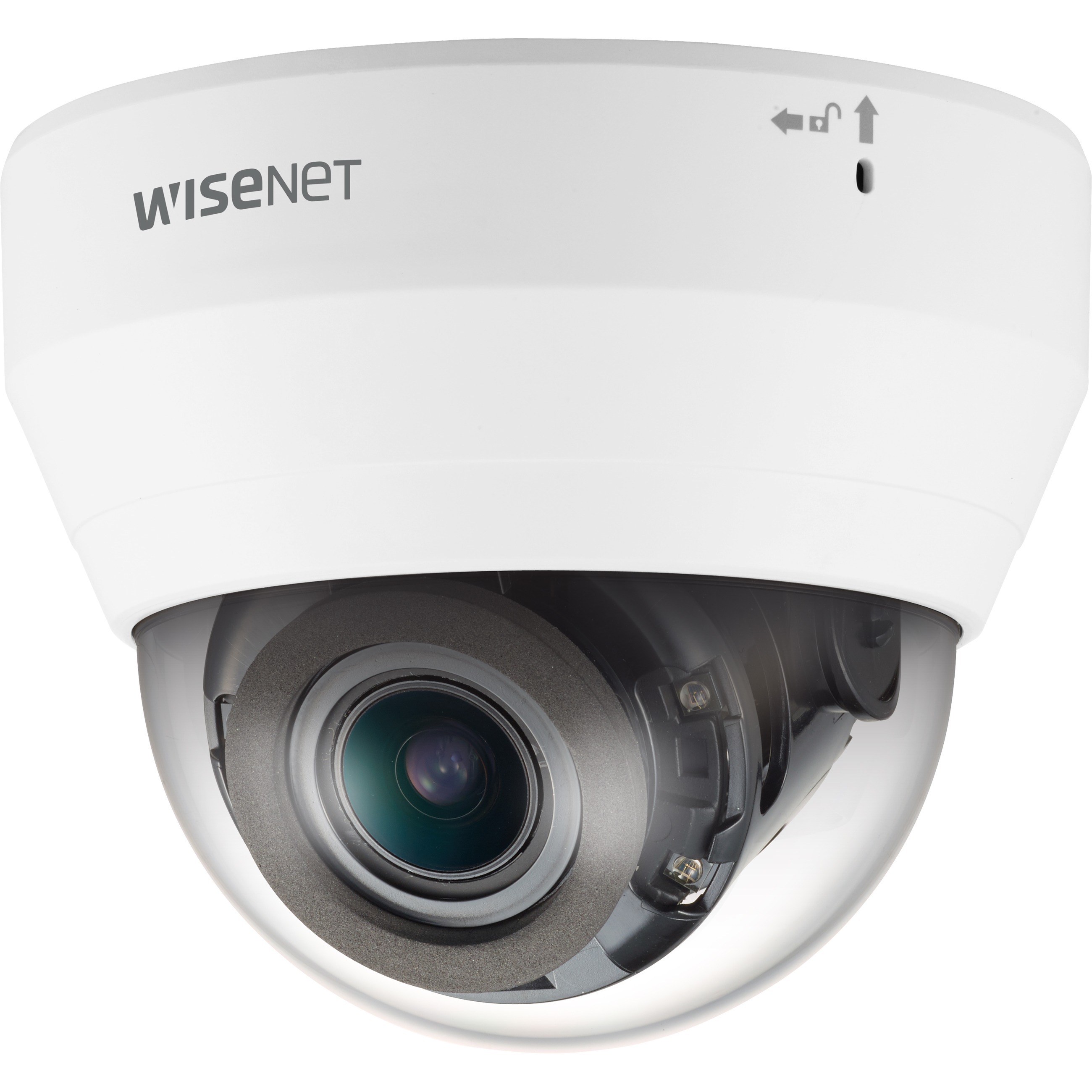

| Product Name | 2MP Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Field of View | H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.20 mm |
| Maximum Focal Length | 10 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Mount Type | Flush Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Height | 3.9" |
| Diameter | 4.7" |
| Weight (Approximate) | 11.29 oz |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Automatic White Balance |
| Features | Privacy Masking |
| Features | Back Light Compensation (BLC) |
| Features | Gain Control |
| Features | SD Card Local Storage |
| Features | Alarm Triggering |
| Features | Wide Dynamic Range |
| Features | Motion Detection |
| Features | Day/Night |
| NDAA Compliant | Yes |
