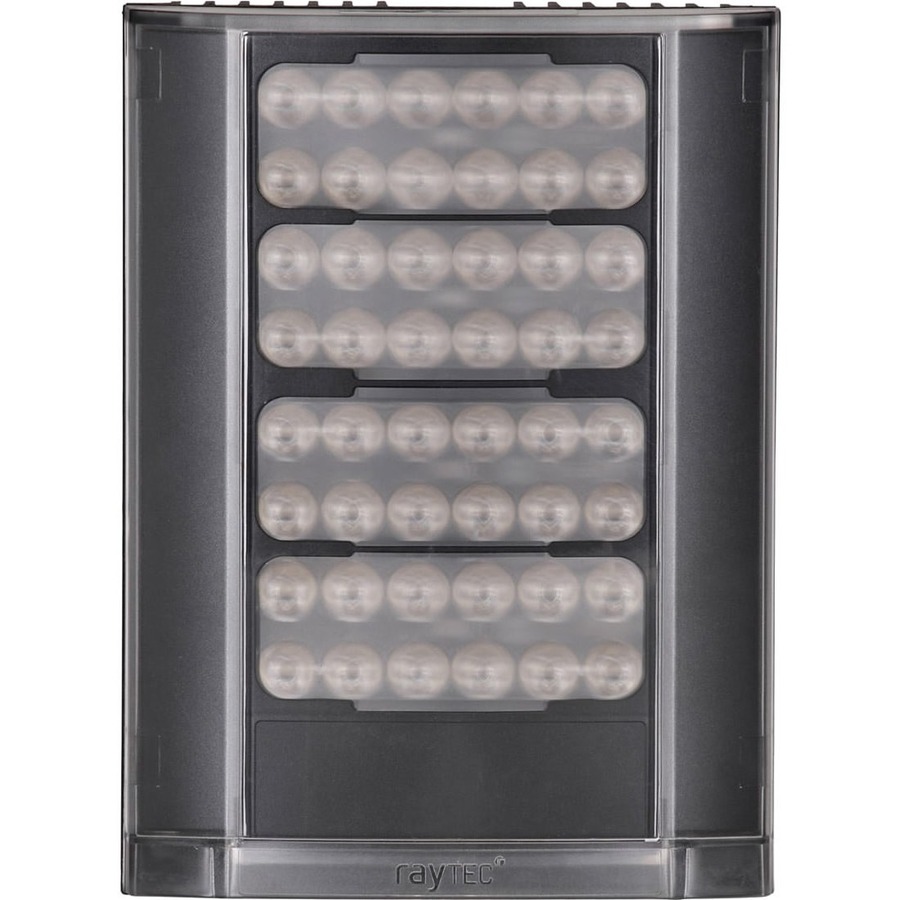

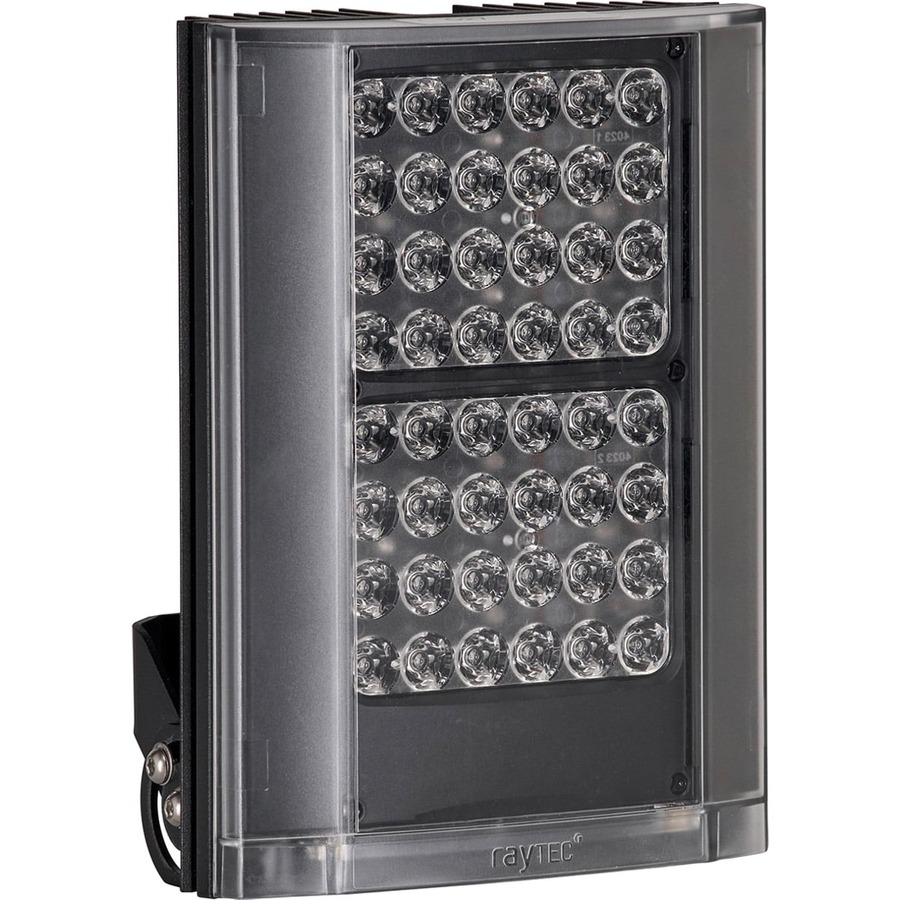

VARIO2 Hybrid illuminators use PLATINUM Elite twin-core SMT LED technology to deliver all the performance of a stand alone Infra-Red and a stand alone White-Light illuminator in a single, fully integrated two-in-one solution.
The Infra-Red illumination can be used for general surveillance whilst the White-Light can be used as a deterrent, or to deliver additional scene information upon activation. Switching from Infra-Red to WhiteLight illumination on-demand is easy, via a volt free switch for external devices or alarm inputs. VARIO2 Hybrid allows the creation of smart lighting systems by using either Infra-Red or White-Light as and when needed.
VARIO2 Hybrid features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination, where it is most needed, for outstanding night-time images. With the optional hand-held remote control, VARIO2 Hybrid also makes installation and commissioning quicker, easier and safer.
The VARIO2 hy8 series delivers maximum distances up to 290m (951ft) IR & 144m (472ft) WL.
Main Specification
General Information |
Manufacturer |
Raytec, Ltd |
Manufacturer Part Number |
VAR2-HY16-1 |
Manufacturer Website Address |
http://www.rayteccctv.com |
Brand Name |
Raytec |
Product Line |
VARIO 2 |
Product Name |
VAR2-hy16-1 Long Range Hybrid Illuminator |
Product Type |
IR/White Light Illuminator |
Technical Information |
Device Supported |
Smart Light System |
Device Supported |
Lighting Control |
Device Supported |
Video Surveillance System |
Features |
Volt Free IR/WL switch |
Features |
Even Illumination |
Features |
LED Illumination |
Features |
Hot-spot Reduction Technology (HRT) |
Features |
2 in 1 Hybrid |
Features |
Green Technology |
Features |
LED Indicator |
Features |
Interchangeable Lens |
Features |
Platinum Elite Twin-Core SMT LED Technology |
Features |
Energy Saving |
Features |
Night Vision |
Features |
Automatic On/Off |
Physical Characteristics |
Product Color |
Black |
Height |
11" |
Width |
7" |
Depth |
2.9" |
Weight (Approximate) |
6.80 lb |
Miscellaneous |
Additional Information |
Illuminator: - Wavelength Infra-Red 850nm (940nm options available) White-Light
- Max Distance 450m (1476ft) 195m (640ft)
- Total Lumens n/a 5692lm per luminaire
- Colour Temp n/a 6000K~
- Colour Reproduction Index n/a >70
- Angle Standard pack includes 10 circular + 35 x 10 (fitted as standard) and 60 x 25 elliptical lenses Additional optional lenses: 80 x 30 and 120 x 50
- Input 24V DC
- Consumption 78W
- Number of LEDs 24 x Infra-Red, 24 x White-Light
- Temperature Range - 50° to +50°C (-58 to 122°F)
- Cable Length 2.5m
- Cable Specification Red/Black - Power, White/Yellow - Photocell following output, Orange/ Purple - Telemetry input
Integrated Command and Control Technology:
Integrated Standard Features: - In-built photocell for automatic on/off operation
- Photocell following output
- Telemetry input
- LED status indicator provides status on performance of the unit
Advanced Features (accessed via VARIO remote control): - Power adjust from 20-100%
- Photocell sensitivity adjust
- Timer function (up to 30 mins)
- Telemetry control
- LED status indicator on/off
- Restore factory default settings
- Disable programming mode
|
Application/Usage |
Surveillance |
Certifications & Standards |
IP66 |
Country of Origin |
United Kingdom |
