RARITAN

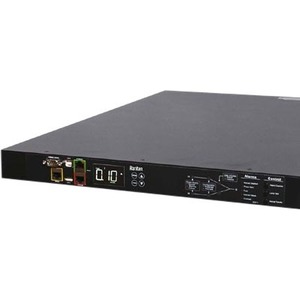

RARITAN PX3TS-1464JR 1PH 200V AC 30A 16XC13 4XC19 NEMA L6-30P 6.0KVA 2U
Mfg Part Number: PX3TS-1464JR , Item #: 3641031
Image may not reflect the actual item.
Price: $2,976.87
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 16, 2025
No Sales Tax except these states
, PO and Wire.
MOST COST-EFFECTIVE AND RELIABLE LOAD TRANSFER SWITCH
Raritan's hybrid rack transfer switches use electromechanical relays and silicon controlled rectifiers (SCRs) to transfer a load between two sources. The result is performance and reliability that exceeds that of standard automatic transfer switches (ATS) and at a lower price point than static transfer switches (STS).
iX7 Controller with Xerus Technology
All features of the iX7™ controller are embedded in your hybrid transfer switch, allowing the most advanced management options and peripheral control. The iX7 controller delivers more redundant power with power sharing, Gigabit Ethernet, and dual networking to create a more reliable switch. Operating with Xerus Firmware enables users to configure, monitor, control, and create alerts to improve day-to-day data center operations.
EXTENDED FUNCTIONALITY
Raritan's hybrid rack transfer switches use electromechanical relays and silicon controlled rectifiers (SCRs) to transfer a load between two sources. The result is performance and reliability that exceeds that of standard automatic transfer switches (ATS) and at a lower price point than static transfer switches (STS).
iX7 Controller with Xerus Technology
All features of the iX7™ controller are embedded in your hybrid transfer switch, allowing the most advanced management options and peripheral control. The iX7 controller delivers more redundant power with power sharing, Gigabit Ethernet, and dual networking to create a more reliable switch. Operating with Xerus Firmware enables users to configure, monitor, control, and create alerts to improve day-to-day data center operations.
EXTENDED FUNCTIONALITY
- Xerus Firmware with scripting, Modbus, and SNMP
- User configurable thresholds for power quality
- Alarm and status updates via GSM text, email and syslog
- Web-based configurable interface
- Hardened network security and encryption protocols: AES128, SSH, SNMPv3, Smart TLS, FIPS 140-2
- AC waveform monitoring
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3TS-1464JR |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Line | Intelligent |
| Product Name | Intelligent Rack Transfer Switch |
| Product Type | Hybrid Transfer Switch |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacles | 16 x IEC 60320 C13 |
| Receptacles | 4 x IEC 60320 C19 |
| Power Description | |
| Load Capacity (VA) | 6000 W |
| Input Voltage | 230 V AC |
| Current | 30 A |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Miscellaneous | |
| Additional Information |
|
| Country of Origin | Taiwan |
