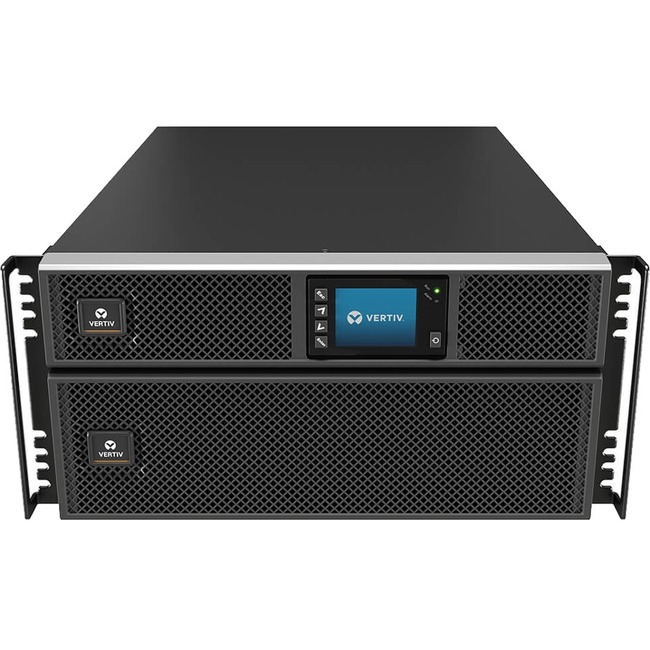

VERTIV GXT5-5000MVRT4UXLN Liebert GXT5 - UPS (rack-mountable / external) - 208 V - 5000 Watt - 5000 VA - 4U

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 5kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	GXT5-5000MVRT4UXLN
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	GXT
Product Name	GXT5 5000VA 208/120V UPS
Packaged Quantity	1
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Terminal Block
Receptacle Type	Hardwired
Bypass Switch	Automatic & Manual
Bypass Switch	Maintenance
Bypass Switch	Internal
Emergency Power OFF	Yes
Transfer Time	0 ns
Phase	Single Phase
Application/Usage	Mission Critical Equipment
Application/Usage	Data Center
Application/Usage	IT System
Power Description
Load Capacity (VA)	5000 VA
Load Capacity (Watt)	5000 W
Input Voltage	208 V AC
Output Voltage	208 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Waveform Type	Pure Sine Wave
User Selectable Output	208/120VAC
Utility (AC) Mode Overload	105% to 125% for 5 minutes 125% to 150% for 60 seconds >150% (impact load) minimum 200 ms
Controls/Indicators
Status Indicators	LED/Full Color Graphic LCD
Interfaces/Ports
Serial Port	Yes
VGA	No
Modem (RJ-11)	No
Network (RJ-45)	Yes
USB	Yes
Total Number of Expansion Slots	1
Battery Information
Battery Characteristics	Valve-regulated, Non-spillable, Flame-retardant
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	4.50 Minute
Backup/Run Time (Half Load)	12.50 Minute
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	12.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	33 Minute
Hot Swappable	Yes
Replaceable Battery	Yes
Environmental Conditions
Environmental Sensors	Temperature Sensor
Environmental Sensors	Humidity Sensor
Environmental Sensors	Leak Detection Sensor
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 104°F (40°C)
Maximum Operating Elevation	9842.52 ft
Physical Characteristics
Height	6.8"
Width	16.9"
Depth	25.6"
Rack Height	4U
Form Factor	Rack/Tower
Weight (Approximate)	125.60 lb
Miscellaneous
Package Contents	GXT5 5000VA 208/120V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual
Additional Information	Package Type: Natrual corrugated with single color silk screen Dataline Protection: No
Certifications & Standards	Surge Immunity: IEEE/ANSI C62.41 Category A & B Transportation: ISTA Procedure 1E Safety: UL1778, c-UL listed Emissions: FCC Part 15 (Class A)
Energy Star	Yes
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
