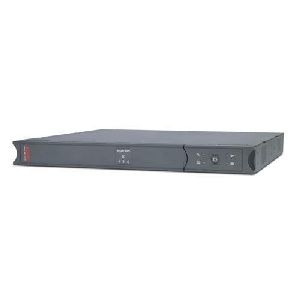

SC450RMI1U APC Smart-UPS SC 450VA Rackmount/Tower

Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SC450RMI1U
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	SC
Product Name	Smart-UPS SC 450VA Rackmount/Tower
Packaged Quantity	1 Each
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	IEC 320-C14
Receptacle Type	IEC 60320 C13
Receptacle Detail	4 x IEC 60320 C13
Receptacle Detail	2
Number of Battery & Surge Outlets	6
Dataline Protection	RJ-45
Dataline Protection	RJ-11
Emergency Power OFF	Optional
Power Description
Load Capacity (VA)	450 VA
Load Capacity (Watt)	280 W
Input Voltage	220 V AC
Output Voltage	230 V AC
Waveform Type	Stepped Sine Wave
Surge Energy Rating	320 J
Management
Alarm	On Battery
Alarm	Low Battery
Battery Management	Intelligent battery management
Controls/Indicators
Status Indicators	On Line On Battery Replace Battery Overload
Interfaces/Ports
Serial Port	Yes
Battery Information
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5.90 Minute
Backup/Run Time (Half Load)	19.40 Minute
Hot Swappable	Yes
Environmental Conditions
Maximum Operating Temperature	113°F (45°C)
Sound Emission (A-Weighted)	38 dB(A)
Thermal Dissipation	11.14 W
Physical Characteristics
Color Family	Gray
Product Color	Gray
Height	1.7"
Width	17"
Depth	15.1"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	22.40 lb
Miscellaneous
Package Contents	Smart-UPS SC 450VA Rackmount/Tower CD with software Rack mounting brackets Smart UPS signalling RS-232 cable User manual
Additional Information	Output Voltage Distortion: Less than 5% at full load Crest Factor: up to 5 : 1 Replacement battery cartridge quantity: 1 Units per Pallet: 24.00 Front-access servicing Multiple mounting methods Boost and Trim Automatic Voltage Regulation (AVR) Power conditioning Cold-start capable
Certifications & Standards	UL 1449 C-tick CE EN 50091-1 EN 50091-2 GOST PCBC VDE
Country of Origin	Philippines
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.

Main Specifications

Product Description	APC Smart-UPS SC 450VA - UPS - 450 VA
Device Type	UPS
Form Factor	Rack-mountable 1U
Dimensions (WxDxH)	17 in x 15.1 in x 1.7 in
Weight	22.5 lbs
Input Voltage	AC 230 V
Output Voltage	AC 230 V ± 5% ( 47 - 63 Hz )
Power Provided	450 VA
Output connector(s)	4 x power IEC 320 EN 60320 C13
Battery	- lead acid
Battery Form Factor	Plug-in module
Run Time (Up To)	5.9 min at full load
Networking	RS-232
Manufacturer Warranty	2 years warranty

General
Device Type	UPS
Form Factor	Rack-mountable
Battery Enclosure Type	Plug-in module
Height (Rack Units)	1U
Width	17 in
Depth	15.1 in
Height	1.7 in
Weight	22.5 lbs
Enclosure Color	Gray
Power Device
UPS Technology	Line interactive
Input Voltage	AC 230 V
Input Voltage Range	AC 160 - 286 V
Input Voltage Range (Adjustable)	AC 151 - 302 V
Frequency Required	50/60 Hz
Input Connector(s)	1 x power IEC 320 EN 60320 C14
Output Voltage	AC 230 V ± 5% ( 47 - 63 Hz )
Output connector(s)	4 x power IEC 320 EN 60320 C13
Power Provided	450 VA
Dataline Surge Protection	Network/phone line - RJ-45/RJ-11
Output Waveform	Stepped approximation to a sinewave
Surge Suppression	Standard
Energy Rating	320 Joules
Battery
Technology	Lead acid
Run Time (Up To)	5.9 min at full load
Networking
Remote Management Interface	RS-232
Expansion / Connectivity
Interfaces	1 x management - RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
Features	Audible alarm, LED display
Compliant Standards	CE, C-Tick, GOST, PCBC, VDE, EN 50091-2
Software / System Requirements
Software Included	Drivers & Utilities
Manufacturer Warranty
Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	0 - 95%
