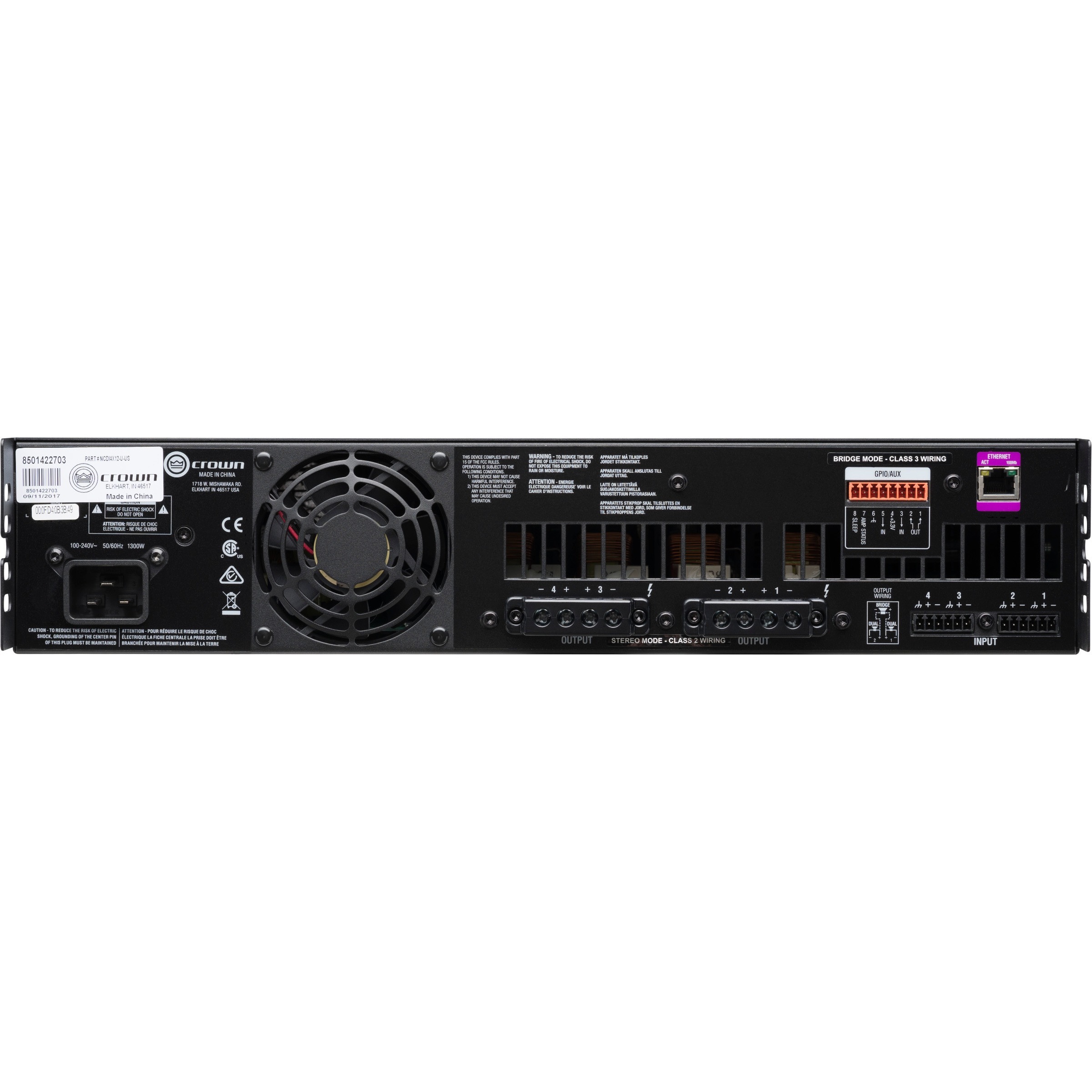

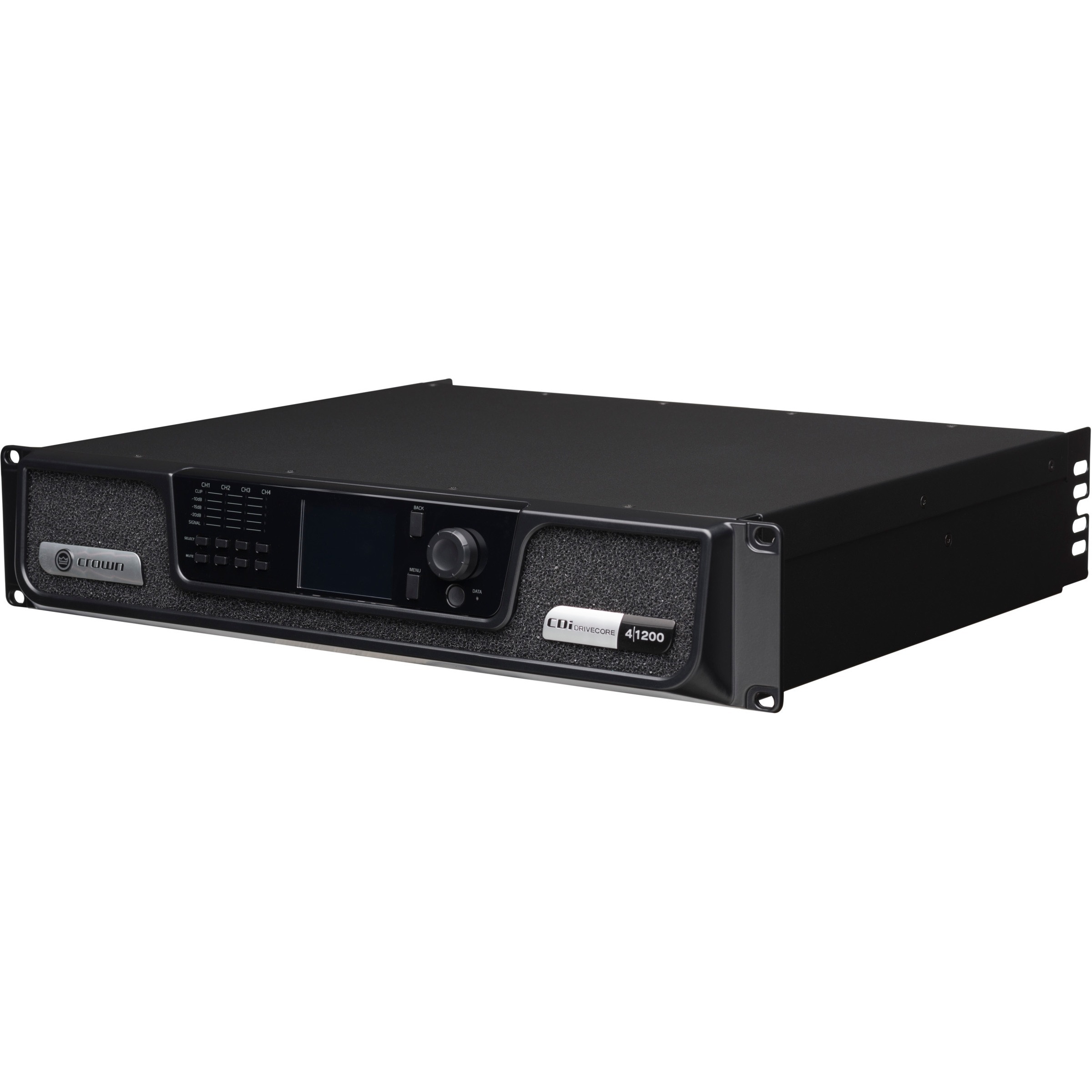

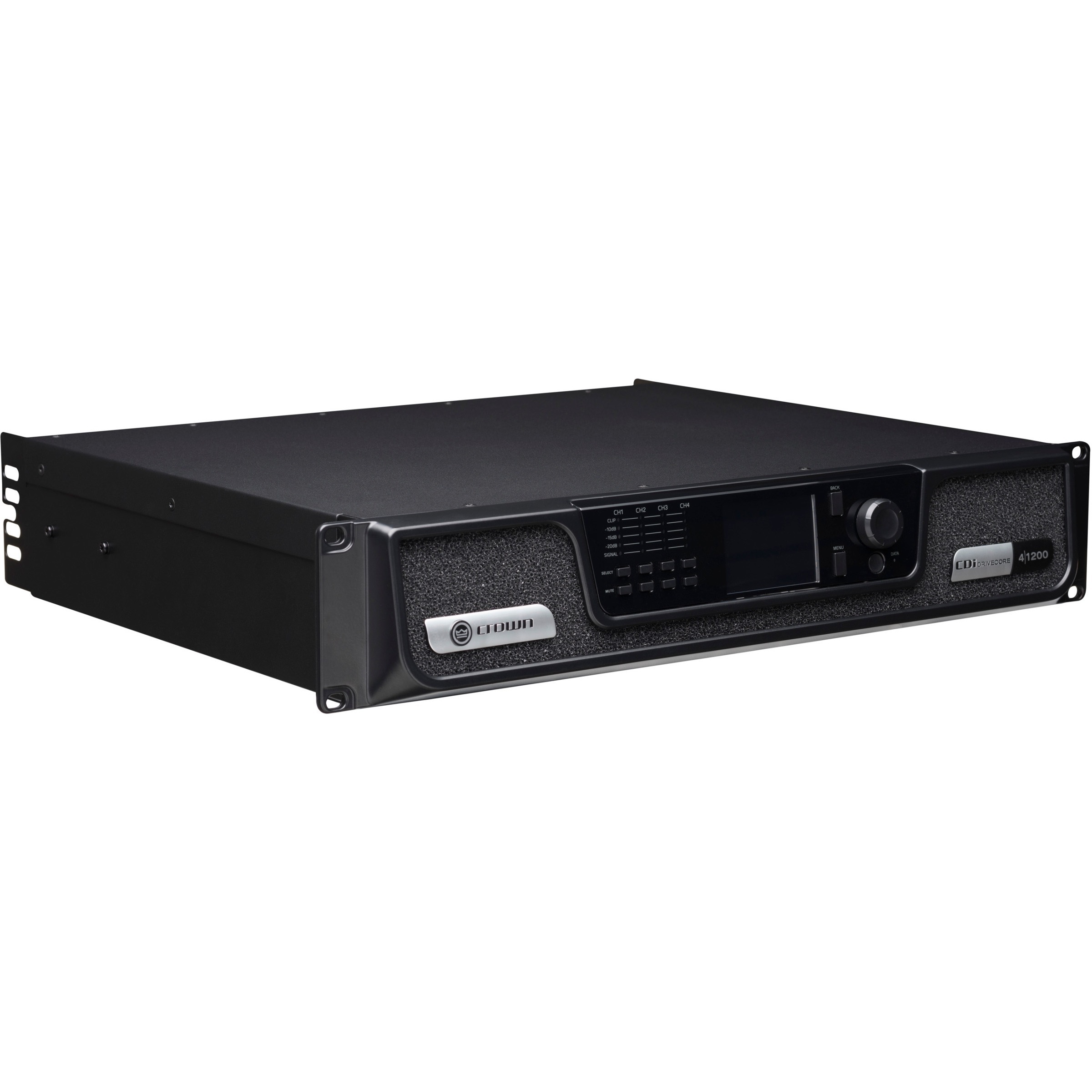

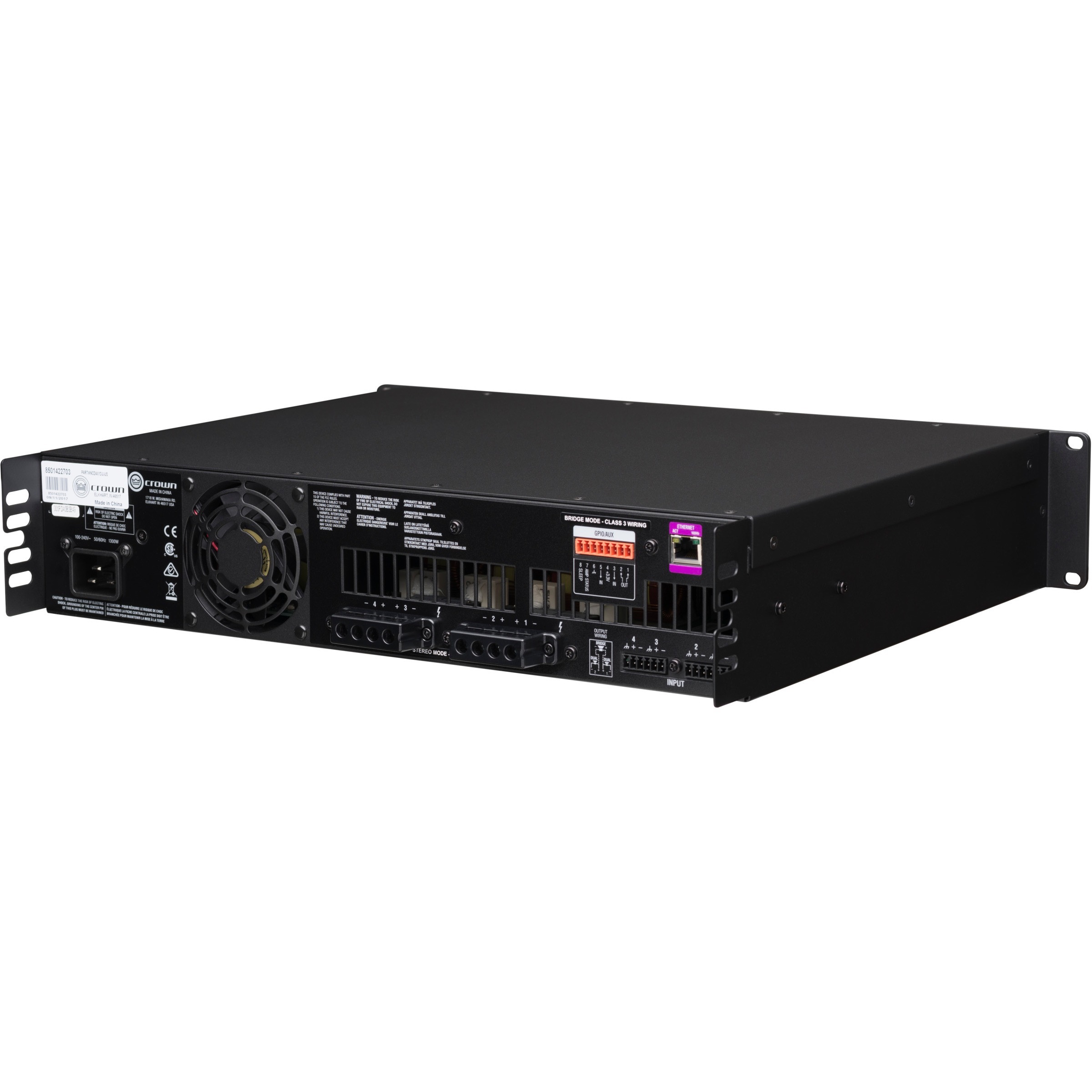

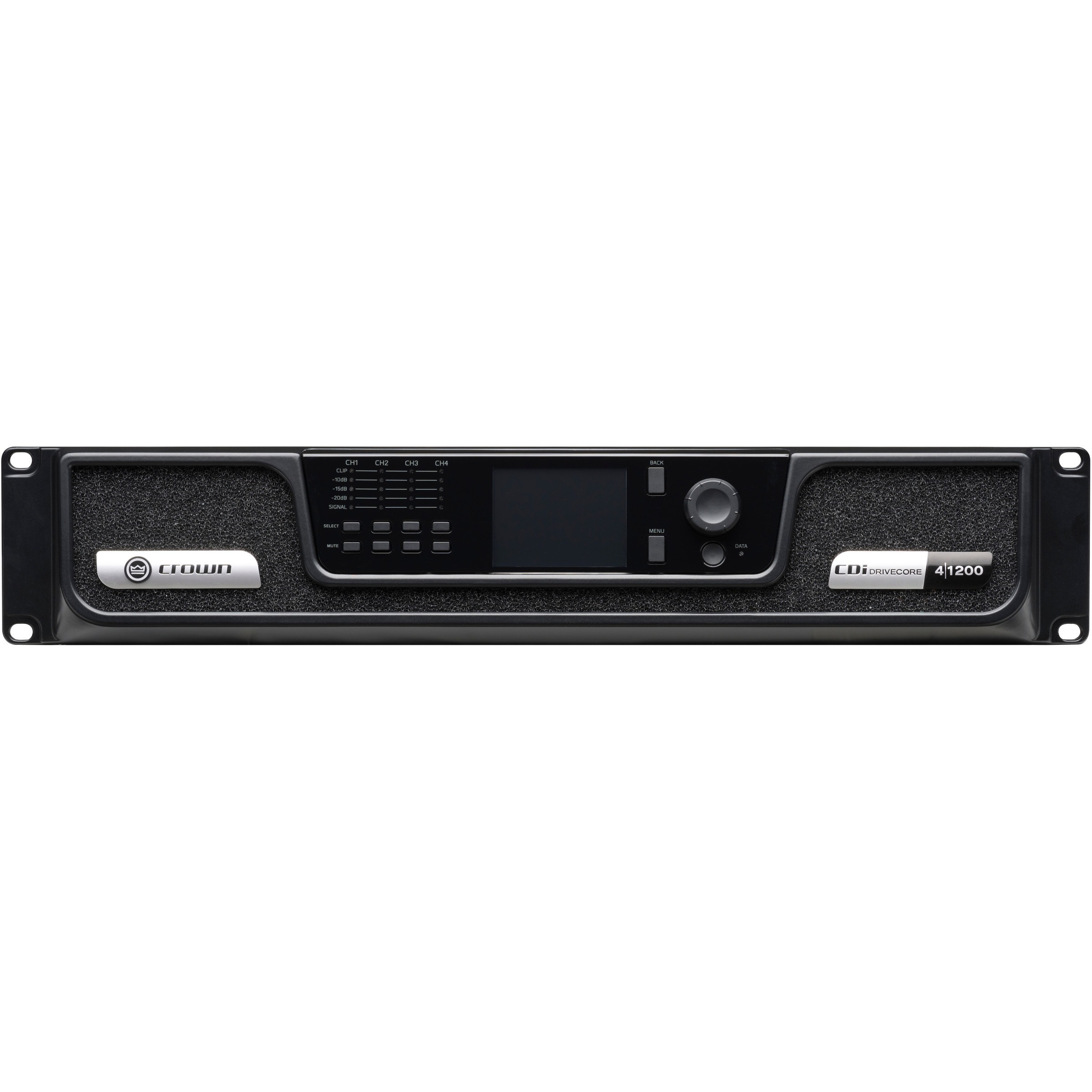

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
General Information | |
Manufacturer | Harman International Industries, Inc |
Manufacturer Part Number | NCDI4X12-U-US |
Manufacturer Website Address | http://www.harman.com |
Brand Name | Crown |
Product Line | CDi DriveCore |
Product Model | 4|1200 |
Product Name | CDi DriveCore 4|1200 Amplifier |
Product Type | Amplifier |
Technical Information | |
Minimum Frequency Response | 20 Hz |
Maximum Frequency Response | 20 kHz |
Total Harmonic Distortion (THD) | 0.4% |
Impedance | 4 Ohm |
Audio | |
Audio Channels | 4 |
RMS Output Power | 1200 W |
Network & Communication | |
Ethernet | Yes |
Power Description | |
Operating Power Consumption | 1300 W |
Physical Characteristics | |
Height | 3.5" |
Width | 19" |
Depth | 16" |
Weight (Approximate) | 20.11 lb |
Miscellaneous | |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
