ADVANTECH

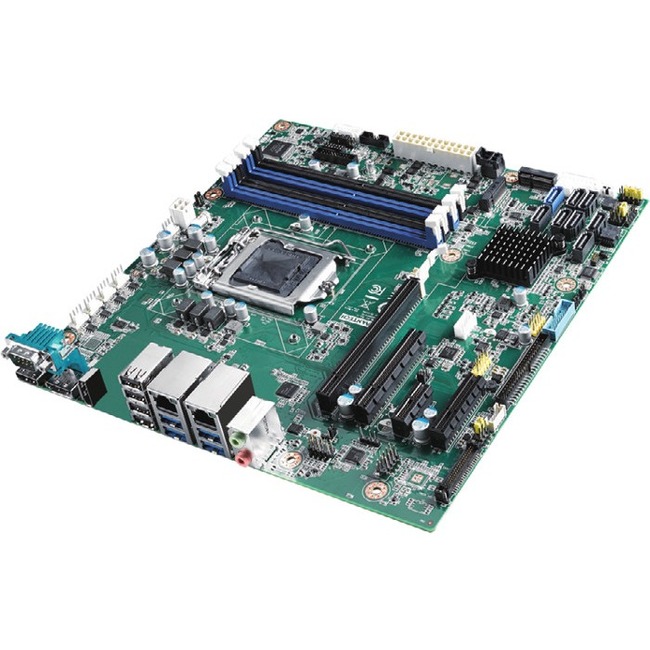

ADVANTECH AIMB-586QG2-00A1E Motherboard, LGA1151 mATX 2DP/HDMI/eDP/SATAIII/6COM/Quad LANs
Mfg Part Number: AIMB-586QG2-00A1E , Item #: 3596142
Image may not reflect the actual item.
Price: $567.86
Quantity:
In Stock: 26
In Stock: 26
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIMB-586QG2-00A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | AIMB-586 |
| Product Name | AIMB-586 Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q370 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i7 |
| Processor Supported | Core i3 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2400 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
