COMNET NW1DR Industrially Hardened High Throughput and Scalable Dual Radio Wireless Bridge 2GE Ethernet Ports 1 internal 19dBi 17 beam width directional antenna incl mounting assembly Port 1 Supports 802.3at PD PoE Power Port 2 provides IEEE802.3at PSE PoE Power
Mfg Part Number: NW1DR , Item #: 3591302
Image may not reflect the actual item.
Price: $1,410.33
Quantity:
More to Come
Last Updated: Jul 16, 2025
No Sales Tax except these states
, PO and Wire.

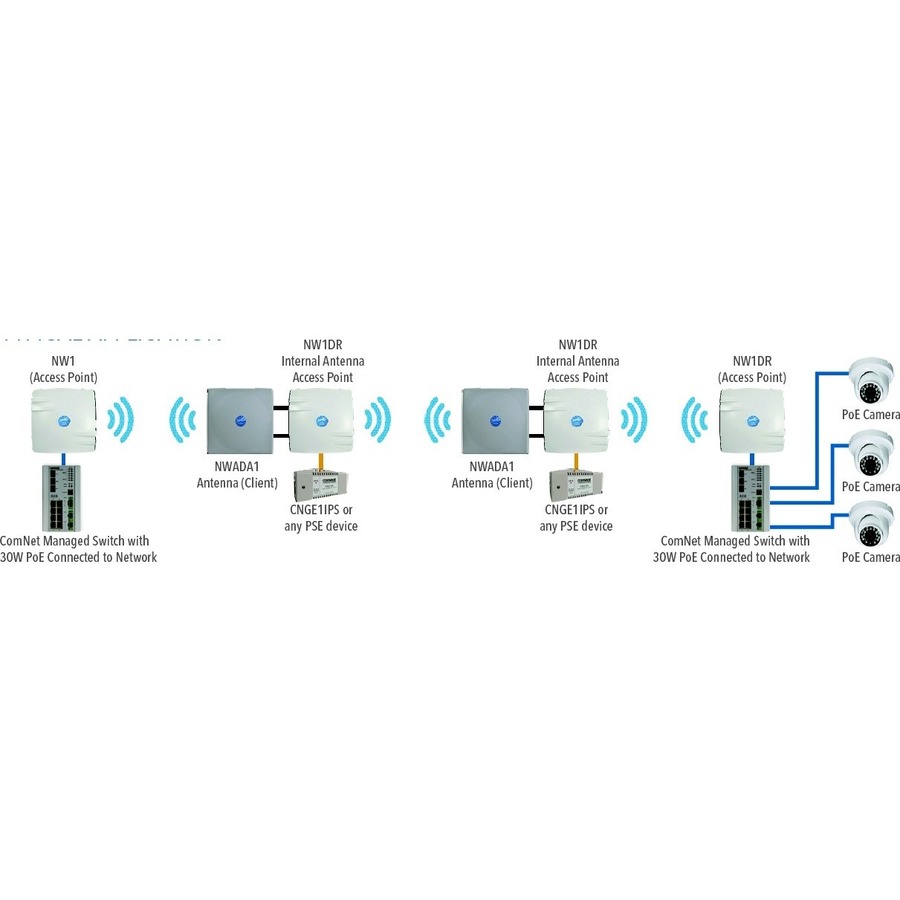

The NetWave® industrially hardened narrow bandwidth dual wireless radio is is used for redundant ring and drop & repeat topologies when used with an external antenna. Radio 1 is a 20 dBi 17° internal antenna while radio 2 has dual N-Female connectors for an external 5GHz antenna. The wide range of channel spectrum widths available on the NW1DR[IC] series of radios gives you the option of using wide channel widths for high throughput deployments that have little interference and noise while the narrow channel widths will increase the number of available non overlapping channels and improve stability in crowded RF environments but decrease maximum throughput. The NW1DR is FCC certified for use in North America. The NW1DRIC is IC certified for use in Canada.
Main Specification
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | NW1DR |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Line | NetWave |
| Product Model | NW1DR |
| Product Name | NetWave NW1DR Wireless Bridge |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11a/n |
| Frequency Band | 5 GHz |
| Number of External Antennas | 2 |
| Wireless Transmission Speed | 240 Mbit/s |
| Data Encryption | Yes |
| Encryption Standard | TKIP |
| Encryption Standard | WPA2 |
| Encryption Standard | AES |
| Interfaces/Ports | |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Power Description | |
| Power Consumption | 5 W |
| Physical Characteristics | |
| Form Factor | Pole-mountable |
| Form Factor | Wall Mountable |
| Height | 2.9" |
| Width | 10.6" |
| Depth | 10.6" |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
