LENOVO  Mfg Mini-Store

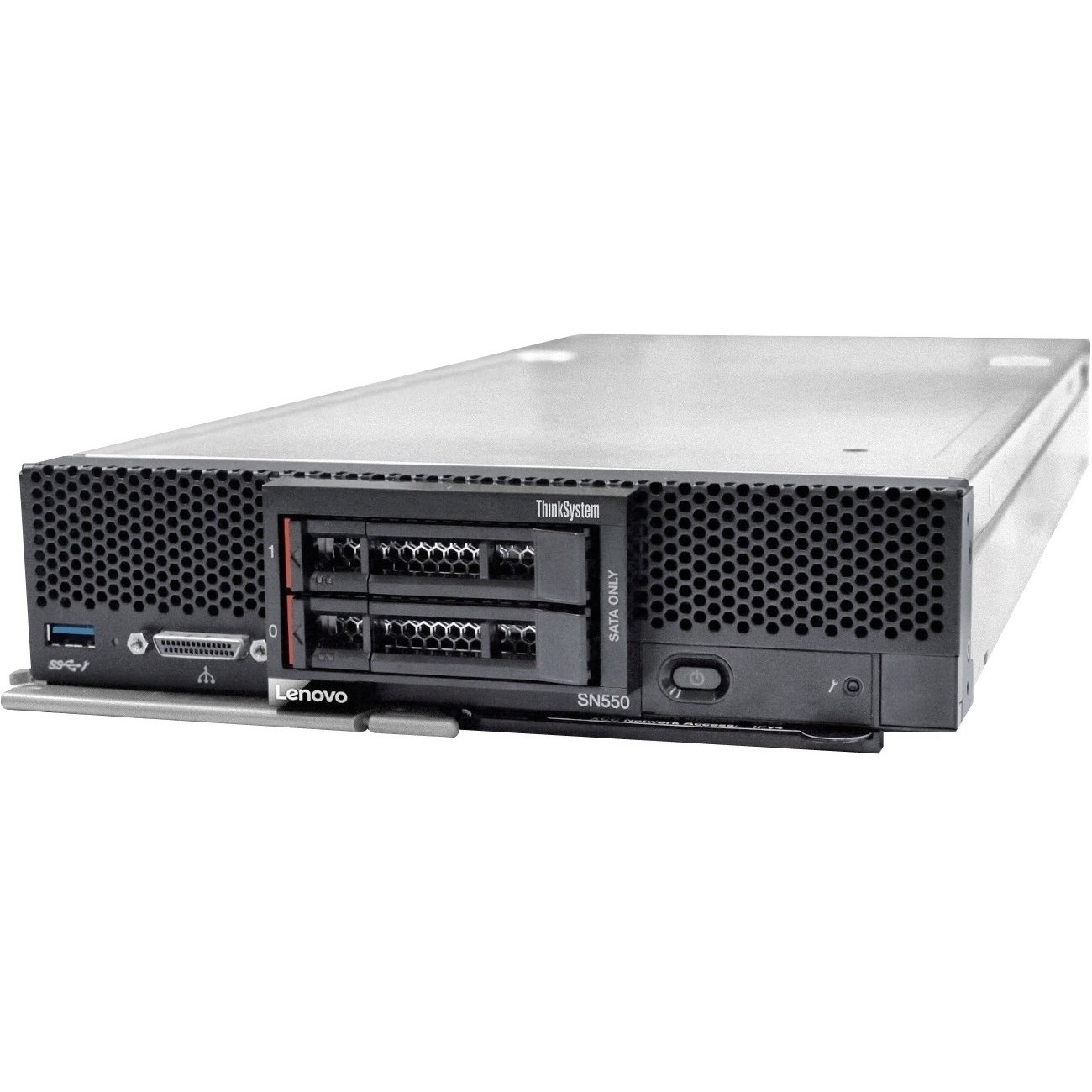

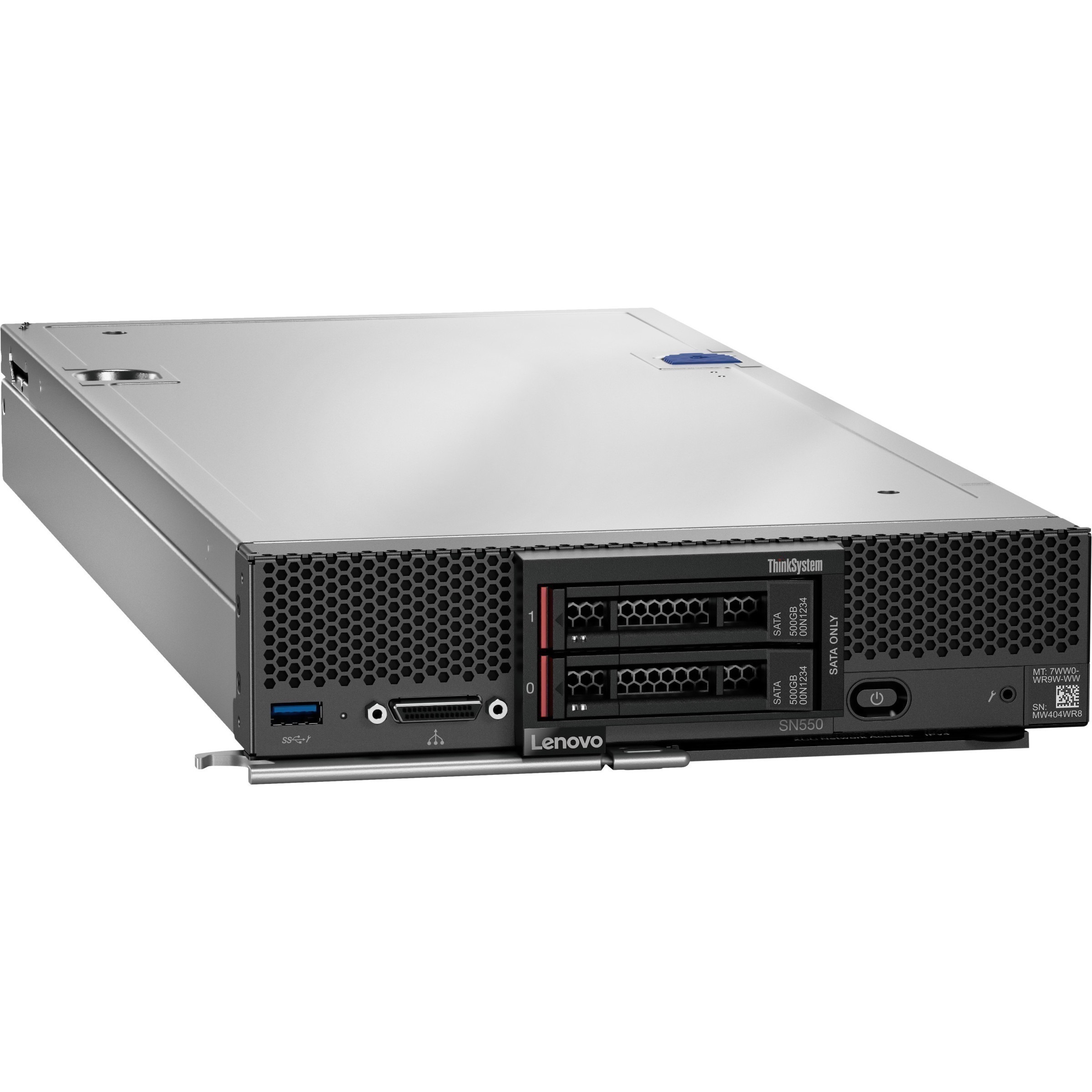

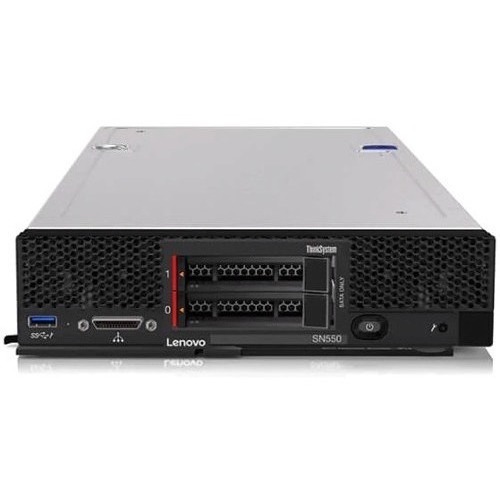

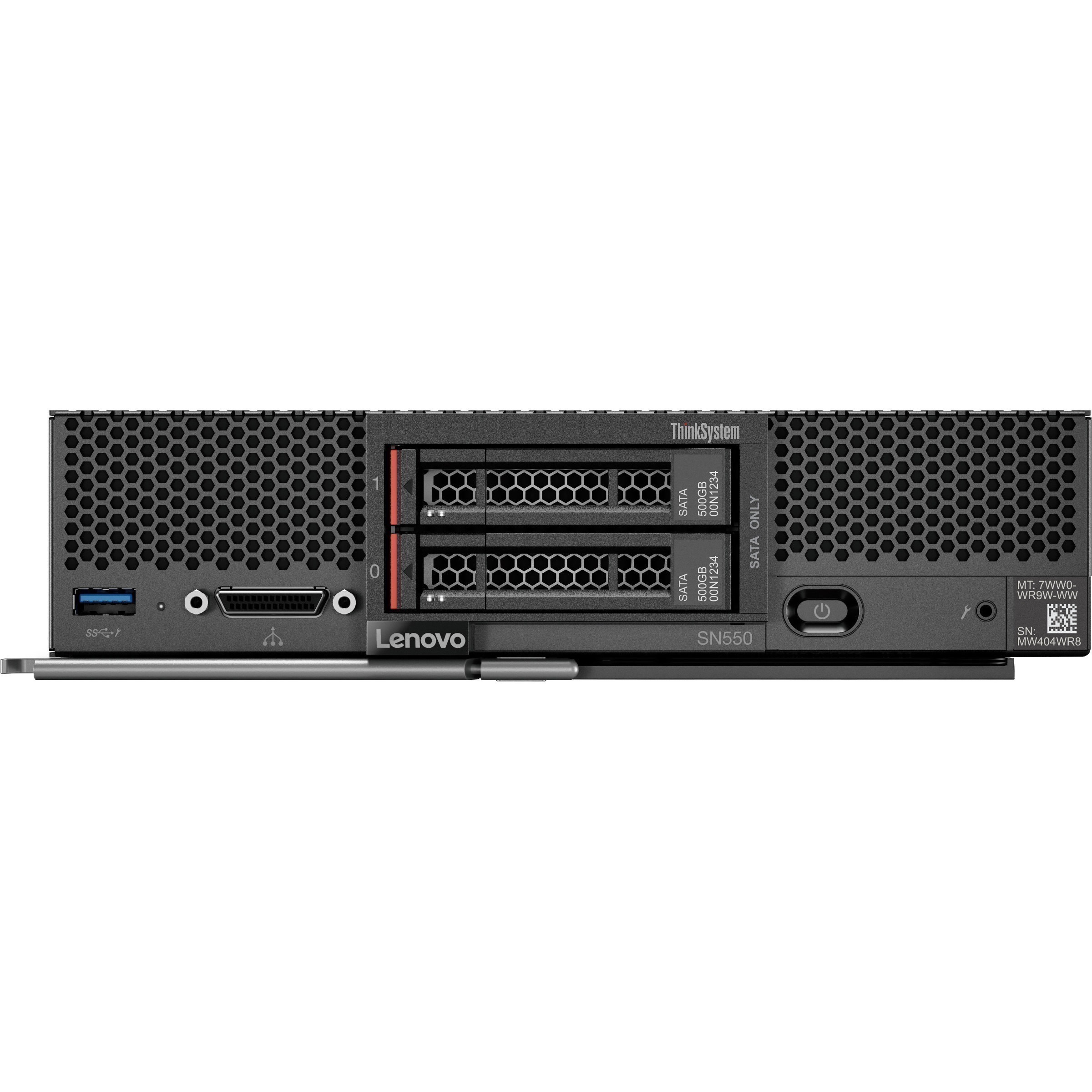

LENOVO 7X16A07BNA THINKSYSTEM SN550 4208 2X16GB

Mfg Part Number:  7X16A07BNA
Image may not reflect the actual item.
Price: $2,623.64 + Free Shipping
Quantity:
More to Come
Last Updated: Jan 24, 2026
No Sales Tax except these states
, PO and Wire.

The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server now supports the second-generation Intel Xeon Processor Scalable Family of processors.

Main Specification
General Information
Manufacturer Lenovo Group Limited
Manufacturer Part Number 7X16A07BNA
Manufacturer Website Address http://www.lenovo.com/us/en/
Brand Name Lenovo
Product Line ThinkSystem
Product Series SN550
Product Model 7X16A07BNA
Product Name ThinkSystem SN550 7X16A07BNA Server
Product Type Server
Processor
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon Silver
Processor Model 4208
Processor Core Octa-core (8 Core)
Processor Speed 2.10 GHz
Cache 11 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C624
Memory
Standard Memory 32 GB
Memory Technology TruDDR4
Memory Clock Speed 2.93 GHz
Error Checking ECC
Total Number of Memory Slots 24
Number of Occupied Memory Slots 2
Intel Optane Memory Ready Yes
Controllers
Controller Type Serial Attached SCSI (SAS)
Controller Type Serial ATA/600
Controller Model RSTe RAID
RAID Supported Yes
RAID Levels 0, 1
I/O Expansions
Number of Total Expansion Bays 2
Number of Media Drive Bays 2
Display & Graphics
Graphics Controller Model G200
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 1
Number of USB 3.0 Ports 1
Network (RJ-45) Yes
Operating System
Operating System Supported Red Hat Enterprise Linux 8.3
Operating System Supported Red Hat Enterprise Linux 7.8
Operating System Supported Red Hat Enterprise Linux 8.5
Operating System Supported SUSE Linux Enterprise Server 15 SP2
Operating System Supported Red Hat Enterprise Linux 8
Operating System Supported Windows Server 2022
Operating System Supported SUSE Linux Enterprise Server 15 SP1
Operating System Supported SUSE Linux Enterprise Server 12 SP4
Operating System Supported Red Hat Enterprise Linux 8.2
Operating System Supported Red Hat Enterprise Linux 8.1
Operating System Supported Windows Server 2019
Operating System Supported Windows Server 2016
Operating System Supported Red Hat Enterprise Linux 8.4
Operating System Supported SuSE Linux Enterprise Server 15
Operating System Supported SUSE Linux Enterprise Server 12 SP5
Operating System Supported Red Hat Enterprise Linux 7.6
Operating System Supported Red Hat Enterprise Linux 7.9
Operating System Supported Red Hat Enterprise Linux 7.7
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Physical Characteristics
Form Factor Blade
Height 2.2"
Width 8.5"
Depth 20"
Weight (Approximate) 15.65 lb
Miscellaneous
Package Contents
  • ThinkSystem SN550 7X16A07BNA Server
  • Documentation Flyer
Security Features
  • Administrator and power-on password
  • Trusted Platform Module (TPM) supporting both TPM 1.2 and TPM 2.0
  • Support for IBM Security Key Lifecycle Manager (SKLM)
Warranty
Limited Warranty 3 Year
