Elo TouchSystems
Elo TouchSystems E796382 0702L 7IN WIDE LCD DSKTOP PCAP 10TCH ANTI-G ZERO-B BLACK
Mfg Part Number: E796382 , Item #: 3586309
, PO and Wire.

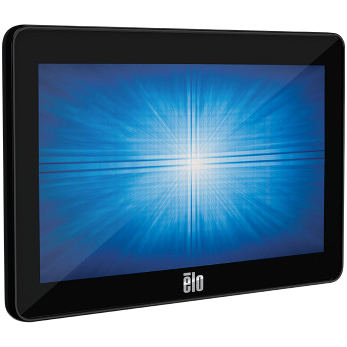

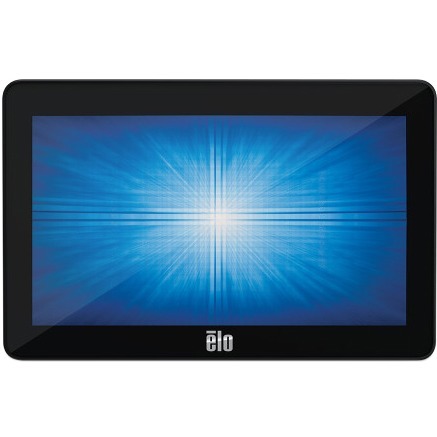

Elo's 0702L Touchscreen Monitor
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
DisplayLink technology supports Windows, Android and Linux operating systems.
Mount With Flexibility
Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.
Brilliant Displays from 7 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.
EloCareSM - We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E796382 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | 02 |
| Product Model | 0702L |
| Product Name | 0702L 7" Touchscreen Monitor |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 7" |
| Viewable Screen Size | 7" |
| Screen Mode | WVGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 25 ms |
| Response Time Details | 25ms Typical |
| Aspect Ratio | 5:3 |
| Horizontal Viewing Angle | 150° |
| Vertical Viewing Angle | 120° |
| Mount Type | Pole Mount |
| Mount Type | Shelf Mount |
| Mount Type | Wall Mountable |
| Backlight Technology | LED |
| Features | Anti-glare |
| Horizontal Frequency | 31.50 kHz |
| Vertical Frequency | 60 Hz |
| Video | |
| Maximum Resolution | 800 x 480 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 500:1 |
| Brightness | 500 Nit |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Power Description | |
| Operating Power Consumption | 3.70 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Color Family | Black |
| Product Color | Black |
| Height | 4.6" |
| Width | 7.1" |
| Depth | 0.7" |
| Weight (Approximate) | 12.32 oz |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
