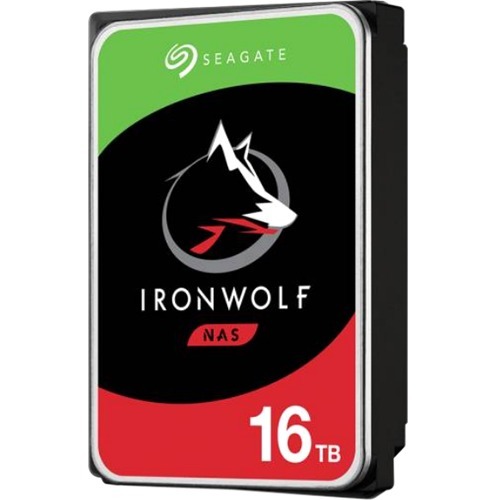

SEAGATE ST16000VN001 16TB IRONWOLF SATA 6GB/S 7.2K RPM 3.5IN

3.5 HDD DATA SHEET

The Power of Agility for Home, SOHO, and SMB NAS Enclosures

IronWolf™ is designed for everything NAS. Get used to tough, ready, and scalable 24×7 performance that can handle multi-drive environments across a wide range of capacities.

Key Advantages

Optimised for NAS with AgileArray.™ AgileArray enables dual-plane balancing and RAID optimisation in multi-bay environments, with the most advanced power management possible.

Actively protect your NAS with IronWolf Health Management focusing on prevention, intervention, and recovery.

High performance means no lag time or downtime for users during workload traffic for the NAS. Seagate leads the competition with the highest-performing NAS drive portfolio.

Rotational Vibration (RV) sensors. First in its class of drives to include RV sensors to maintain high performance in multi-drive NAS enclosures.

Range of capacities up to 16 TB. More capacity options means more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.

Do more in multi-user environments. IronWolf provides a workload rate of 180 TB/year. Multiple users can confidently upload and download data to the NAS server, knowing IronWolf can handle the workload, whether you are a creative professionalor a small business.

Designed for always-on, always-accessible 24×7 performance. Access data on your NAS any time, remotely or on site.

1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs.

General Information
Manufacturer	Seagate Technology
Manufacturer Part Number	ST16000VN001
Manufacturer Website Address	http://www.seagate.com
Brand Name	Seagate
Product Line	IronWolf
Product Model	ST16000VN001
Product Name	IronWolf ST16000VN001 Hard Drive
Product Type	Hard Drive
Technical Information
Storage Capacity	16 TB
Recording Technology	Conventional Magnetic Recording (CMR)
Features	Conventional Magnetic Recording (CMR)
Drive Performance
Spindle Speed (rpm)	7200
Buffer	256 MB
Network & Communication
Wireless LAN	No
Interfaces/Ports
Drive Interface	SATA
Drive Interface Standard	SATA/600
Power Description
Operating Power Consumption	7.30 W
Physical Characteristics
Drive Type	Internal
Form Factor	3.5"
Height	1"
Width	4"
Depth	5.8"
Weight (Approximate)	1.48 lb
Miscellaneous
Device Supported	Server
Device Supported	Storage System
Country of Origin	Thailand
Warranty
Limited Warranty	3 Year

Specifications

• Mfr Part Number: ST16000VN001
• Capacity: 16 TB
• Spindle Speed: 7200 RPM
• Cache: 256 MB
• Interface: SATA 6Gb/s

• Max Sustained Data Transfer Rate OD: 210 MB/s
• Shock:
  • Operating: 50Gs @ 2ms
  • Non-operating: 200Gs @ 2ms

• Acoustics:
  • Idle: 2.8 bels (typical)

  • Seek: 3.0 bels (typical)
• Power Management:
  • Startup Power, Typical: 12 V, 1.8 A
  • Average Operating Power: 7.3 W
  • Idle Power Average: 5.3 W

  • Standby Mode (Typical): 0.8 W
  • Sleep Mode (Typical): 0.8 W
• MTBF: 1,000,000 hours
• Dimensions (WxDxH): 4.010 x 5.787 x 1.028 inch / 101.85 x 146.99 x 26.11 mm
• Weight: 1.477 lbs / 670.0 g
