ALTRONIX

T1RAL3F8 ALTRONIX RACK / 8-DOOR SYS

Mfg Part Number:  T1RAL3F8
Image may not reflect the actual item.
Price: $1,048.41 + Free Shipping
Quantity:
More to Come
Last Updated: Aug 18, 2025
No Sales Tax except these states
, PO and Wire.

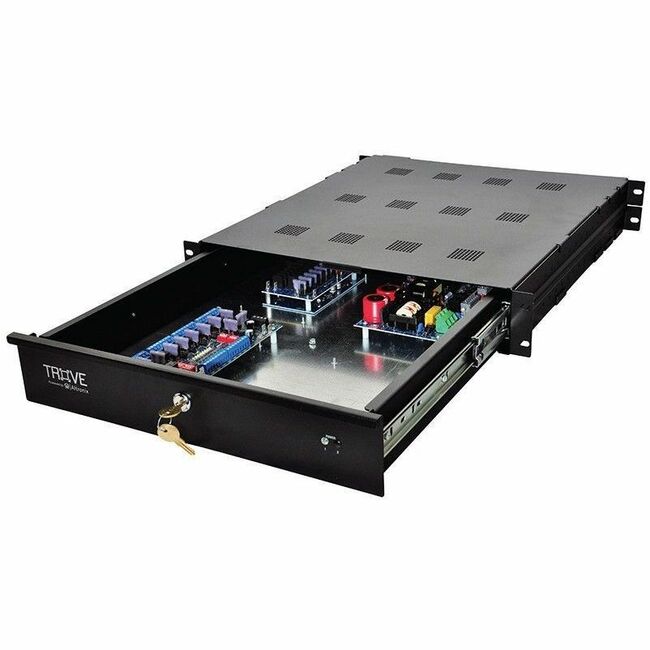

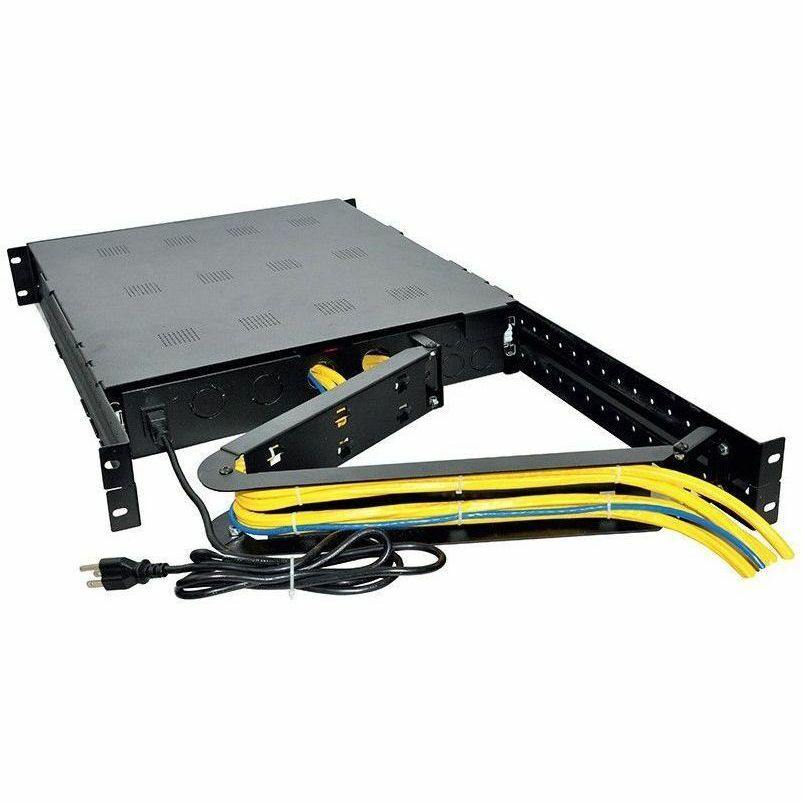

Altronix T1RAL3F8 rack kit is pre-assembled and consists of Trove1AL1R enclosure/backplane with factory installed Altronix power supply/ charger(s) and sub-assemblies.

Main Specification
General Information
Manufacturer Altronix Corporation
Manufacturer Part Number T1RAL3F8
Manufacturer Website Address http://www.altronix.com
Brand Name Altronix
Product Name Access/Power Integration Kit
Product Type Access/Power Integration Kit
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 120.2°F (49°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 158°F (70°C)
Physical Characteristics
Dimensions
  • Dimensions: 19"Wx3.25"Hx26.5"D(482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm)
Weight (Approximate)
  • Product Weight:20 Lbs.(9.07 kg).
Miscellaneous
Package Contents
  • 1 x Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
  • 1 x Dual Input Power Distribution Module, 8 Fused Outputs
  • 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
  • 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
  • 1 x Altronix Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin United States
Warranty
Limited Warranty Lifetime
product information
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
