TRIPP LITE
TRIPP LITE U444-06N-MDP-AL USB C MINI DISPLAYPORT ADAPT CONVERTER ALUMINUM 4K 3.1 M/F
Mfg Part Number: U444-06N-MDP-AL , Item #: 3567873
, PO and Wire.

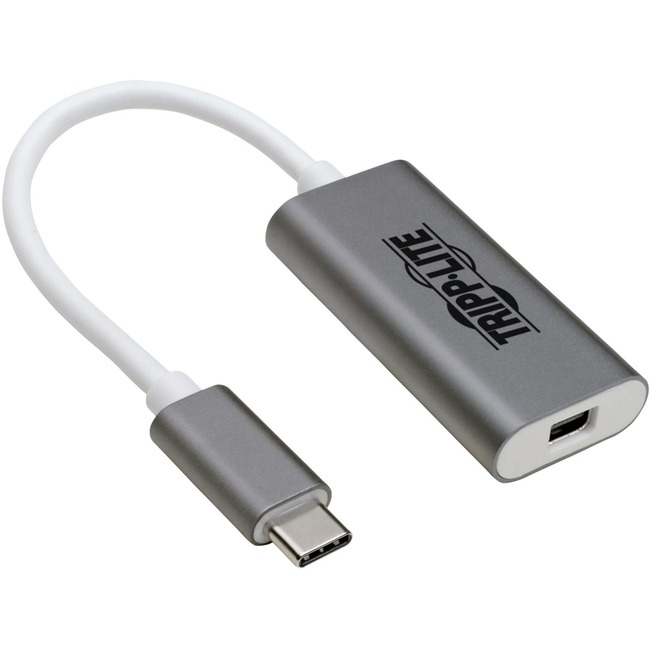

USB-C to Mini DisplayPort Adapter Connects to Your Laptop's USB-C or Thunderbolt 3 Port
This USB Type-C to Mini DisplayPort adapter connects a Mini DisplayPort (mDP) monitor to the USB-C or Thunderbolt 3 port on your computer, tablet, laptop, notebook, MacBook, Chromebook, Ultrabook or smartphone. It's an ideal connector for multitasking, presenting video at trade shows and conferences, editing documents, playing online games and watching movies on a larger screen. It saves you money by allowing you to use your existing mDP display instead of buying a new monitor.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio to a Mini DisplayPort Monitor
To send Ultra High Definition video and digital audio to an mDP television, projector or monitor, connect the mDP port to the display using an mDP cable (such as Tripp Lite's P584-Series, sold separately). The mDP port supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as well as 48-bit Deep Color (16 bits per channel). The USB-C to Mini DisplayPort cable transfers data at rapid USB 3.1 Gen 1 speeds up to 5 Gbps. It also supports 4:4:4, 4:2:2 and RGB chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Reversible USB-C Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play USB Type-C to Mini DisplayPort adapter requires no software or drivers to download and install. It's backward compatible with 1080p displays, so you can use it with legacy equipment. Just connect the USB-C plug to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode. The lightweight aluminum housing is about half the size of a credit card, so it fits comfortably into your laptop bag, purse or briefcase for connecting to mDP monitors anywhere.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U444-06N-MDP-AL |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Model | U444-06N-MDP-AL |
| Product Name | U444-06N-MDP-AL Mini DisplayPort/USB Audio/Video Adapter |
| Product Type | A/V Adapter |
| Technical Information | |
| Adapter Type | Mini DisplayPort/USB |
| Connector Type on First End | USB 3.1 Type C - Male |
| Connector on First End Details | 1 x Type C USB 3.1 USB Male |
| Connector Type on Second End | USB 3.1 Type C - Female |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Female |
| Connector on Second End Details | 1 x Mini DisplayPort DisplayPort 1.2 Digital Audio/Video Female |
| Connector on Second End Details | 1 x Type C USB 3.1 USB Female |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Maximum Resolution Supported | 3840 x 2160 |
| Features | Reversible |
| Features | HDCP 2.2 |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Silver |
| Product Color | White |
| Product Material | Aluminum |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Height | 0.4" |
| Width | 2" |
| Depth | 1" |
| Length | 6" |
| Weight (Approximate) | 1.06 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
