ALLIED TELESIS AT-GS920/8PS-10 8X10/100/1000T UNMANAGED POE+SW INTERNAL PSU FIXED AC PS US PWR CBL

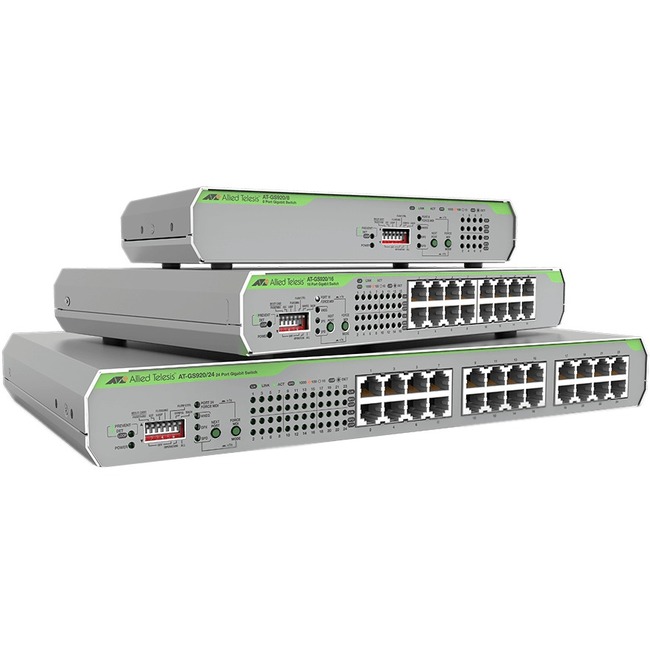

The Allied Telesis GS920 Series offers DIP Smart Gigabit switching solutions for the desktop and small networks. Front-panel DIP switches provide easy configuration of commonly-used features, without the need for a PC. DIP switches GS920 series switches provide port configuration for Speed/Duplex, Loop Detection and Flooding mode. The ability to set up the DIP switch without a PC saves money and time.

DIP switches

GS920 series switches provide port configuration for Speed/Duplex, Loop Detection and Flooding mode. The ability to set up the DIP switch without a PC saves money and time.

High performance

The GS920 Series delivers ultra-fast speed and high performance for today's high-bandwidth applications, such as video, graphics and industrial design, using Gigabit Ethernet.

Quality and reliability

Allied Telesis is a world leader in unmanaged Ethernet switches, and ships more than 250,000 unmanaged switches every year. Allied Telesis offers both proven reliability and industry-leading quality.

Speed/duplex configuration

The GS920 Series allows speed and duplex to be set on a per-port basis. This supports older devices where auto-negotiation is not supported, as well as embedded devices which may support a fixed speed/duplex only.

Loop detection

The Loop Detection feature discovers network loops, and shuts down affected ports. After the loop is resolved, affected ports are automatically returned to active use.

Flooding mode

Flooding mode allows the easy capture of data streams for troubleshooting and analysis, as they are sent to all ports.

Power over Ethernet (PoE)

The GS920/8PS supports PoE+ (IEEE 802.3at) and delivers up to 30W per port.

Private VLANs

Private VLANs isolate ports so that they can only communicate with the uplink port, and other ports in the same VLAN group. The GS920/8PS supports 3 different port groupings for flexible private VLAN deployment.

General Information
Manufacturer	Allied Telesis, Inc
Manufacturer Part Number	AT-GS920/8PS-10
Manufacturer Website Address	http://www.alliedtelesis.com
Brand Name	Allied Telesis
Product Line	CentreCOM
Product Series	GS920
Product Model	GS920/8PS
Product Name	8-port 10/100/1000T POE+ Unmanaged Switch with Internal PSU
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Uplink Port	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	No
Power Description
Power Source	Power Supply
Physical Characteristics
Form Factor	Rack-mountable
Form Factor	Desktop
Form Factor	Wall Mountable
Height	1.7"
Width	8.3"
Depth	10.8"
Weight (Approximate)	3.53 lb
Miscellaneous
Environmentally Friendly	Yes
Country of Origin	China
