STARTECH

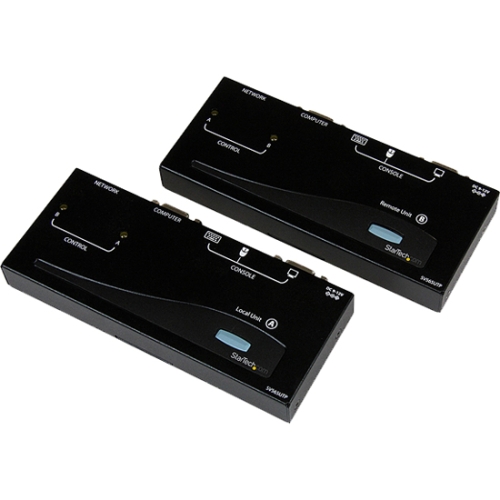

SV565UTP StarTech.com USB PS2 KVM Console Extender Cat5 Extender - 500 ft
Mfg Part Number: SV565UTP , Item #: 356509
Image may not reflect the actual item.
Price: $254.98
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 13, 2026
No Sales Tax except these states
, PO and Wire.
The SV565UTP USB PS2 KVM console extender lets you control a server, computer or multiple computers (connected through KVM switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. Use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. For added convenience, the Console/KVM extender supports both USB and PS/2 computer connections, and is compatible with any brand of KVM Switch. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer
Main Specification
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | PS/2 USB KVM Console Extender |
| Packaged Quantity | 1 Kit |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 500 ft |
| Video | |
| Graphic Mode | VGA |
| Maximum Video Resolution | 1024 x 768 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of VGA Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Number of PS/2 Ports | 4 |
| Power Description | |
| Input Voltage | 240 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 110V AC to 240V AC |
| Power Consumption | 5.40 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Transmitter Height | 0.80" |
| Transmitter Width | 6.10" |
| Transmitter Depth | 3" |
| Receiver Height | 0.80" |
| Receiver Width | 6.10" |
| Receiver Depth | 3" |
| Transmitter Weight (Approximate) | 1.35 lb |
| Receiver Weight (Approximate) | 1.35 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
| Main Specifications |
| Product Description | StarTech.com SV565UTP - KVM extender |
| Device Type | KVM extender |
| Enclosure Type | External |
| Max Transfer Distance | 490 ft |
| Manufacturer Warranty | 1 year warranty |
| General | |
| Device Type | KVM extender |
| Enclosure Type | External |
| Enclosure Color | Black |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 1024 x 768 |
| Max Transfer Distance | 490 ft |
| Expansion / Connectivity | |
| Interfaces | 1 x mouse - generic - 6 pin mini-DIN (PS/2
style) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x keyboard / video / mouse (KVM) - 15 pin HD D-Sub (HD-15) |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - parts and labor - 1 year - carry-in |
