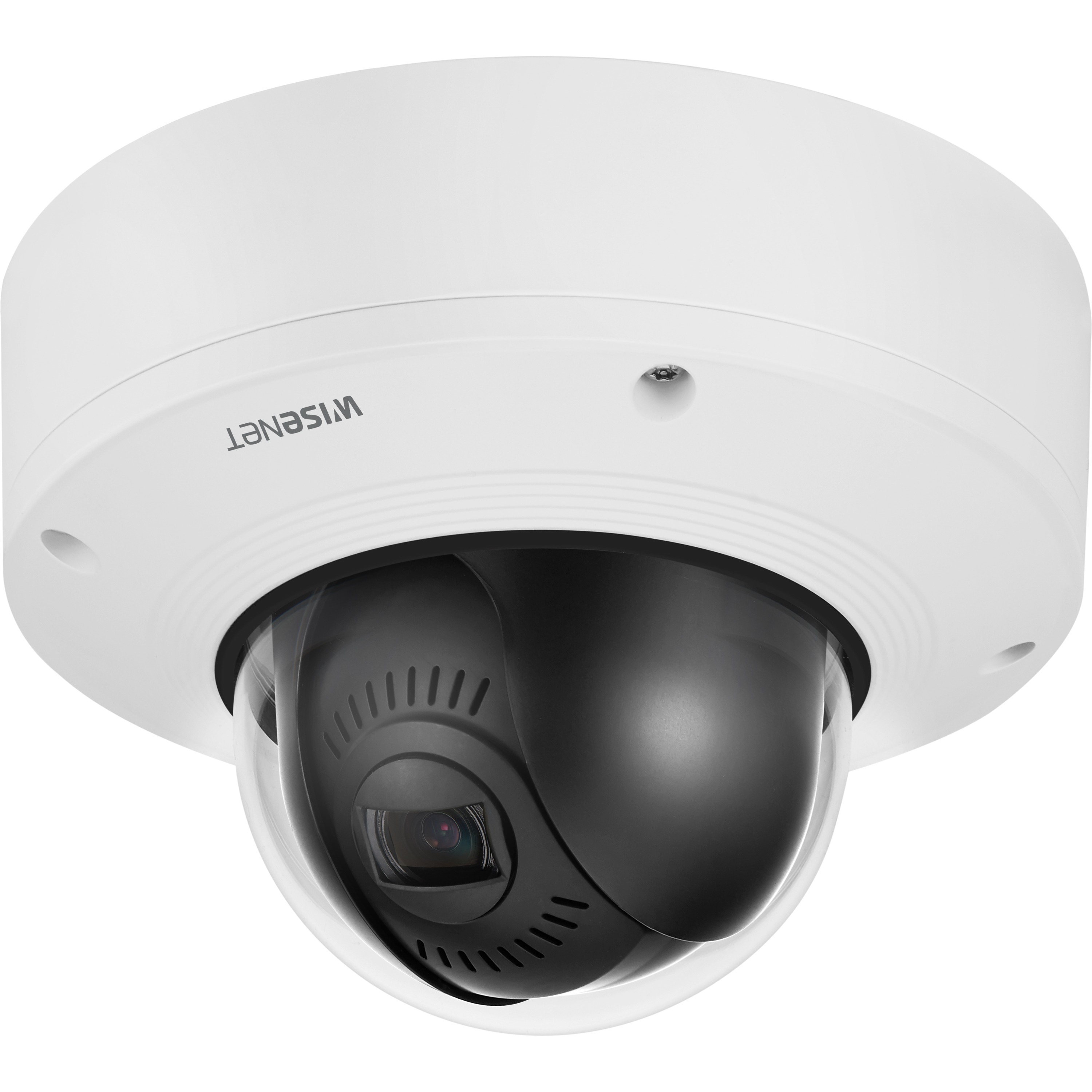

HANWHA TECHWIN XNV-6081Z Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera
Mfg Part Number: XNV-6081Z , Item #: 3564489
, PO and Wire.
The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 150dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV6081Z |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-6081Z |
| Product Name | 2MP Vandal-Resistant Outdoor Network Dome PTRZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Field of View | H : 119.5°(Wide)~27.9°(Tele) V : 62.8°(Wide)~15.7°(Tele) D : 142.1°(Wide)~32.0°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.80 mm |
| Maximum Focal Length | 12 mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.4 |
| Maximum Aperture | f/3.6 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Pole Mount |
| Mount Type | Pendant Mount |
| Mount Type | Parapet Mount |
| Mount Type | Gooseneck |
| Mount Type | Hanging Mount |
| Mount Type | Pipe Mount |
| Mount Type | Wall Mount |
| Mount Type | Corner Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Height | 4.9" |
| Width | 7.1" |
| Diameter | 7.1" |
| Weight (Approximate) | 3.86 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range |
| Features | Gain Control |
| Features | Back Light Compensation (BLC) |
| Features | SD Card Local Storage |
| Features | Digital Noise Reduction |
| Features | Motion Detection |
| Features | White Balance |
| Features | Defog |
| Features | Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP6K9K |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
Mounting Kits
PARAPET MOUNT ACCESSORY, COMPATIBLE WITH ALL FULL SIZE OUTDOOR PTZS AND ALL CAPS
