CISCO UCS-SP-C240M4-S1 NOT SOLD STANDALONE C240M4SX STD1 W/ 2XE5 2630 V3 8X16GB VIC1227
Mfg Part Number: UCS-SP-C240M4-S1 , Item #: 3550049
, PO and Wire.

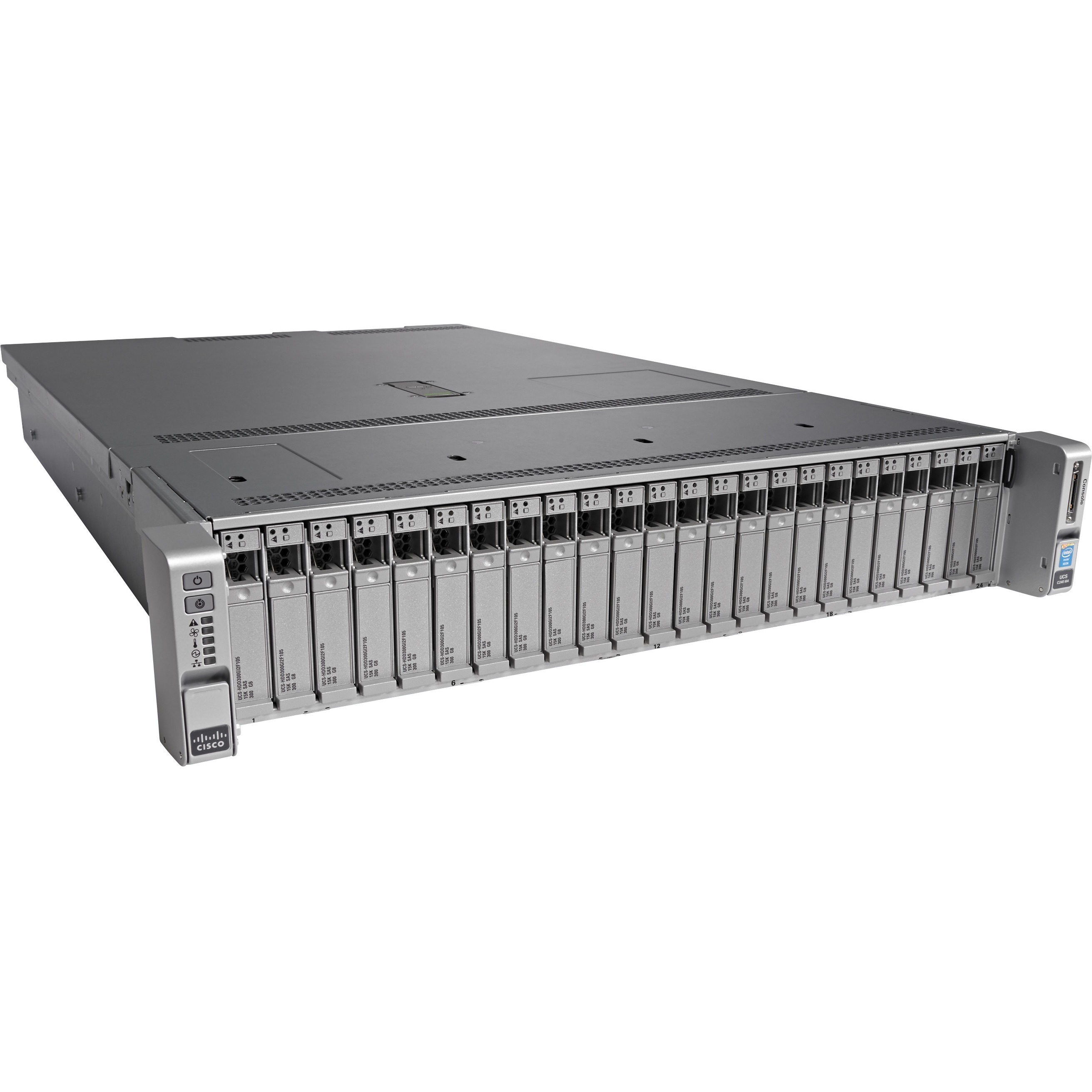

The UCS C240 M4 small form factor (SFF) server is the newest 2-socket, 2U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration.

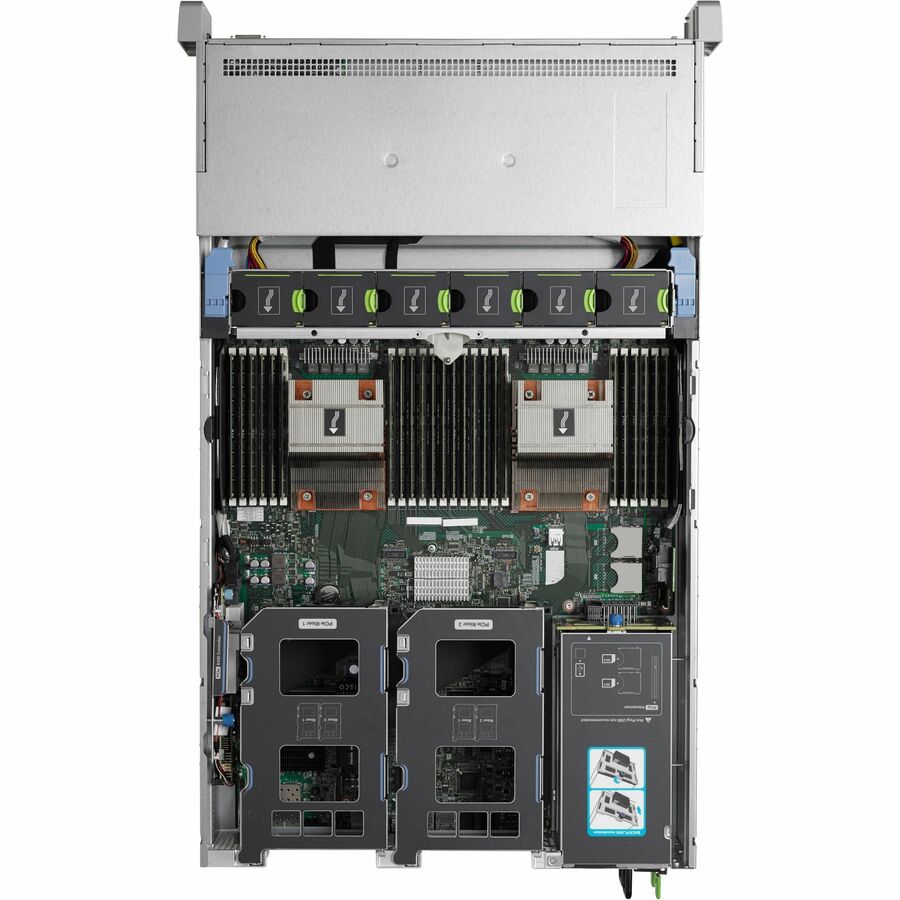

The enterprise-class UCS C240 M4 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon E5-2600 v3 and v4 series processor family that delivers the best combination of performance, flexibility, and efficiency gains. In addition, the UCS C240 M4 SFF server provides 24 DIMM slots, up to 6 PCI Express (PCIe) 3.0 slots, up to 24 front-loading drives plus two (optional) internal SATA boot drives for a total of 26 internal drives.

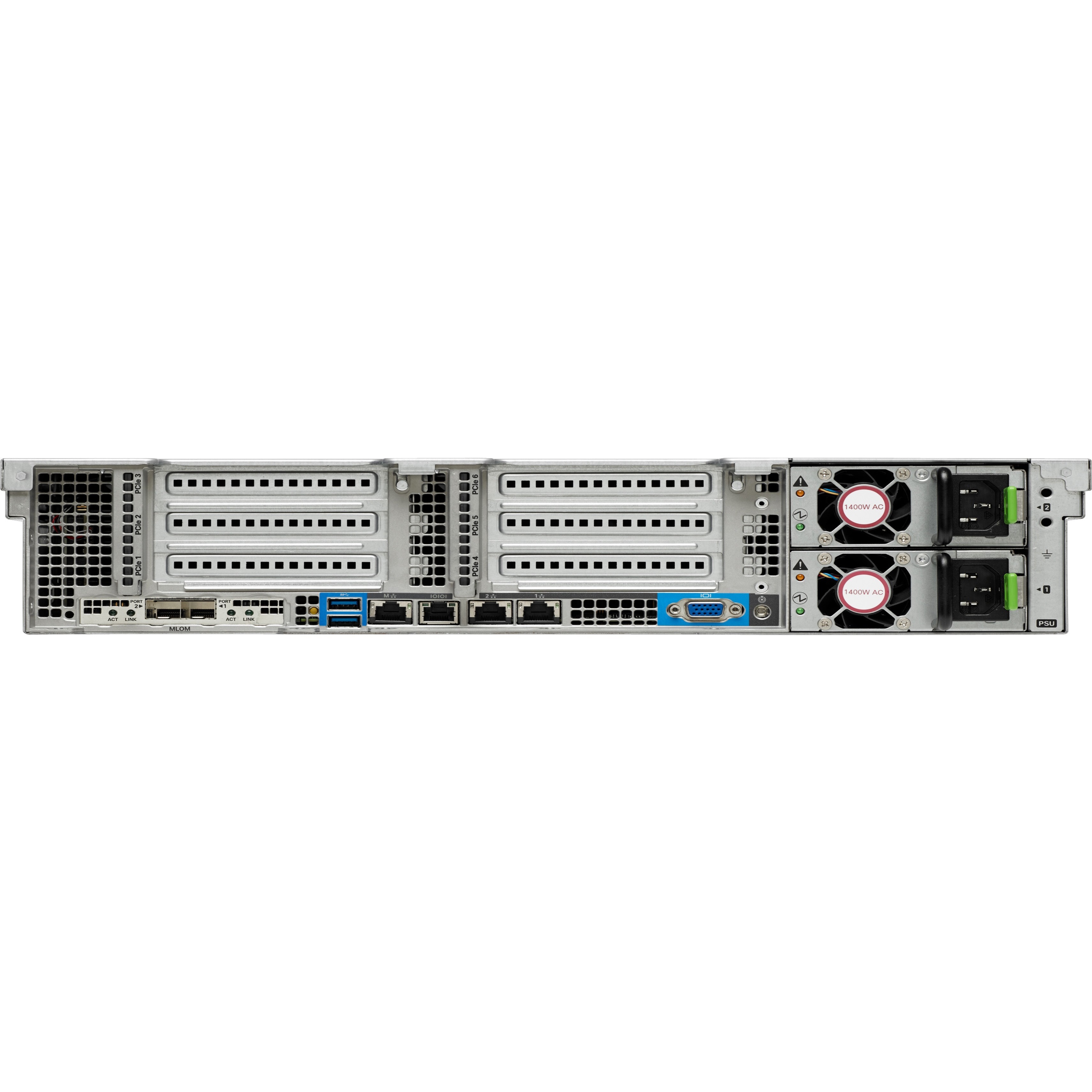

The C240 M4 server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.
The Cisco UCS C240 M4 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSSPC240M4S1 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | C240 M4 |
| Product Name | UCS C240 M4 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon |
| Processor Model | E5-2630 v3 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.40 GHz |
| Cache | 20 MB |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C610 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR4 SDRAM |
| Error Checking | ECC |
| Number of Occupied Memory Slots | 8 |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 6 |
| PCI Express Details | Up to six PCIe slots (on two riser cards) |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | Cisco Integrated Management Controller (CIMC) |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Supported | 2 |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Small Form Factor |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 19" |
| Depth | 30.2" |
| Weight (Approximate) | 62.61 lb |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
