SCYTHE

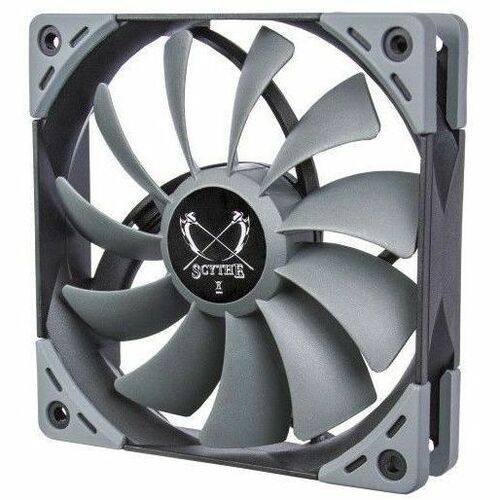

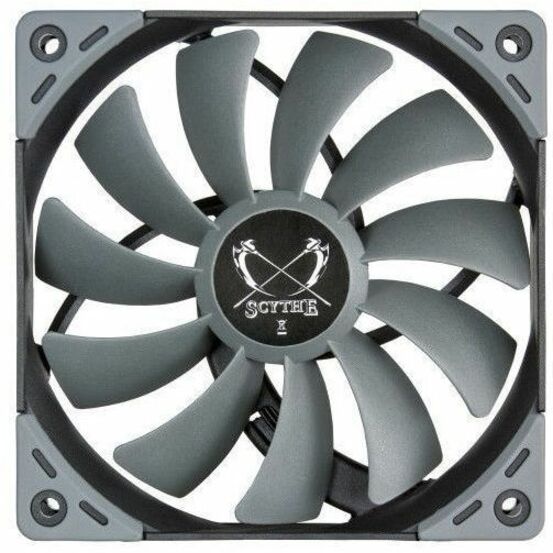

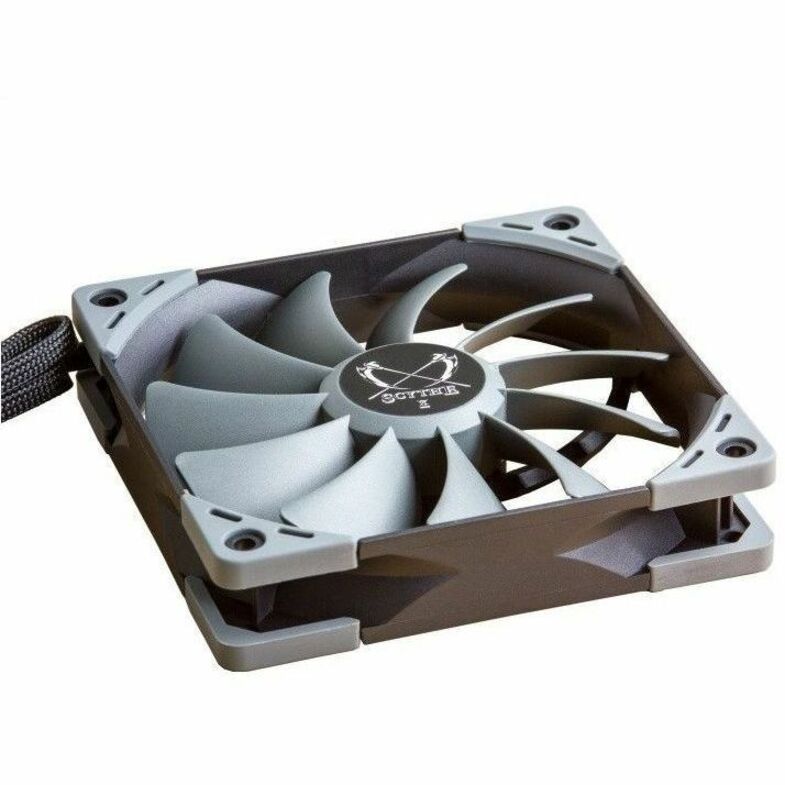

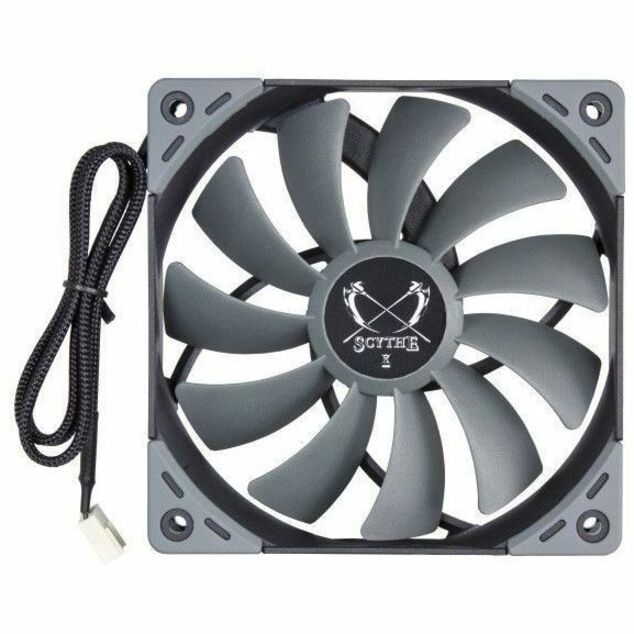

Scythe Kaze Flex 120 SU1225FD12H-RP 120mm Case Fan w/ 2000 RPM
Mfg Part Number: SU1225FD12H-RP , Item #: 3541552
, PO and Wire.
The newly developed Kaze Flex 120 fans use sealed fluid dynamic bearing (Sealed Precision FDB) that delivers great airflow at a low noise level and ensures a long life-span of more than 120,000 hours.
Superior Performance
With newly designed blade and frame, Kaze Flex 120 fan generates great performance for various applications. Optimized airflow/noise efficiency, the fan is ideal for case, heatsink and radiator.

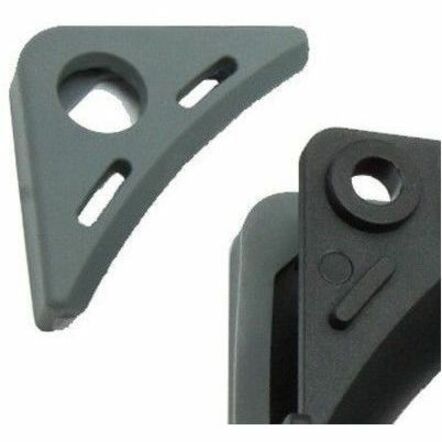

Anti Vibration Rubber
Equipped with Anti-Vibration rubber allowing low noise operation by abborting possible vibration transmission.
Sealed Precision FDB
With proprietary Fluid Dynamic Bearing, Kaze Flex 120 fan provides quiet cooling as well as long lifespan up to 120,000 hours. The bearing and pressure shaft are made of high-quality compressed metal, it is to guarantee minimum tolerance and excellent stability.
| General Information | |
| Manufacturer | Scythe Co., Ltd |
| Manufacturer Part Number | SU1225FD12H-RP |
| Manufacturer Website Address | http://www.scythe-usa.com |
| Brand Name | Scythe |
| Product Line | Kaze Flex 120 |
| Product Model | SU1225FD12H-RP |
| Product Name | Kaze Flex 120 SU1225FD12H-RP Cooling Fan |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Speed (Max) | 2000 rpm |
| Maximum Airflow | 89.04 CFM |
| Noise Levels (A-Weighted) | 38 dB(A) |
| Fan Life | 13.7 Year |
| Maximum Air Pressure | 2.99mmH2O |
| Interfaces/Ports | |
| Connectors | 3-pin |
| Power Description | |
| Rated Current | 460 mA |
| Physical Characteristics | |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 4.72" |
| Fan Width | 4.72" |
| Fan Depth | 1.06" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Radiator |
| Application/Usage | Case |
| Application/Usage | Heatsink |
