BLACK BOX

BLACK BOX VS-2001-ENC ENCODER - HDMI-OVER-IP H.264, 1-PORT, 45 DAY STANDARD RETURN POLICY

Mfg Part Number:  VS-2001-ENC
Image may not reflect the actual item.
Price: $582.57 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 14, 2025
No Sales Tax except these states
, PO and Wire.

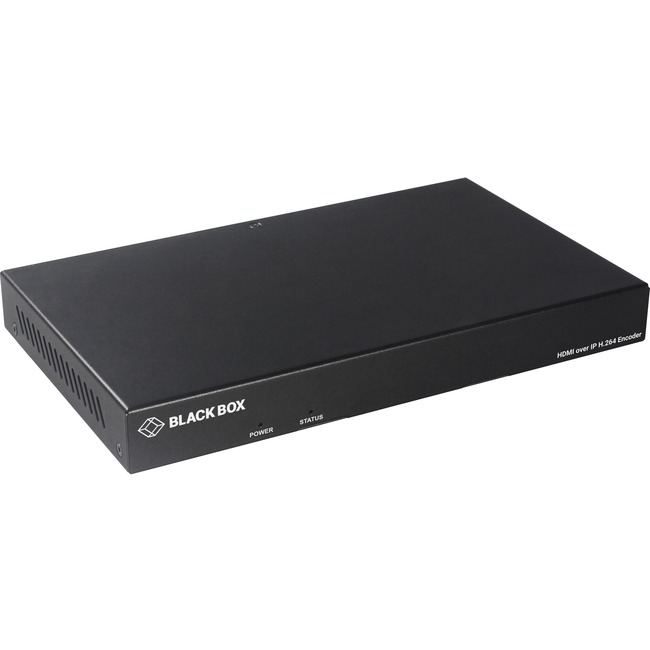

Live Stream Media over IP Extend AV signals as far as your network reaches. This media encoder interfaces with HDMI signals to deliver media over your IP network. It features one HDMI input and one Ethernet output for simplified integration into your AV system.

Standardized Protocols

This encoder complies with standardized and disclosure protocols so that it can work with third-party decoders, such as VLC software, STB, or a media encoder in another system. This allows you to choose the most suitable devices for your AV system.

Advanced Media Codec

The encoder features H.264 video compressing technology. This allows it to transmit video content with visually lossless quality without consuming too much bandwidth. On top of that, the encoder supports AAC audio encoding so a high-quality audio signal can be transmitted using low bandwidth.

Optimized Control Methods

This encoder offers two controlling approaches: web UI and Telnet API. The web UI enables the user to control the system through a common browser. The Telnet API allows the devices to be controlled by a third-party system.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number VS-2001-ENC
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Name HDMI-over-IP H.264 Encoder
Packaged Quantity 1
Product Type Video Encoder
Technical Information
Functions Video Streaming
Functions Video Compression
Functions Video Encoding
Maximum Resolution 3840 x 2160
Video Formats AVC
Video Formats TS
Video Formats H.264
Video Formats MPEG-4

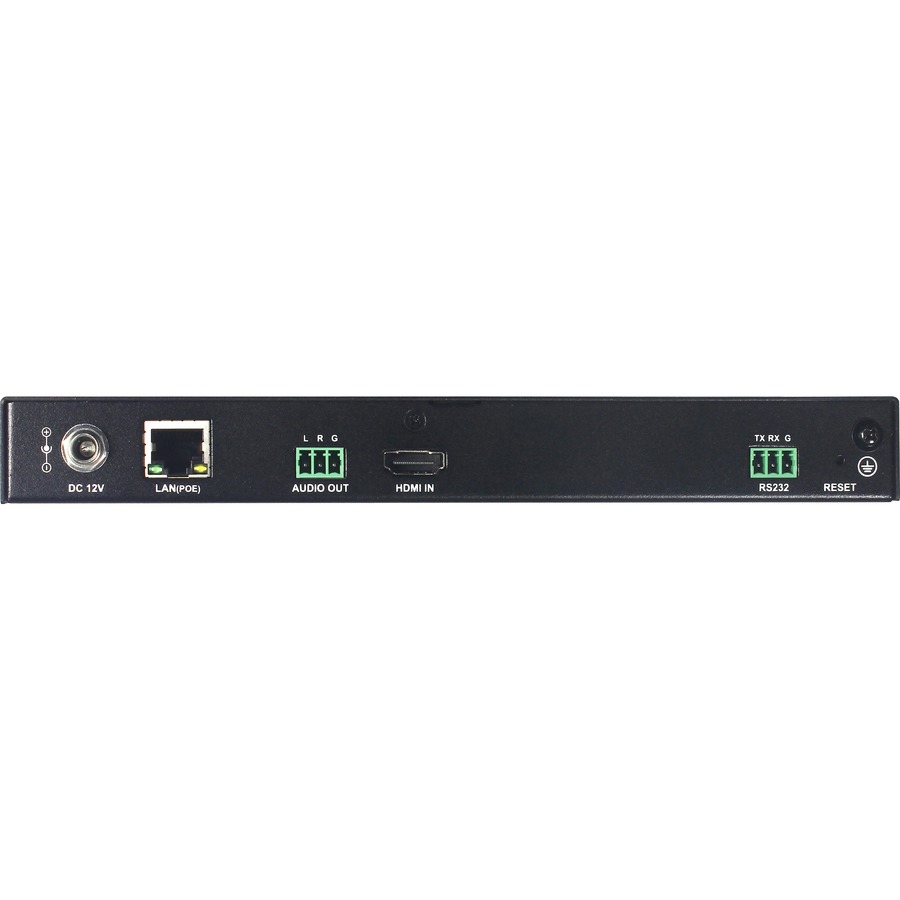

Interfaces/Ports
HDMI Yes
Audio Line Out Yes
Network (RJ-45) Yes
Physical Characteristics
Height 1.7"
Width 8.7"
Depth 7"
Weight (Approximate) 1.76 lb
Miscellaneous
Package Contents
  • HDMI-over-IP H.264 Encoder
  • 1 x Power Adapter (12 VDC, 1 A)
  • 2 x Phoenix Connectors (Male, 3.5-MM, 3-Pin)
  • 2 x Rackmounting Ears
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
