Apevia Prestige Series ATX-PR600W 600W 80 PLUS Gold ATX12V Power Supply
Mfg Part Number: ATX-PR600W , Item #: 3517703
, PO and Wire.

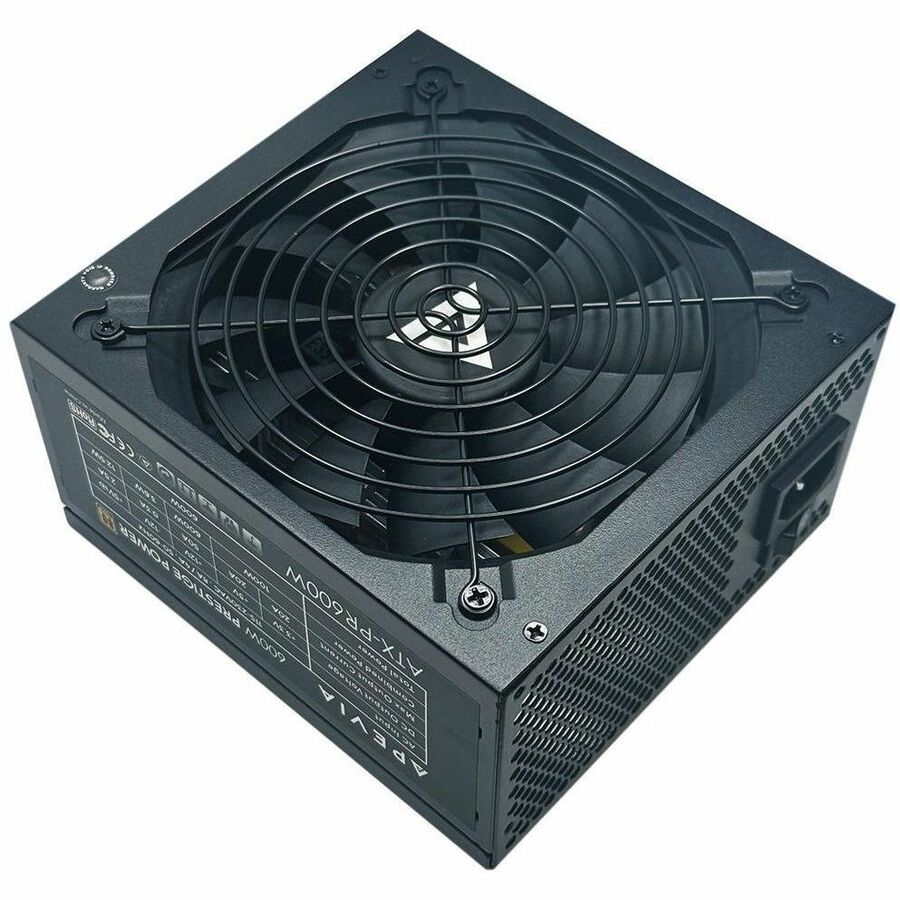

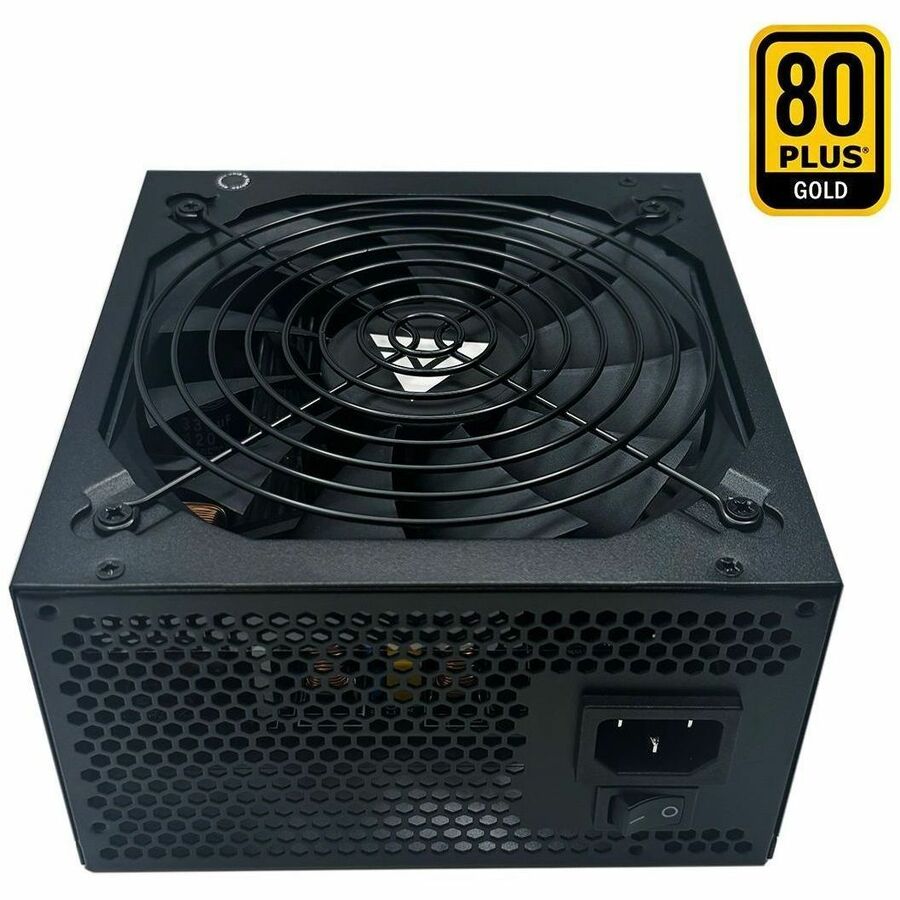

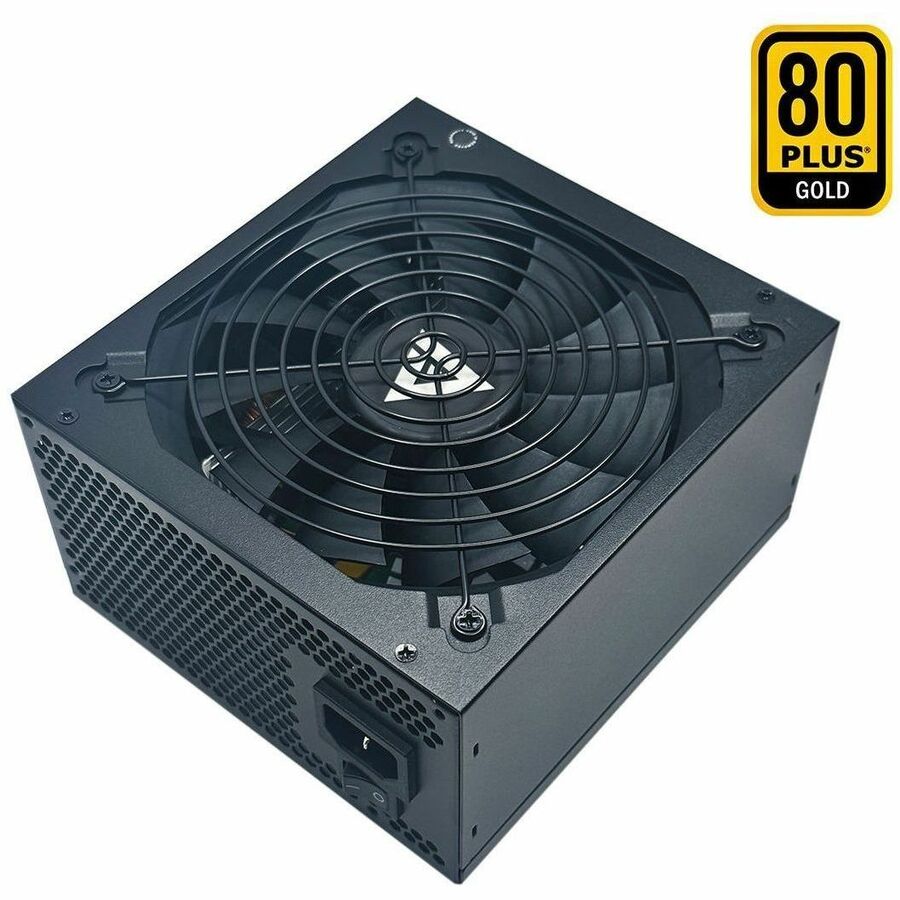

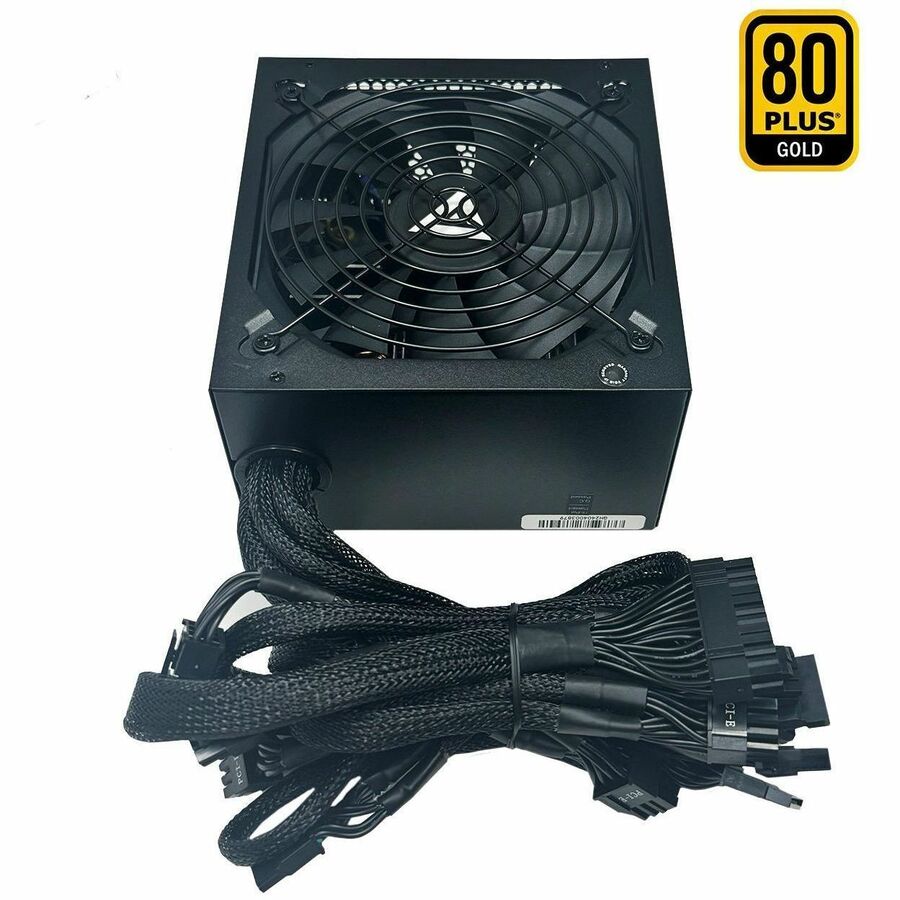

Apevia's Prestige line of power supplies brings great power and efficiency to your computer system. 80+ Gold certified, and designed for elegant form and function, they bring it to life. Supporting the 12v2.3 standard and single rail setup, it's updated for modern platforms. Boasting a 135mm silent black fan, it keeps everything inside cool. The Prestige line also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. ROHS certified.
- 600W Power with 13.5cm black fan
- 80+ Gold & ROHS certified
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- High quality components and housing
- Universal AC input by active PFC (99%PF Typical)

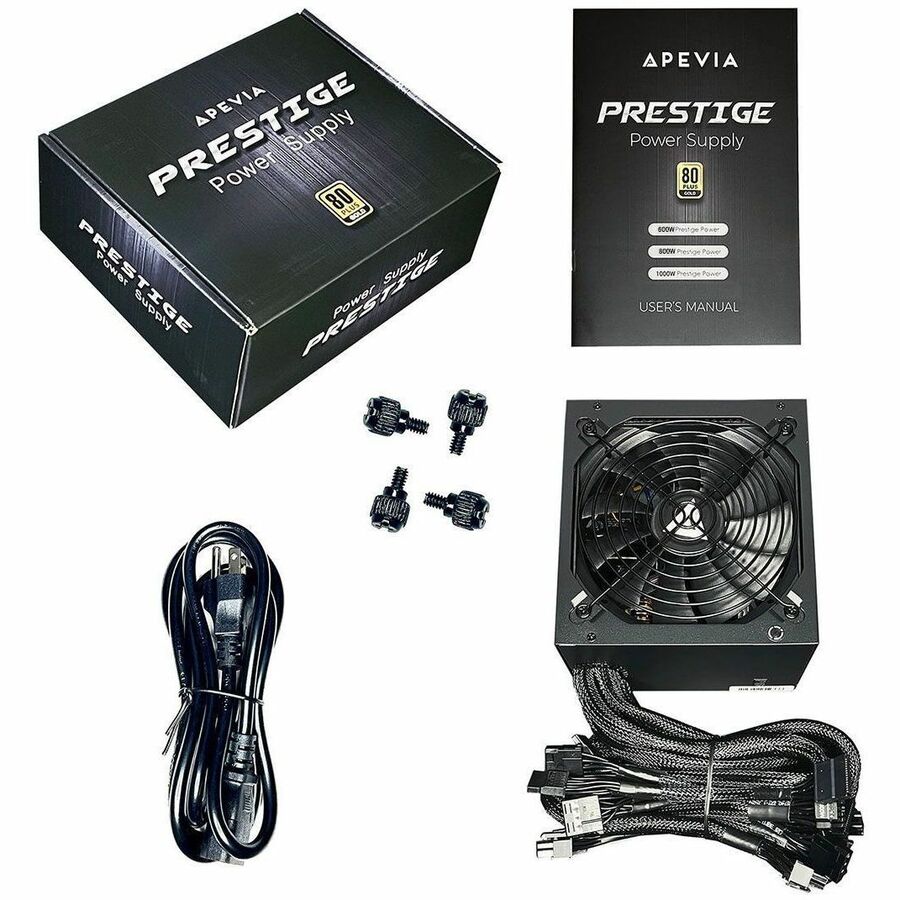

- Package contents
- Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
?IMPORTANT:The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

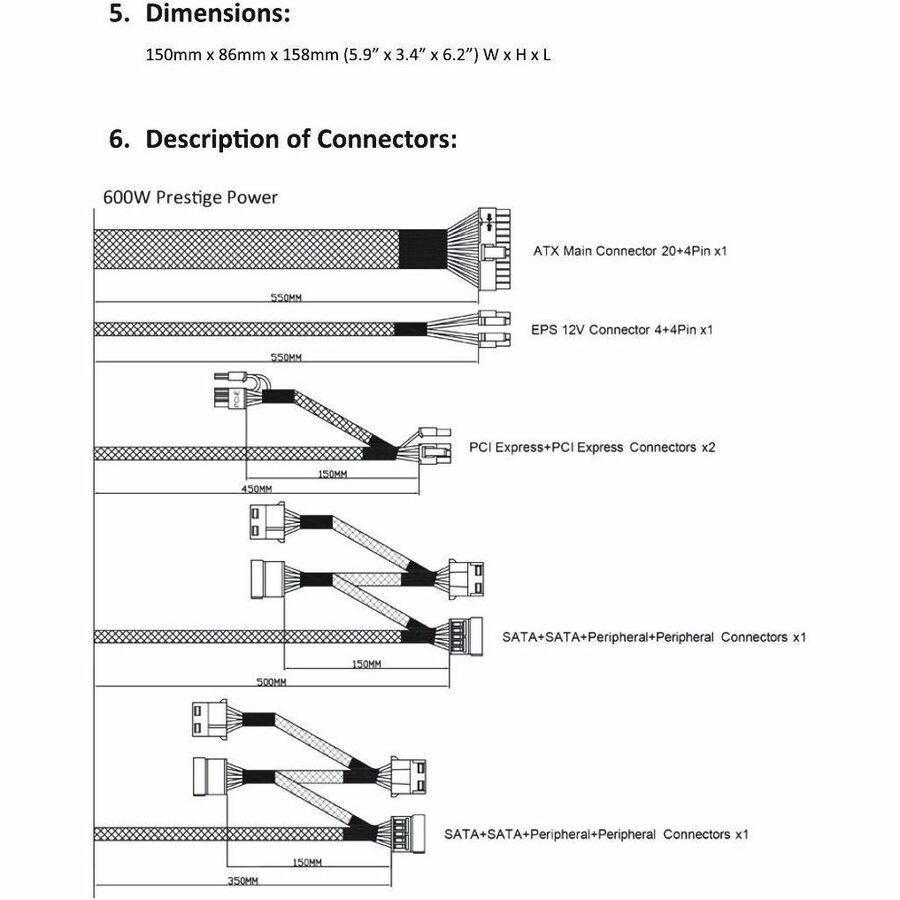

IMPORTANT:The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
IMPORTANT:The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.
IMPORTANT:The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
| General Information | |
| Manufacturer | Apevia Corporation |
| Manufacturer Part Number | ATX-PR600W |
| Manufacturer Website Address | http://www.apevia.com |
| Brand Name | Apevia |
| Product Line | Prestige |
| Product Model | ATX-PR600W |
| Product Name | Prestige ATX-PR600W 600W Power Supply |
| Packaged Quantity | 10 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V v2.3 |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 135 mm |
| Protection Type | Over Voltage |
| Protection Type | Short Circuit |
| Protection Type | Over Power |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V SB |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 5 V SB @ 2.5 A |
| Output Voltage Detail | 12 V DC @ 50 A |
| Output Power | 600 W |
| Input Frequency | 60 Hz |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 4 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Cosmic Black |
| Form Factor | ATX |
| Height | 3.3" |
| Width | 5.9" |
| Weight (Approximate) | 5 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
