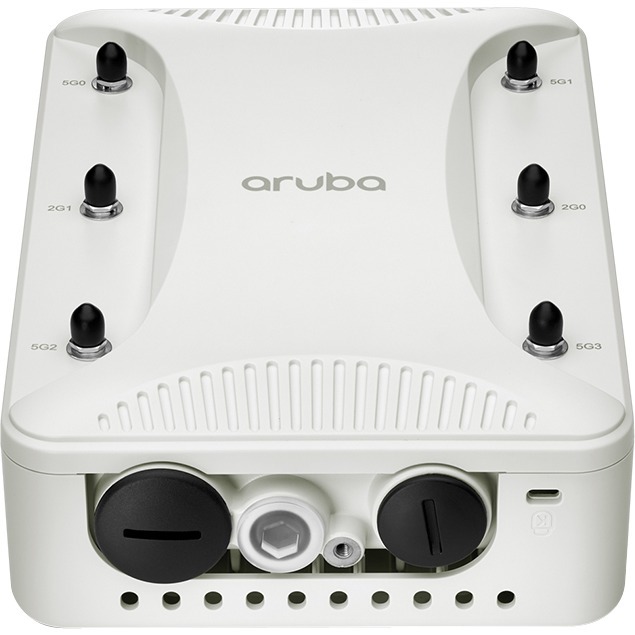

JZ154A HPE Aruba AP-318 (EG) FIPS/TAA - Hardened - wireless access point - Wi-Fi - Dual Band

The ruggedized Aruba 318 Series access points deliver Wi-Fi 5 (802.11ac Wave 2) gigabit performance for client devices in harsh, weatherprotected environments such as warehouses, industrial freezers or stadiums.

With a maximum concurrent data rate of 2 Gbps (5GHz: 1,733 Mbps and 2.4GHz: 300 Mbps), the 318 Series can quickly add capacity to existing or new wireless networks in temperaturesensitive, dust-ridden, or other extreme environments. The 318 Series also comes with multi-user MIMO (MU-MIMO), 4 spatial streams (4SS), and optional 160 MHz channel bandwidth (VHT160) for the highest performance and density applications.

MU-MIMO AWARE CLIENT OPTIMIZATION
The 318 Series includes Aruba's patented ClientMatch technology to eliminate sticky client issues while optimizing 802.11ac Wave 2 performance. These APs continuously gather session performance metrics to steer mobile devices to the best-available AP - even while users roam. With MUMIMO awareness, ClientMatch can group MU-MIMO capable devices together to increase network capacity and efficiency. ClientMatch also participates in Aruba's AI-powered Mobility solution.

IOT-READY
The 318 Series includes an integrated Bluetooth Low Energy radio to simplify the deployment and management of location services, asset tracking services, security solutions and IoT sensors. This allows organizations to leverage the 318 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.

ARUBA SECURE INFRASTRUCTURE
The Aruba 318 Series includes components of Aruba's 360 Secure Fabric to help protect user authentication and wireless traffic. Select capabilities include:

WPA3 and Enhanced Open
Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise protected networks.

Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks.

WPA2-MPSK
MPSK enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. Requires ClearPass Policy Manager.

VPN Tunnels
In Remote AP (RAP) and IAP-VPN deployments, the Aruba 318 Series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator.

Trusted Platform Module (TPM)
For enhanced device assurance, all Aruba APs have an installed TPM for secure storage of credentials and keys, and boot code.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	JZ154A
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Series	318
Product Model	AP-318
Product Name	AP-318 Wireless Access Point
Product Type	Wireless Access Point
Technical Information
Wireless LAN Standard	IEEE 802.11ac
Network Band	Dual Band
Frequency Band	2.40 GHz
Frequency Band	5 GHz
Indoor/Outdoor	Indoor
Wireless Transmission Speed	2 Gbit/s
MIMO Technology	Yes
Beamforming Technology	Yes
Data Encryption	Yes
Encryption Standard	WPA2-MPSK
Encryption Standard	WPA-ENT
Encryption Standard	WPA2-ENT
Encryption Standard	WPA3-ENT
Ingress Protection (IP) Rating	IP55
Interfaces/Ports
Ethernet Technology	Gigabit Ethernet
Number of Network (RJ-45) Ports	1
PoE PD Port	Yes
USB	Yes
Management Port	Yes
Physical Characteristics
Antenna Form Factor	External
Height	3"
Width	5.9"
Depth	8.7"
Weight (Approximate)	2.70 lb
Miscellaneous
TAA Compliant	Yes
