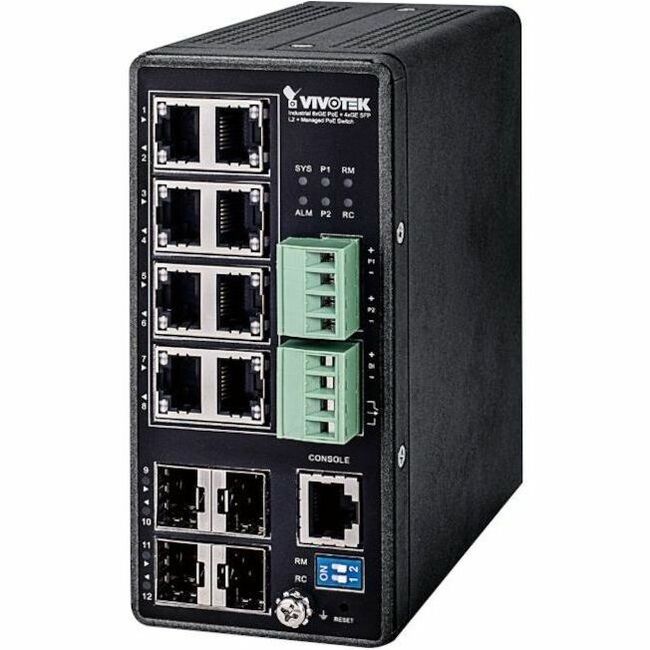

Vivotek VivoCam AW-IHT-1271 - L2+ Series - switch - L2+ - managed - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop - PoE+ (240 W) - DC power
Mfg Part Number: AW-IHT-1271 , Item #: 3506036
, PO and Wire.
The AW-IHT-1271 is an Industrial 8-port Gigabit PoE port (Supports 802.3 at/af, and total up to 240W) + 4-port Gigabit SFP L2 plus managed PoE switch with a wide operating temperature range from -40°C to 75°C and supports surge protection per port up to 6KV. The AW-IHT-1271 combines high hardware performance and environmental flexibility for use in outdoor surveillance, outdoor telecom, heavy industry, factory automation and transportation applications.
The AW-IHT-1271 supports surveillance features such as Topology/ Floor/Map views for controlling, understanding network topology and device status. It not only features surveillance network environment set up functions, but also troubleshooting and traffic monitoring functions which help users to clarify and troubleshoot any connection and device issue. In addition, the AW-IHT-1271 also supports Rapid ring, a redundancy proprietary protocol with convergence time within 20ms and up to 250 switches.
Key Features | Managing IP Surveillance
- The Root VivoCam Will Auto-Sync With All VivoCam Sub Switches
- Auto Discovery and Classification of Network Devices
- Batch Camera Configuration - File Import & Export
- Batch Camera Network/Login Configuration
- Auto Generated Surveillance Topology View
- Easy Tag VLAN Configuration in Topology View
- Smart Device-Management in Topology View
- PoE On/Off Control in Topology View
- Display IP Camera Live Stream in Topology View, Floor View and Google Map View
- Supports Discovery of ONVIF IP Cameras
Layer 2 Feature
- Supports DHCP Server
- Supports IPv4/IPv6 L3 Static Route
- Supports IEEE802.1Q VLAN (up to 4096), Double Tag (Q-in-Q)
- Supports IEEE802.1v Protocol VLAN and MAC-based VLAN
- Supports Rapid Ring with Convergence Time within 20ms and up to 250 Switches
- Supports 802.1d (STP), 802.1w (RSTP) and 802.1s (MSTP)
- Supports IEEE802.3ad Link Aggregation Control Protocol (LACP)
- Supports SNMP v1/v2c/v3 for Management
- Supports Access Control List (ACL)
| General Information | |
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | AW-IHT-1271 |
| Manufacturer Website Address | http://www.vivotek.com |
| Brand Name | Vivotek |
| Product Line | VivoCam |
| Product Model | AW-IHT-1271 |
| Product Name | AW-IHT-1271 Industrial VivoCam L2+ Managed PoE Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1v |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1w (RSTP) |
| Networking Standards | IEEE 802.1Q |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Input Voltage | 48 V DC |
| Input Voltage | 57 V DC |
| Power Source | DC |
| Physical Characteristics | |
| Height | 5.3" |
| Width | 2.4" |
| Depth | 5.1" |
| Weight (Approximate) | 1.50 lb |
| Miscellaneous | |
| Application/Usage | Heavy Industry |
| Application/Usage | Outdoor |
| Application/Usage | Telecommunications |
| Application/Usage | IP Surveillance Network |
| Application/Usage | Surveillance |
| Application/Usage | Factory |
| Application/Usage | Traffic |
| Application/Usage | Automation Industry |
| Application/Usage | Transportation |
| TAA Compliant | Yes |
The AW-IHT-1271 is an Industrial 8-port Gigabit PoE port (Supports 802.3 at/af, and total up to 240W) + 4-port Gigabit SFP L2 plus managed PoE switch with a wide operating temperature range from -40°C to 75°C and supports surge protection per port up to 6KV. The AW-IHT-1271 combines high hardware performance and environmental flexibility for use in outdoor surveillance, outdoor telecom, heavy industry, factory automation and transportation applications. The AW-IHT-1271 supports surveillance features such as Topology/ Floor/Map views for controlling, understanding network topology and device status. It not only features surveillance network environment set up functions, but also troubleshooting and traffic monitoring functions which help users to clarify and troubleshoot any connection and device issue. In addition, the AW-IHT-1271 also supports Rapid ring, a redundancy proprietary protocol with convergence time within 20ms and up to 250 switches.
Features
Managing IP Surveillance
- The Root VivoCam Will Auto-Sync With All VivoCam Sub Switches
- Auto Discovery and Classification of Network Devices
- Batch Camera Configuration - File Import & Export
- Batch Camera Network/Login Configuration
- Auto Generated Surveillance Topology View
- Easy Tag VLAN Configuration in Topology View
- Smart Device-Management in Topology View
- PoE On/Off Control in Topology View
- Display IP Camera Live Stream in Topology View, Floor View and Google Map View
- Supports Discovery of ONVIF IP Cameras
Layer 2 Feature
- Supports DHCP Server
- Supports IPv4/IPv6 L3 Static Route
- Supports IEEE802.1Q VLAN (up to 4096), Double Tag (Q-in-Q)
- Supports IEEE802.1v Protocol VLAN and MAC-based VLAN
- Supports Rapid Ring with Convergence Time within 20ms and up to 250 Switches
- Supports 802.1d (STP), 802.1w (RSTP) and 802.1s (MSTP)
- Supports IEEE802.3ad Link Aggregation Control Protocol (LACP)
- Supports SNMP v1/v2c/v3 for Management
- Supports Access Control List (ACL)
