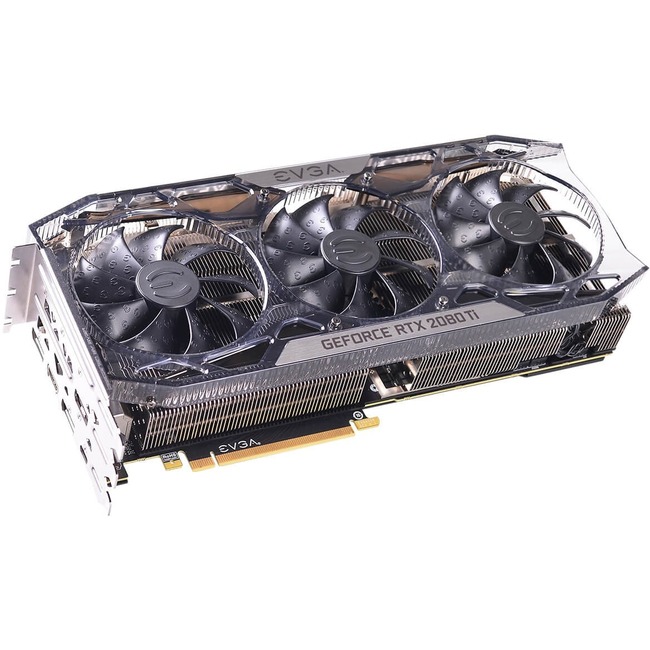

11G-P4-2487-KR EVGA NVIDIA GeForce RTX 2080 Ti FTW3 ULTRA GAMING 11GB GDDR6 HDMI/3DisplayPort/USB Type-C PCI-Express Video Card w/ iCX2 & RGB LED

The EVGA GeForce RTX 20-Series Graphics Cards are powered by the all-new NVIDIA Turing architecture to give you incredible new levels of gaming realism, speed, power efficiency, and immersion. With the EVGA GeForce RTX 20-Series gaming cards you get the best gaming experience with next generation graphics performance, ice cold cooling, and advanced overclocking features with the all new EVGA Precision X1 software.

The new NVIDIA GeForce RTX GPUs have reinvented graphics and set a new bar for performance. Powered by the new NVIDIA Turing GPU architecture and the revolutionary NVIDIA RTX platform, the new graphics cards bring together real-time ray tracing, artificial intelligence, and programmable shading. This is not only a whole new way to experience games - this is the ultimate PC gaming experience.

General Information
Manufacturer	EVGA Corporation
Manufacturer Part Number	11G-P4-2487-KR
Manufacturer Website Address	http://www.evga.com
Brand Name	EVGA
Product Name	GeForce RTX 2080 Ti FTW3 ULTRA GAMING Graphic Card
Product Type	Graphic Card
Technical Information
API Supported	DirectX 12
API Supported	Vulkan
API Supported	OpenGL 4.5
Number of Monitors Supported	4
Processor & Chipset
Chipset Manufacturer	NVIDIA
Chipset Line	GeForce
Chipset Series	RTX
Chipset Model	RTX 2080 Ti
GPU Boost Clock	1.76 GHz
Memory
Standard Memory	11 GB
Memory Technology	GDDR6
Bus Width	352 bit
Interfaces/Ports
Host Interface	PCI Express 3.0
DisplayPort	Yes
Number of DisplayPort Outputs	3
HDMI	Yes
Number of HDMI Outputs	1
Number of USB Type-C Ports	1
Physical Characteristics
Slot Space Required	Triple
Form Factor	Plug-in Card
Cooler Type	Fan Cooler
Height	5.5"
Length	11.9"
Miscellaneous
Platform Supported	PC
Warranty
Limited Warranty	3 Year

Specifications

• Mfr Part Number: 11G-P4-2487-KR
• Chipset: NVIDIA GeForce RTX 2080 Ti

• Boost Clock: 1755 MHz
• Video Memory: 11GB GDDR6
• Memory Clock: 14000 MHz (effective)
• Memory Interface: 352-bit
• Memory Bandwidth: 616 GB/s
• Bus: PCI-Express 3.0
• CUDA Cores: 4352
• RAMDAC: 400 MHz
• Max Resolution: 7680 x 4320, Support 4x Display Monitors
• Connectors:
  • Input: 2x 8-pin or 6+2-pin PCI-E Power Connectors
  • Output: USB Type-C, HDMI, 3x DisplayPorts
• Thermal: Fansink (Triple Fans)
• Dimensions (LxH): 11.89 x 5.48 inch / 301.925 x 139.300 mm

• This Video Card Supports:
  • Microsoft Windows 7/ 10 (64-bit)
  • Real-Time Ray Tracing
  • NVIDIA GeForce Experience
  • NVIDIA Ansel
  • NVIDIA Highlights

  • NVIDIA G-SYNC Compatible
  • Game Ready Drivers
  • NVIDIA GPU Boost
  • VR Ready

  • 19 Power Phases
  • EVGA iCX2 Technology
  • Adjustable RGB LED
  • Built for EVGA Precision X1
  • Designed for USB Type-C and VirtualLink
  • HDCP - High-bandwidth Digital Content Protection
  • Microsoft DirectX 12 API, Vulkan API, OpenGL 4/5
• 650W or Greater Power Supply
