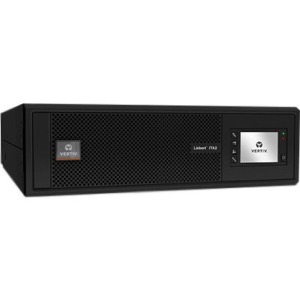

VERTIV ITA2-10KRT208C Liebert ITA2 - UPS (rack-mountable / external) - AC 208/220 V - 10 kW - 10000 VA - 3-phase - RS-232, USB - with Liebert Communications Card (IS-UNITY-DP)

The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. The Liebert ITA2 UPS offers economical, efficient, and reliable three-phase power for critical loads up to 10kVA. This intelligent UPS has scalable battery runtimes, output distribution options, a high-power factor (1.0) and an optimized maintenance bypass cabinet option for enhanced availability and flexibility. It is easy to install and operate. It provides intuitive control panel, network connectivity communications card and optional software monitoring for visibility, control, and peace of mind for manned or unmanned locations. It has Energy Star 2.0 certification. It comes with a 2-year warranty.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	ITA2-10KRT208C
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	ITA2
Product Model	Liebert ITA2
Product Name	ITA2-10KRT208C UPS
Packaged Quantity	1 Pack
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hardwired
Receptacle Type	Hardwired
Receptacle Detail	1 x Hardwired
Transfer Time	0 ns
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Phase	Three Phase
Application/Usage	Large Network Peripheral
Application/Usage	Banking
Application/Usage	Network Closet
Application/Usage	VoIP
Application/Usage	Computer
Application/Usage	Datacenter
Application/Usage	Healthcare
Application/Usage	Server
Application/Usage	Government
Application/Usage	Medical Equipment
Application/Usage	Network Workstation
Application/Usage	VoIP Device
Application/Usage	Industrial
Power Description
Load Capacity (VA)	10000 VA
Load Capacity (Watt)	10 kW
Input Voltage	220 V AC
Input Voltage	208 V AC
Input Voltage	127 V AC
Input Voltage	120 V AC
Input Voltage Range	166 V AC - 249 V AC
Output Voltage	208 V AC
Output Voltage	220 V AC
Output Voltage	120 V AC
Output Voltage	127 V AC
Input Frequency	70 Hz
Input Current	37 A
Output Current	28 A
Waveform Type	Pure Sine Wave
Surge Energy Rating	80 J
Management
Network Management	SNMP/Modbus/TCP/BacNet IP
Interfaces/Ports
Serial Port	Yes
Parallel Port	Yes
Modem (RJ-11)	No
Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes
Modular Slots	Intellislot
Battery Information
DC System Voltage	384 V DC
Battery Characteristics	Hot-swappable/Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	8 Minute
Backup/Run Time (Half Load)	21 Minute
Typical Battery Recharge Time	5 Hour
Replaceable Battery	Yes
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-40°F (-40°C) - 158°F (70°C)
Sound Emission (A-Weighted)	58 dB(A)
Thermal Dissipation	749.38 W
Physical Characteristics
Color Family	Dual Color
Product Color	Black
Product Color	Gray
Form Factor	Rack/Tower
Rack Height	3U
Height	5.1"
Width	16.9"
Depth	19.7"
Weight (Approximate)	50.70 lb
Miscellaneous
Package Contents	208V 10kVA UPS module USB Cable Rack handles & associated hardware Rack Rail Kit & associated hardware Wiring boxes with knockouts installed on back of module 4 x Support base ends for Tower mount application 2 x Support base extension Quick Start Guide (install & Start-up)/Safety instruction booklet IS-Unity-DP Intellislot Communication Card installed Power Cable Kit - UPS to 1st Battery String Communication Cable - UPS to 1st Battery String
Additional Information	Product Shipping Length: 33.1" Product Shipping Width: 25.3 " Product Shipping Height: 13.8 " Product Shipping Weight: 66 lbs Package Type: Corugated, ISTA 1A certified Protection Type: Transient, Overload, EMI / RFI, Under Voltage, AC Surge, Harmonics, Brownout, Over Temperature, Lightning, Short Circuit, Output Over Voltage, Output Over Current, AC Noise, No Load Maximum Current: Input Current 37A Maximum Current: Output Current 28A Surge Energy Rating 385V Management: Network Management SNMP, Modbus TCP, BacNet IP, External Environmental Sensors Overload Protection: Electronic & External Circuit Breaker Bypass Switch: Automatic Internal Standard, External Maintenance Bypass Optional Parallel Port: Yes Modem (RJ-11): No Network (RJ-45): Yes Number of Slots: Modular Slots 1, Expandable to 2 with Extnder Kit Slot Type: Modular Slots Vertiv Intellislot Time: Backup/Run Time (With Optional Battery): 21 @ FL with 2 strings 35 @ FL with 3 strings 49 @ FL with 4 strings Maximum Operating Temperature 32-104 degF (0-40 degC), no derating; 105-122 degF (40-50 degC), 80% automatic derating Body Color: Color Black-Grey (RAL 7021) For Country/Region Americas and any other 60 Hz country 208/120V or 220/127V System Requirements: System Requirements 208/120 VAC (or 220/127 VAC), 3 Phase, 4W+G Wye source Certifications & Standards: UL/cUL listed to UL 1778, 5th Ed CSA 22.2 No. 107.3 FCC Part 15, Class A ANSI C62.41 Cat. A, Level 3 IEC 62040-1 IEC6240-3
Certifications & Standards	UL listed to UL 1778, 5th Ed. CSA 22.2 No. 107.3 FCC Part 15, Class A ANSI C62.41, Cat. A, Level 3 IEC 62040-1, IEC6240-3 ISTA 1A
Energy Star	Yes
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Certification	ENERGY STAR 2.0
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty	2 Year
Additional Warranty Information	1 & 3 Additonal years optional
