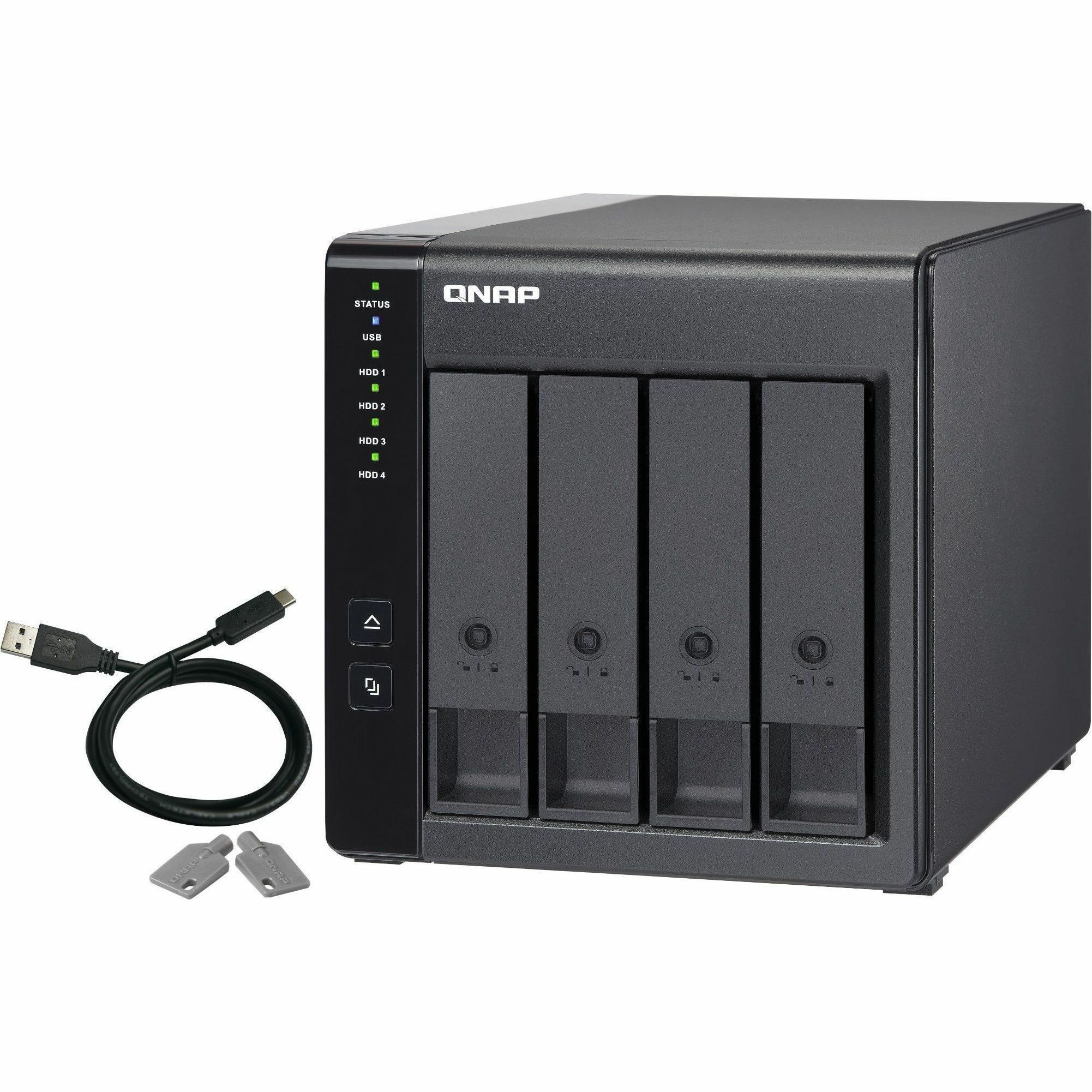

TR-004-US QNAP TR-004 4-BAY USB 3.0 TYPE

The TR-004 USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.

USB 3.2 Gen 1 (5Gbps)

USB 3.2 Gen 1 Type-C port* for faster data transfer.

Supports SATA drives

Supports up to four SATA drives for reliable read and write performance

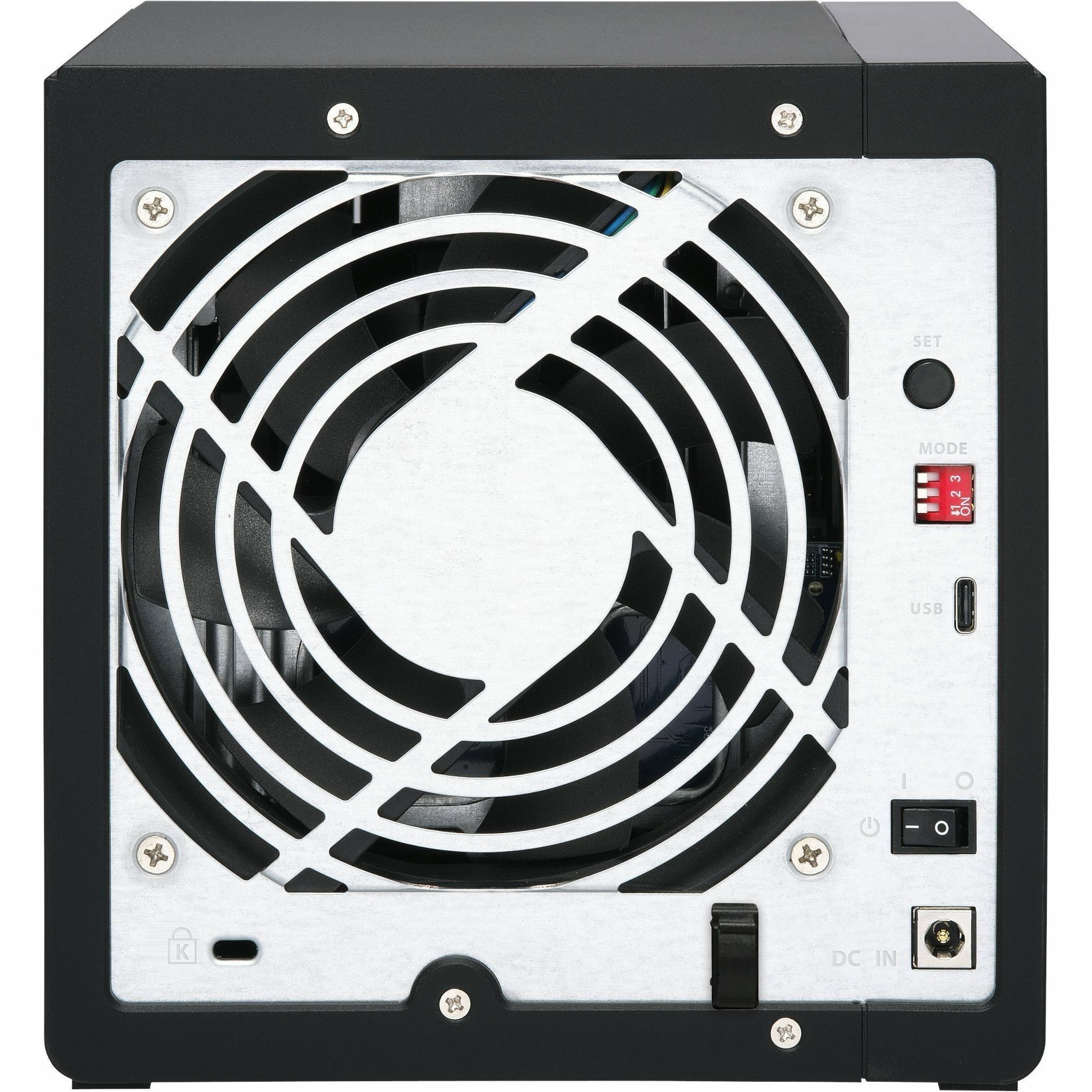

Disk mode DIP switch

Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

Lockable drive trays

Lockable hard drive trays to prevent accidental drive removal.

Easy to eject

Eject button for disconnecting the TR-004 from a NAS or computer.

Effective storage expansion with RAID Support

The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.

Supports various RAID levels

The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

Individual Mode

Treats every disk as separate storage space, allowing you to independently access each one.

JBOD Mode

All the disks are recognized as a single drive. This allows maximal storage utilization but provides no data protection.

RAID 0 Mode

Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.

RAID 1/10 Mode

Half of the total storage capacity is used to store data, and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.

RAID 5 Mode

RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing.

Software Ctrl Mode

Use this mode to control the RAID configuration from your NAS or computer.

Flexible storage configuration and management

Compared with other RAID enclosures, the TR-004 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

Use Storage & Snapshots Manager to configure the TR-004 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004 as a DAS.

Specifications

• Mfr Part Number: TR-004-US

• Hardware:
  • Drive Bay: 4x 3.5-inch SATA 3Gb/s

  • Drive Compatibility:
    • 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
    • 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives

    • 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
  • Lockable with key lock: Key lock

  • Hot-swappable

  • USB: 1x USB 3.0 Type-C Port
  • Buttons: Eject, Set, One Touch Copy
  • Switches: Power; RAID modes - Software Ctrl, Individual, JBOD, RAID 0/1/5/10

  • Sound Level: 18.1 dB(A)

  • Security Slot: Kensington security slot
  • Minimum operating system: QTS 4.3.6 and later, Windows 7 and later, macOS X 10.11 and later, Linux

• Storage Management:
  • General & Extenal Storage Mode:
    • Overview device, disks, and RAID info and status
    • Support for disk’s S.M.A.R.T. monitoring
    • Location indication of blinking drive LEDs and sound beeping of enclosure

    • External RAID software configuration
    • RAID rebuild - Hot spare disk configuration

    • RAID rebuild speed customization
    • RAID recovery

    • Firmware update
    • Format partition
    • Erase partition and device
  • NAS Storage Mode:
    • The storage pools and volumes in the expansion enclosures are configured via the QTS operating system
    • Qtier Technology (automated storage tiering)
    • Volume and LUN snapshots - Snapshot Manager
    • Snapshot Cloning - Snapshot Replica - Snapshot Vault

    • Support for Windows Previous Versions (CIFS/SMB)

• File System:

  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, exFAT

• Form Factor: Tower

• Fan: System - 1x 12 cm, 12V DC smart fan
• Power Supply: 65W, 100-240V AC, 50/60 Hz

• Power Consumption (with 4x 1TB HDDs):
  • HDD Standby: 4.17 W
  • In Operation: 18.21 W

• Dimensions(WxDxH): 6.31 x 8.62 x 6.63 inch / 160.2 x 219.0 x 168.5 mm

• Net Weight: 4.08 lbs / 1.85 kg
