The N1C L-Series Lithium-Ion UPS systems are a game changer, offering maximum protection from all 9 power problems with their online double conversion topology, while also offering an industry-best 10-year full warranty on electronics and battery. The L-Series was the first full lineup of lithium-ion UPS systems on the market, and they remain a leader among lithium-ion systems, offering not only the best warranty in the business and competitive prices, but also some of the best on-battery runtimes. The 1kVA, 2kVA and 3kVA models all run for about 13 minutes at full capacity, while the 1.5kVA model runs for 18 minutes and the 2.2kVA models last an astonishing 24 minutes at full load! That's equivalent to many 2 or 2.2kVA lead acid UPS systems supported by an external lead acid battery pack! With N1C L-Series, you'll have the time to restore power or perform graceful shutdowns of connected equipment.
All N1C L-Series UPS systems offer long-life lithium iron phosphate (LiFePO4) battery technology with integrated battery management systems for safety and a 12-15 year design life in normal operating conditions. This lowers your overall total cost of ownership by virtually eliminating costly battery replacements (sourcing, shipping, downtime, maintenance, recycling, etc.) All systems offer a pure sine wave output and 0ms transfer time to battery to power and maintain even the most sensitive equipment. The always-included SNMP network monitoring card offers remote monitoring, alerting and shutdown capabilities, and our WiseFind/WiseClose/WiseInsight multi-UPS monitoring software suite is license free to all users. Dry contact relay cards are also available for interfacing with building control systems, PLC boards and other industrial gear.
General Information | |
Manufacturer | N1 Critical Technologies, Inc |
Manufacturer Part Number | 10-500220 |
Manufacturer Website Address | http://www.n1critical.com |
Brand Name | N1C Technologies |
Product Series | L |
Product Model | N1C.L2200 |

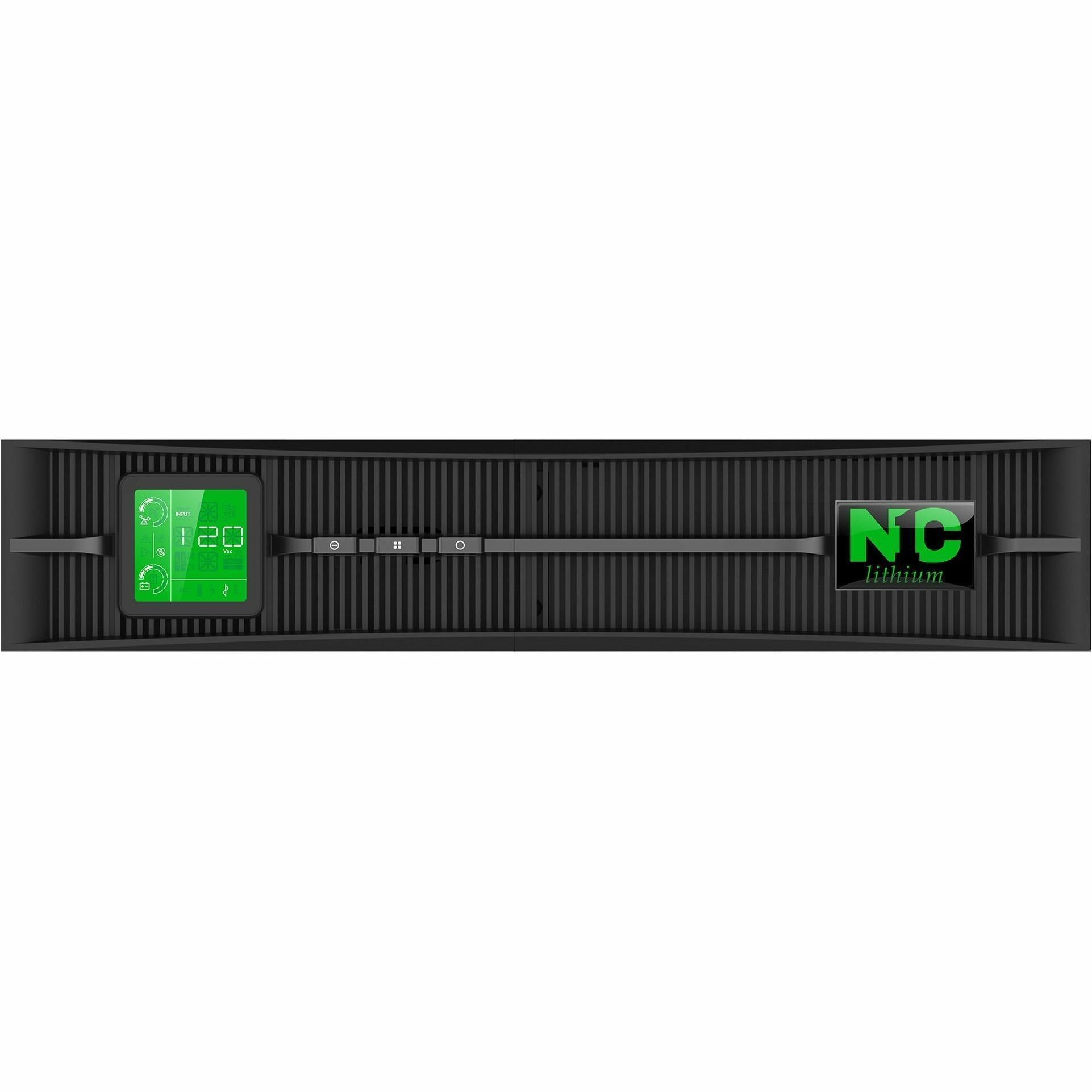

Product Name | L N1C.L2200 2200VA Rack/Tower UPS |
Product Type | Double Conversion Online UPS |
Technical Information | |
Receptacle Type | NEMA 5-15/20R |
Receptacle Detail | 6 x NEMA 5-15/20R |
Overload Protection | Yes |
Transfer Time | 0 ns |
Phase | Single Phase |
Power Description | |
Load Capacity (VA) | 2200 VA |
Load Capacity (Watt) | 1980 W |
Input Voltage | 120 V AC |
Input Voltage Range | 88 V AC - 148 V AC |
Output Voltage | 120 V AC |
Input Frequency | 60 Hz |
Output Frequency | 60 Hz |
Waveform Type | Pure Sine Wave |
Input Power Factor | 0.9 |
Management | |
Network Management | SNMP |
Network Management | Network Card |
Alarm | Low Battery |
Alarm | Abnormal Input Voltage |
Alarm | UPS Failure |
Interfaces/Ports | |
USB | Yes |
EPO Port | Yes |
Battery Information | |
DC System Voltage | 72 V DC |
Battery Chemistry | Lithium-Ion (LiFePO4) |
Backup/Run Time (Full Load) | 25 Minute |
Backup/Run Time (Half Load) | 47 Minute |
Battery Life | 15 Year |
Typical Battery Recharge Time | 2 Hour |
Environmental Conditions | |
Maximum Operating Temperature | 140°F (60°C) |
Physical Characteristics | |
Height | 3.4" |
Width | 17.2" |
Depth | 24.4" |
Rack Height | 2U |
Form Factor | Rack/Tower |
Weight (Approximate) | 60 lb |
Miscellaneous | |
Package Contents | |
Country of Origin | China |
Warranty | |
Limited Warranty | 10 Year Lifetime |
