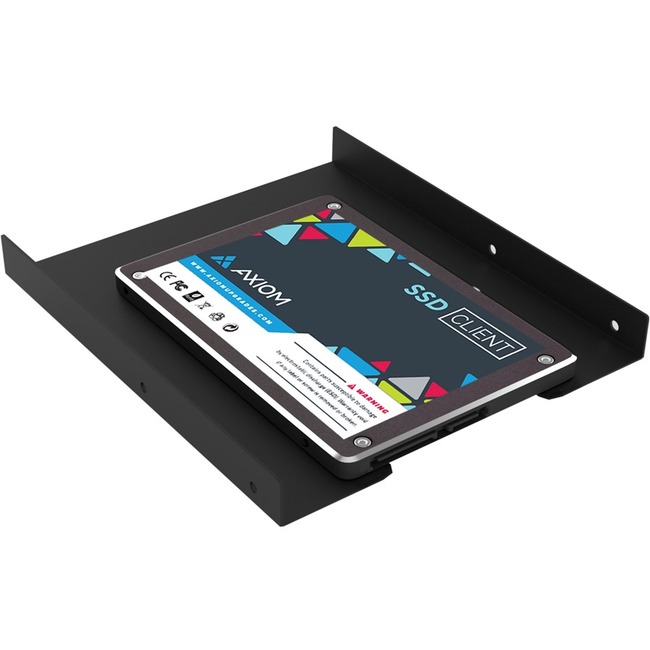

AXIOM AXG99091 500GB C565E SERIES DESKTOP SSD 6GB/S SATA-III 3D TLC OPAL 2.0

The Axiom C565e Series SSD features high quality 3D TLC NAND flash and the security features of OPAL 2.0/256-bit AES Encryption these SSDs are loaded with enhancements to promote a secure, high performing and reliable computing environment.

The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are realized when upgrading systems to an Axiom SSD. External DRAM and SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments.

Fast Performance

• Highest read and write speeds in its class
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate

Secure

• OPAL 2.0 Compliant
• 256-bit AES compliant Data Encryption

Reliable

• TRIM, Wear Leveling, StaticDataRefresh and LDPC ECC functions optimize data processing efficiency
• S.M.A.R.T. and a built-in temperature sensor assist with monitoring drive health
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs

Reduced Power Requirements

• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD

Improved Operation

• Noise and vibration free
• Virtually no heat emissions

General Information
Manufacturer	Axiom Memory Solutions
Manufacturer Part Number	AXG99091
Manufacturer Website Address	http://www.axiommemory.com
Brand Name	Axiom
Product Name	500GB C565e Series Desktop SSD 6Gb/s SATA-III 3D TLC - TAA Compliant
Product Type	Solid State Drive
Technical Information
Storage Capacity	500 GB
Encryption Standard	256-bit
Drive Performance
Maximum Read Transfer Rate	565 MB/s
Maximum Write Transfer Rate	530 MB/s
Endurance (DWPD)	0.27
Endurance (TBW)	148 TB
Network & Communication
Wireless LAN	No
Interfaces/Ports
Drive Interface	SATA
Drive Interface Standard	SATA/600
Power Description
Operating Power Consumption	2.10 W
Physical Characteristics
Drive Type	Internal
Form Factor	2.5"
Miscellaneous
Device Supported	Notebook
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
