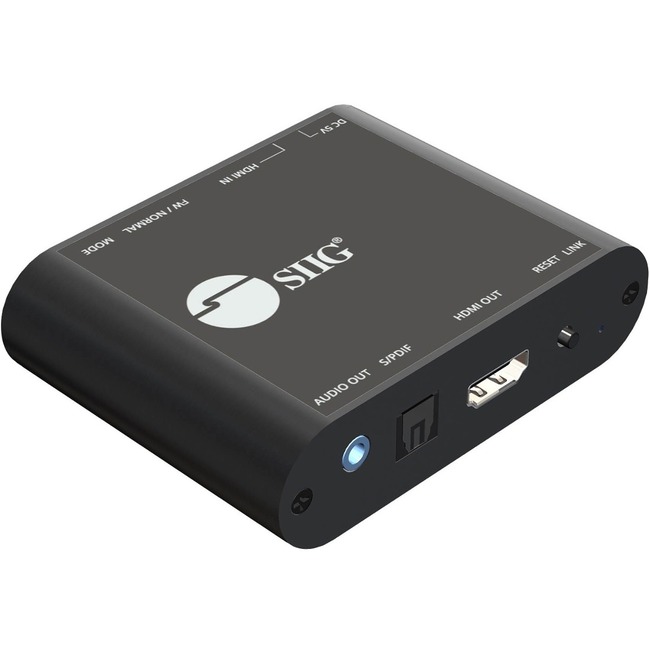

SIIG CE-H24F11-S1 DESIGNED TO CO-WORK WITH ANY HDMI MATRIX IN THE MARKET TO MAKE DIFFERENT AUDIO C

Mfg Part Number:  CE-H24F11-S1
Image may not reflect the actual item.
Price: $104.99 + Free Shipping
Quantity:
In Stock: 17
Last Updated: Jul 13, 2025
No Sales Tax except these states
, PO and Wire.

Splits incoming HDMI audio signal to stereo audio and Toslink outputs, allowing you to connect to speakers and entertainment systems that do not have an HDMI connection

  • Identifies and separates high quality audio track from an incoming HDMI signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HDMI connection
  • Works with multi-channel HDMI embedded audio
  • Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio
  • Supports audio extraction via stereo and Toslink
  • Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1
  • Supports ARC audio extraction via Toslink connection
  • Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life
  • Plug and Play Installation - No driver or software installation required
Main Specification
General Information
Manufacturer SIIG, Inc
Manufacturer Part Number CE-H24F11-S1
Manufacturer Website Address http://www.siig.com
Brand Name SIIG
Product Name HDMI 2.0 4K HDR with Audio Extractor & ARC
Product Type Signal Extractor
Technical Information
Functions Audio Extraction
Functions Audio Embedding
Maximum Resolution 4096 x 2160
Interfaces/Ports
USB Yes
HDMI Yes
Audio Line In Yes
Physical Characteristics
Form Factor Wall Mountable
Height 0.9"
Width 2.6"
Depth 3.5"
Weight (Approximate) 0.49 lb
Miscellaneous
Package Contents
  • HDMI 2.0 4K HDR with Audio Extractor & ARC
  • USB Type-A to Micro B Cable
  • Installation Guide
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
