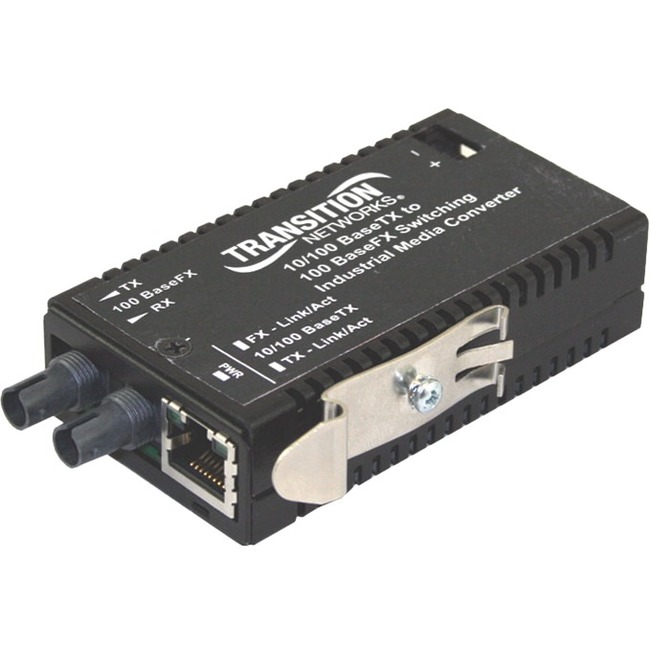

The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.
General Information | |
Manufacturer | Transition Networks, Inc |
Manufacturer Part Number | M/E-ISW-FX-02 |
Manufacturer Website Address | http://www.transition.com |
Brand Name | Transition Networks |
Product Series | M/E-ISW |
Product Name | M/E-ISW Transceiver/Media Converter |
Product Type | Transceiver/Media Converter |
Interfaces/Ports | |
Total Number of Ports | 2 |
Network (RJ-45) | Yes |
Number of Network (RJ-45) Ports | 1 |
Number of ST Ports | 1 |
ST Port Type | Duplex |
Media & Performance | |
Media Type Supported | Optical Fiber |
Media Type Supported | Twisted Pair |
Fiber Mode Supported | Multi-mode |
Fiber Optic Cable Wavelength | 0.1 mil |
Maximum Distance Supported | 2 km |
Network & Communication | |
Ethernet Technology | Fast Ethernet |
Network Technology | 100Base-FX |
Network Technology | 10/100Base-TX |
Power Description | |
Power Source | Power Supply |
Physical Characteristics | |
Form Factor | Rail-mountable |
Form Factor | Wall Mountable |
Height | 0.9" |
Width | 1.8" |
Depth | 3.3" |
Weight (Approximate) | 2 lb |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Country of Origin | Taiwan |
Warranty | |
Limited Warranty | Lifetime |
