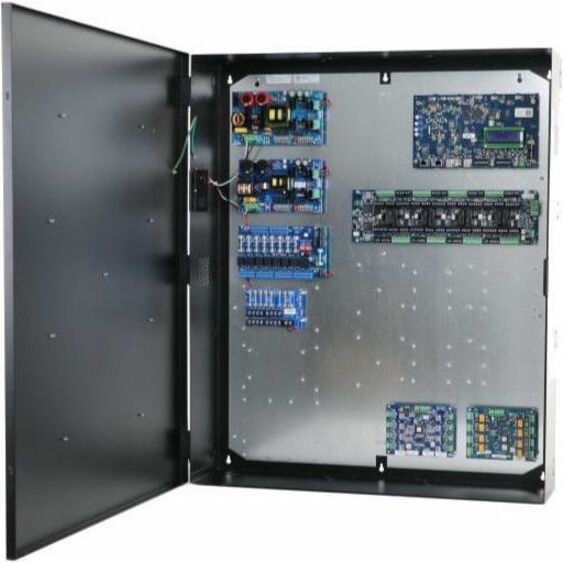

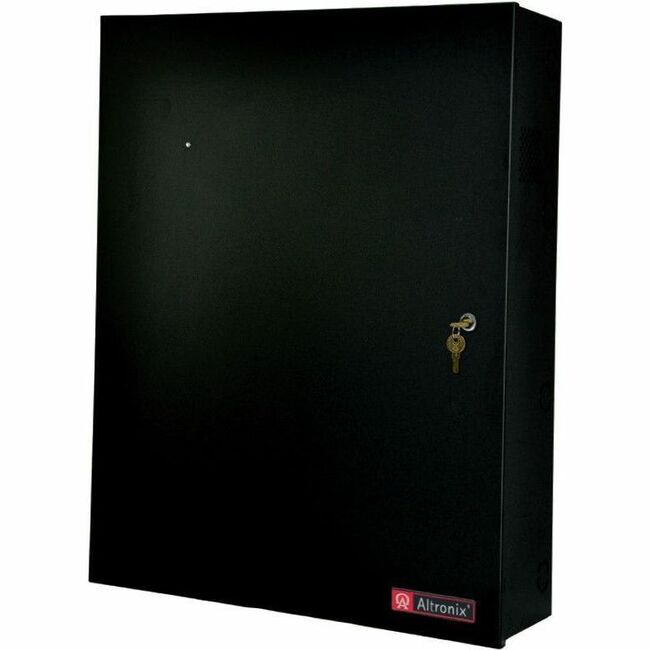

Altronix T3SK75F8 kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, eight (8) fuse protected output access control module and eight (8) fuse protected output power distribution module.
This kit also accommodates various combinations of Software House boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | T3SK75F8 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Name | Access/Power Integration Kit |
| Product Type | Access/Power Integration Kit |
| Power Description | |
| Input Current | 8 A |
| Input Voltage | 120 V AC |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120°F (48.9°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Maximum Relative Humidity (Non-condensing) | 85% |
| Physical Characteristics | |
| Dimensions | Dimensions (approximate): 36.12"Wx30.125"Lx7.06"H(917.5 mm W x 768.1 mm L x 179.3 mm H). |
| Weight (Approximate) | Weights (approximate): Product Weight:74.8 Lbs.(33.93 kg). |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
