ALTRONIX

ALTRONIX T2MK3F4Q TROVE2M2 4-DR 6A FUSE LQ2

Mfg Part Number:  T2MK3F4Q
Image may not reflect the actual item.
Price: $1,183.77 + Free Shipping
Quantity:
More to Come
Last Updated: Oct 19, 2026
No Sales Tax except these states
, PO and Wire.

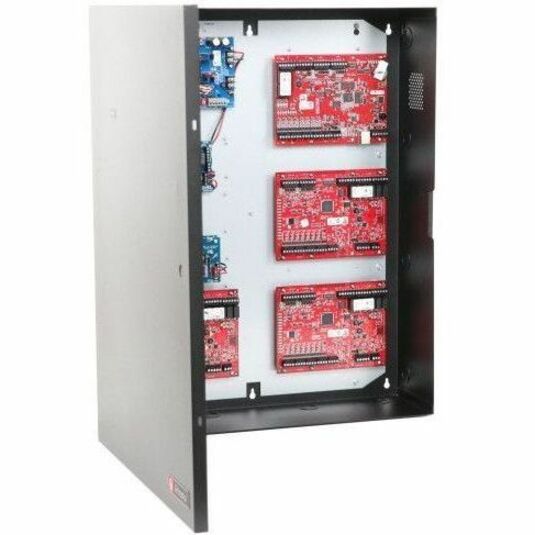

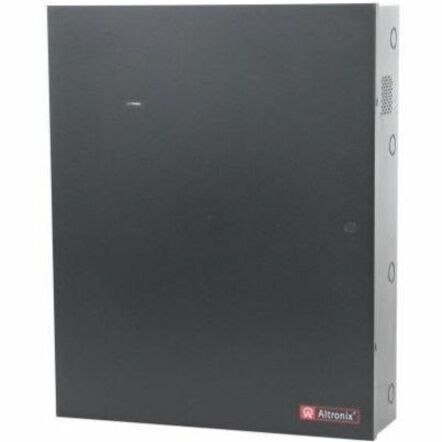

Altronix T2MK3F4Q kit consists of Trove2 enclosure and TM2 Mercury/Altronix backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, Network communication module, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and four (4) fuse protected output access control module. This kit also accommodate various combinations of Mercury boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Compatible with these authentic Mercury partners:

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Main Specification
General Information
Manufacturer Altronix Corporation
Manufacturer Part Number T2MK3F4Q
Manufacturer Website Address http://www.altronix.com
Brand Name Altronix
Product Name Access/Power Integration Kit
Product Type Access/Power Integration Kit
Technical Information
Recommended Usage Door
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 122°F (50°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 158°F (70°C)
Maximum Relative Humidity (Non-condensing) 85%
Physical Characteristics
Material Details

Backplane:

  • 16 AWG galvanized steel
Dimensions

Dimensions (approximate):

  • 27.25"Wx21.75"Lx6.5"H(692.15 mm W x 546.1 mm L x 165.1 mm H).
Weight (Approximate)

Product Weight:

  • 39.6 Lbs.(18 kg)
Miscellaneous
Package Contents
  • 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
  • 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
  • 1 x Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
  • 1 x Access Power Controller, 4 Fused Relay Outputs, FAI, Board
  • 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
  • 1 x Dual Input Power Distribution Module, 8 Fused Outputs
  • 1 x Trove2 Backplane for Altronix & Mercury
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
