APC

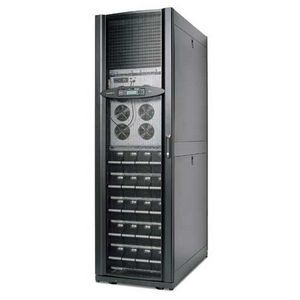

APC SUVTR30KF5B5S SMART UPS VT 30KVA RM 208V WITH 5 BATT MODULE WITH PDU
Mfg Part Number: SUVTR30KF5B5S , Item #: 3457469
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
Over 10 million installed - now available in three-phase
Smart-UPS VT SUVTR30KF5B5S offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due its soft start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure Manager. All these features make it the easiest UPS in its class to deploy, manage and maintain.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SUVTR30KF5B5S |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | VT |
| Product Name | Smart-UPS VT 30kVA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 5-wire |
| Receptacle Type | Hard Wire 5-wire |
| Receptacle Type | NEMA L21-20 |
| Receptacle Detail | 5 x NEMA L21-20 |
| Receptacle Detail | 1 x Hard Wire 5-wire |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 30 kVA |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Input Current | 80 A |
| Management | |
| Network Management | SNMP Manageable |
| Bypass Switch | Maintenance |
| Bypass Switch | Static |
| Emergency Power OFF | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 13.70 Minute |
| Backup/Run Time (Half Load) | 36.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Height | 78.5" |
| Width | 23.6" |
| Depth | 42" |
| Weight (Approximate) | 1844 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
