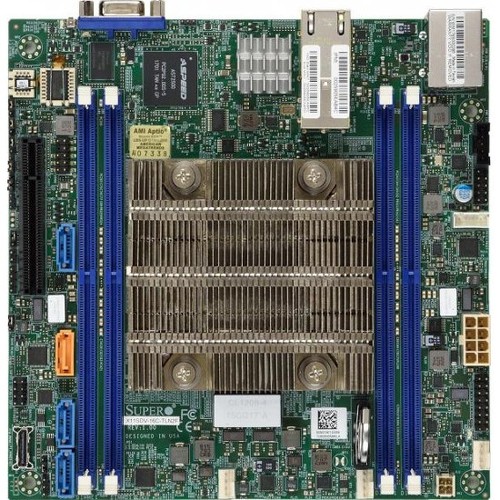

SUPERMICRO MBD-X11SDV-16C+-TLN2F-O X11SDV-16C+-TLN2F,EMBEDDED XEON-D MINI ITX,16CORE,DUAL 1
Mfg Part Number: MBD-X11SDV-16C+-TLN2F-O , Item #: 3445812
, PO and Wire.
Supermicro Solutions based on Intel® Xeon®-D processors
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® D System-on-a-Chip (SoC) Family solutions with server-class reliability, availability and serviceability (RAS) features available in ultra-dense and low-power solutions. Xeon D combines the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. The solutions will be able to deliver optimized compute and storage for intelligent edge network appliances, mid-range networking, cold and warm storage environments such as storage and network security appliances, SMB storage servers, Hadoop, web hosting, controllers, dedicated compute nodes, and other similar applications.
These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon® processor D family including:
- Up to 16 cores providing up to 3x performance improvement
- Up to: 512GB ECC DDR4 LRDIMM operating at 2666MHz
- PCI-E 3.0 x16 and PCI-E 3.0 x8 slots, USB 3.0 I/O
- 12 SATA 3.0 storage ports
- Quad 10 GbE plus quad GbE LAN networking
- IPMI 2.0
- 8-pin 12V DC or ATX power source
- 7 years product life
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SDV-16C-TLN2F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SDV-16C-TLN2F |
| Product Name | X11SDV-16C-TLN2F Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Total Processor Supported | 1 |
| Integrated Processor | |
| Integrated Processor Type | Xeon |
| Integrated Processor Model | D-2183IT |
| Integrated Processor Speed | 2.20 GHz |
| Integrated Processor Core | Hexadeca-core (16 Core) |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | LRDIMM |
| Memory Form Factor | RDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 2666 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.8" |
| Depth | 6.8" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
