BLACK BOX

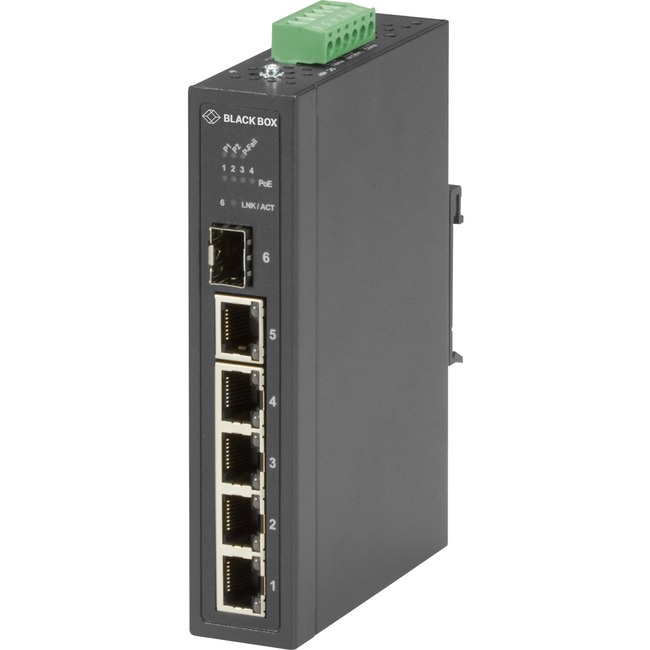

BLACK BOX LPH3061A GIGABIT ETHERNET EXTREME TEMPERATURE POE+ SWITCH(4)10/100-MBPS COPPER RJ45 POE+,

Mfg Part Number:  LPH3061A
Image may not reflect the actual item.
Price: $299.99 + Free Shipping
Quantity:
In Stock: 119
Last Updated: Jul 15, 2025
No Sales Tax except these states
, PO and Wire.

Unlike the Ethernet switches in your wiring closet or computer center, the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial Unmanaged Ethernet PoE+ Switch from Black Box comes in. This extreme industrial switch features four autosensing 10-/100-Mbps PoE/PoE+ 802 af/at copper ports, one autosensing Gigabit copper port and one Gigabit SFP fiber uplink port. Fiber SFPs are available with a variety of connectors in single- or multimode, and with ranges dependant upon the SFP used.

PoE Versatility

Use the switch's four PoE ports to power remote PoE/PoE+ PSD devices such as security cameras and traffic signals in areas where it may be difficult to run electrical wiring. The switch is built for extreme environments with uncontrolled temperatures of -40 to +167° F (-40 to +75° C). A rugged IP30 metal case is sealed to resist contaminants such as dust, dirt and moisture.

Ideal for use in harsh environments, the switch is ideal for:

  • Security/surveillance to backhaul IP camera data
  • Building automation and HVAC control
  • M2M communications with remote stations in oil/gas facilities
  • Communications networks for defense and military applications
  • Factory automation and machine control

Redundant power

The switch features 48 VDC redundant power, which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents. For PoE, the switch has a power budget of 90 watts.

Alarm alerts

Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which, in the event of a power failure, will activate the alarm to notify administrators.

Easy to set up.

The switch is literally plug-and-play. All ports are autosensing for speed and duplex, adjusting to the connected device automatically. They also feature Auto MDI/MDI-X, eliminating the need for crossover cables.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number LPH3061A
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Name Industrial Ethernet PoE+ Switch - Unmanaged, Extreme Temperature, 6-Port
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 5
Modular Yes
Port/Expansion Slot Details 1 x Gigabit Ethernet Network
Port/Expansion Slot Details 4 x Fast Ethernet Network
Port/Expansion Slot Details 1 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Ethernet Technology Fast Ethernet
Network Technology 1000Base-X
Network Technology 10/100Base-T
Network Technology 10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots 1.0
Expansion Slot Type SFP
Number of SFP Slots 1
Network & Communication
Layer Supported 2
Management & Protocols
Manageable No
Physical Characteristics
Form Factor Wall Mountable
Form Factor Panel-mountable
Form Factor DIN Rail Mountable
Height 5.5"
Width 1.2"
Depth 3.7"
Weight (Approximate) 1.80 lb
Miscellaneous
Package Contents
  • Panel mount kit
  • Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 1 Year
