ATEN CM1164A 4PORT DVI QUAD-IN-ONE KVMP REPLACES CM1164
Mfg Part Number: CM1164A , Item #: 3434613
, PO and Wire.

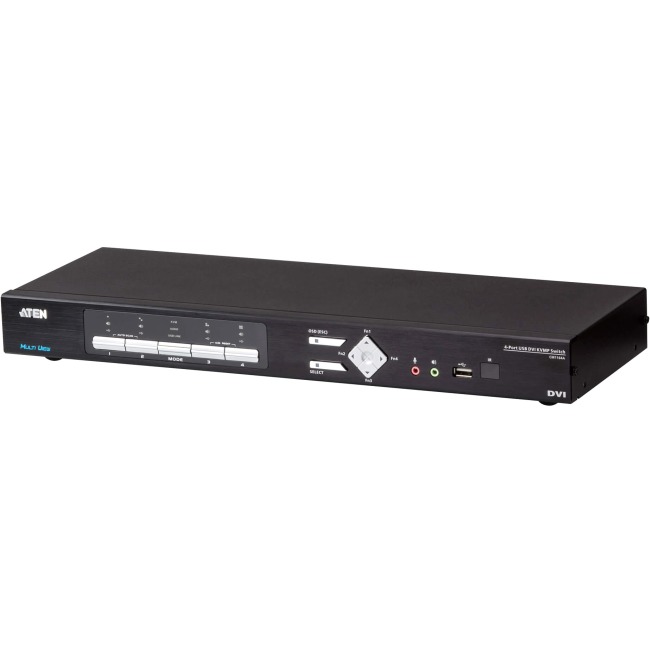

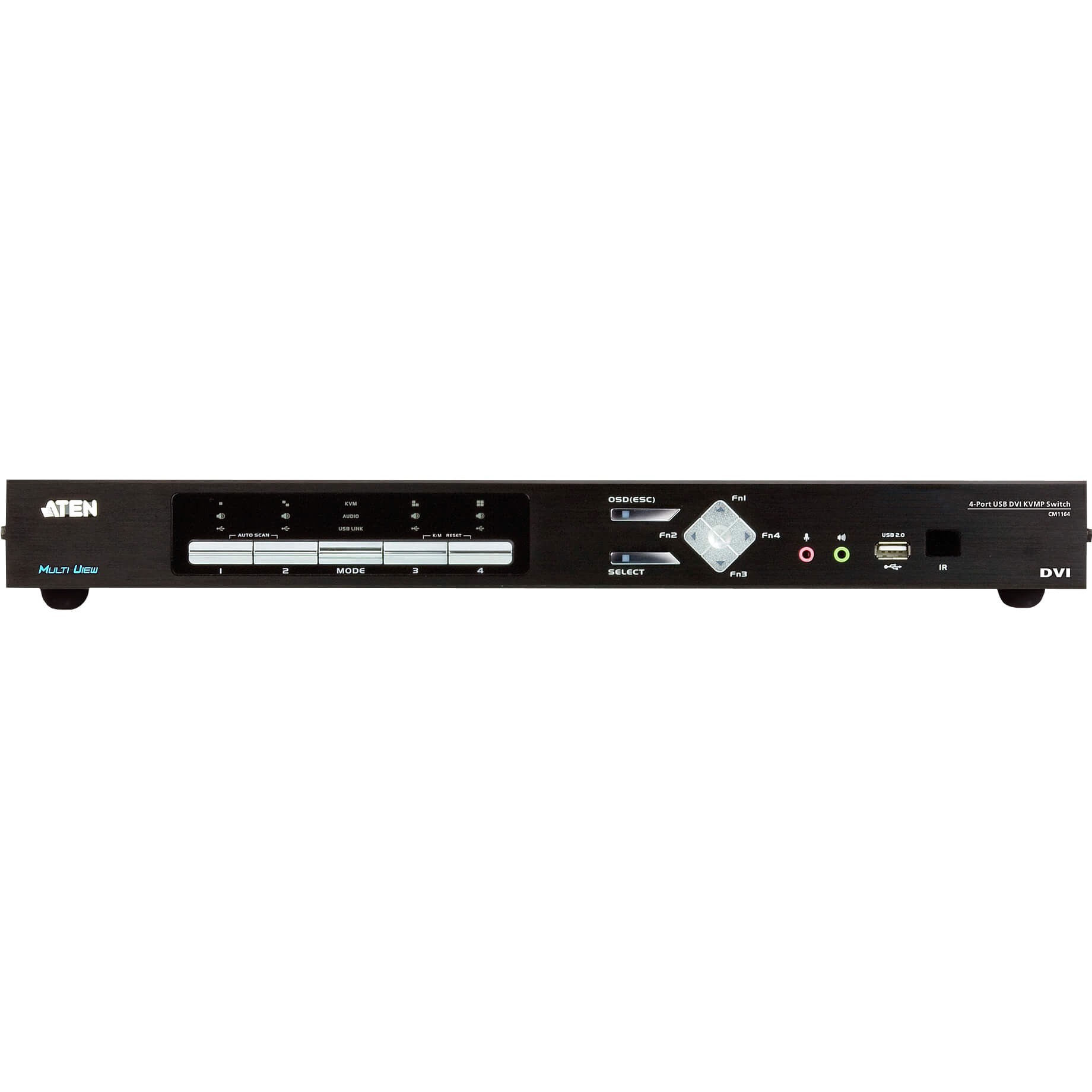

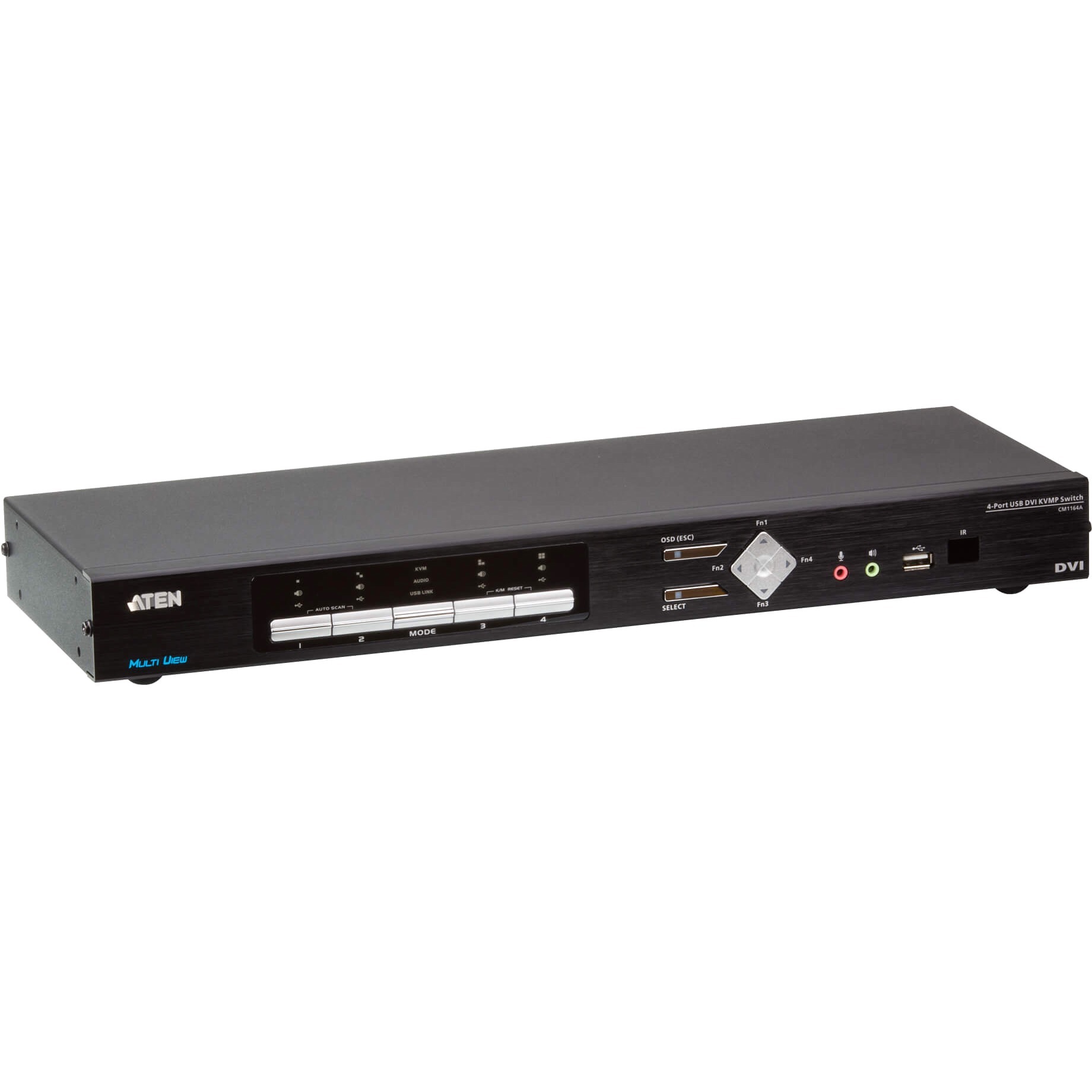

ATEN CM1164A 4-Port USB DVI Multi-View KVMP™ Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time with independent keyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and Full Screen mode.
Featuring Boundless Switching, the CM1164A allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.
Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1164A units via a single console. In addition, CM1164A can be cascaded up to 2 levels to reach the maximum of 16 video sources simultaneously displayed on a display.
Engineered to meet the ever-increasing demand for multi-view functionality, the CM1164A is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.
| General Information | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CM1164A |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | MultiView |
| Product Model | CM1164A |
| Product Name | CM1164A 4-Port USB DVI Multi-View KVMP Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |

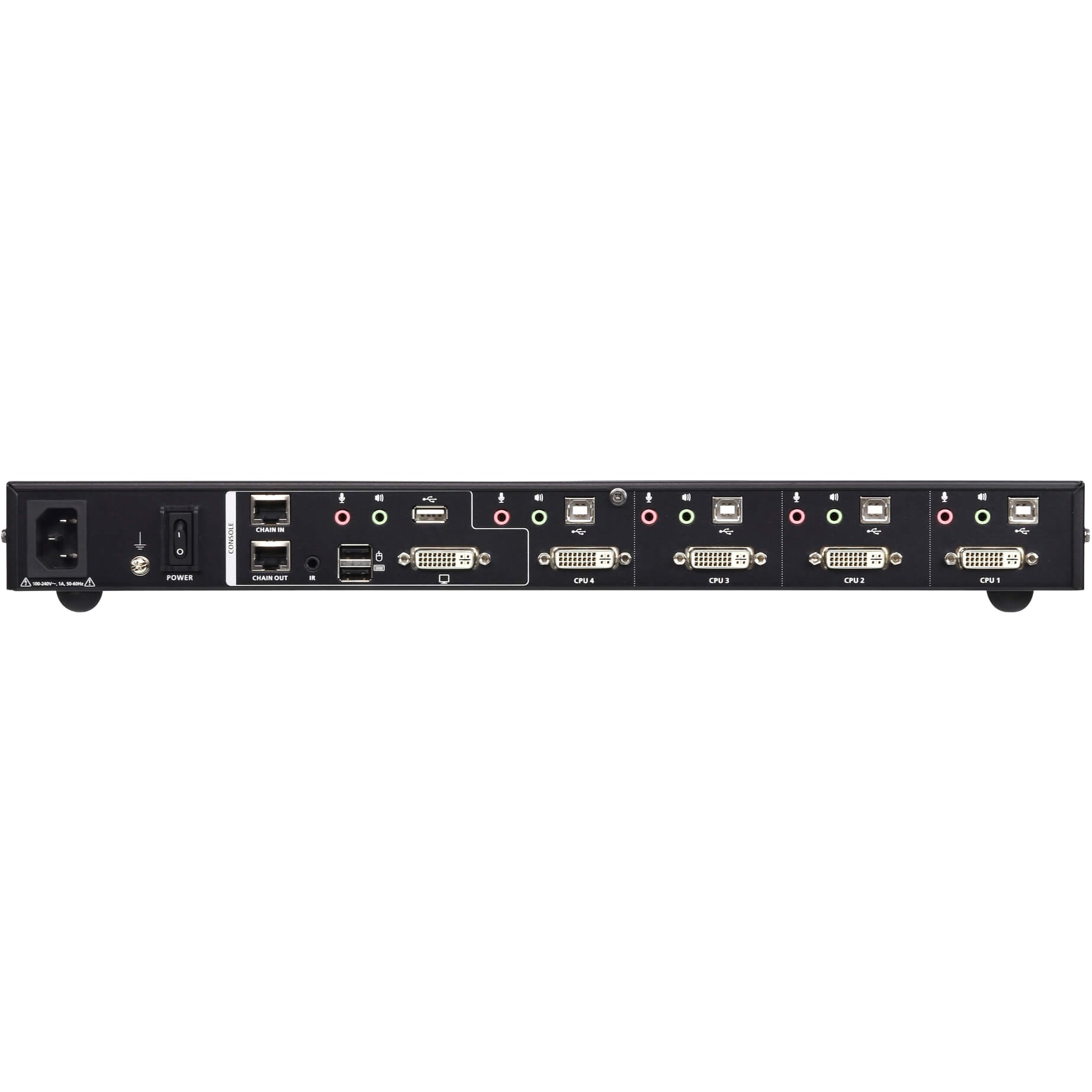

| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 8 |
| Number of DVI Ports | 5 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 6.5" |
| Weight (Approximate) | 5.42 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
