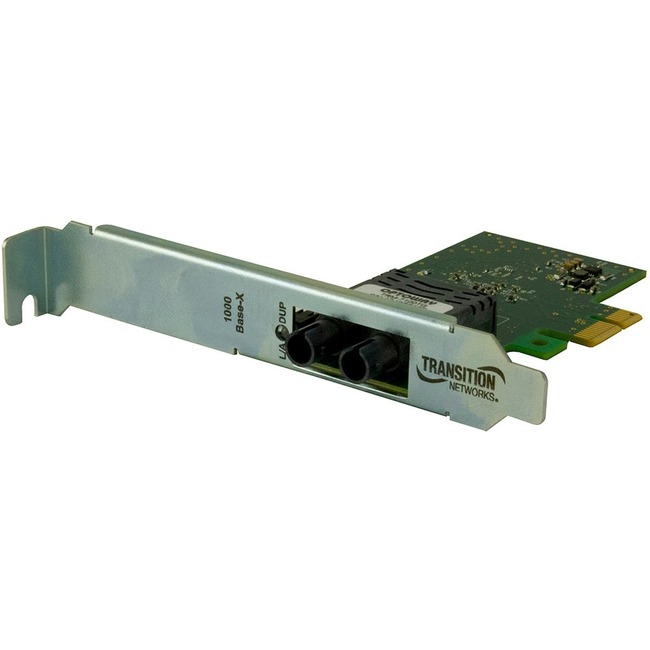

TRANSITION N-GXE-ST-02 1000BASE-X NIC PCIE ST MM 3.3V STD LP
Mfg Part Number: N-GXE-ST-02 , Item #: 3419365
Image may not reflect the actual item.
Price: $384.14
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jan 26, 2026
No Sales Tax except these states
, PO and Wire.
The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed. NDAA Compliant, TAA Compliant
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | N-GXE-ST-02 |
| Manufacturer Website Address | http://www.transition.com |
| Brand Name | Lantronix |
| Product Series | N-GXE-xx-02 |
| Product Name | N-GXE-xx-02 Gigabit Ethernet Card |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.1 x1 |
| Total Number of Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification | 50/62.5/125 µm |
| Maximum Operating Distance | 1804.46 ft |
| Fiber Mode Supported | Multi-mode |
| Network & Communication | |
| Network Technology | 1000Base-SX |
| Environmental Conditions | |
| Minimum Operating Humidity (Non-condensing) | 5% |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Form Factor | Plug-in Card |
| Height | 2.2" |
| Depth | 4.1" |
| Weight (Approximate) | 8.80 oz |
| Miscellaneous | |
| Device Supported | Server |
| Operating System Compatibility | Windows 8 |
| Operating System Compatibility | Windows Server 2008 R2 |
| Operating System Compatibility | Windows 7 |
| Operating System Compatibility | Windows 8.1 |
| Operating System Compatibility | Linux |
| Operating System Compatibility | Windows 10 |
| Operating System Compatibility | FreeBSD |
| Operating System Compatibility | Windows Server 2008 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
