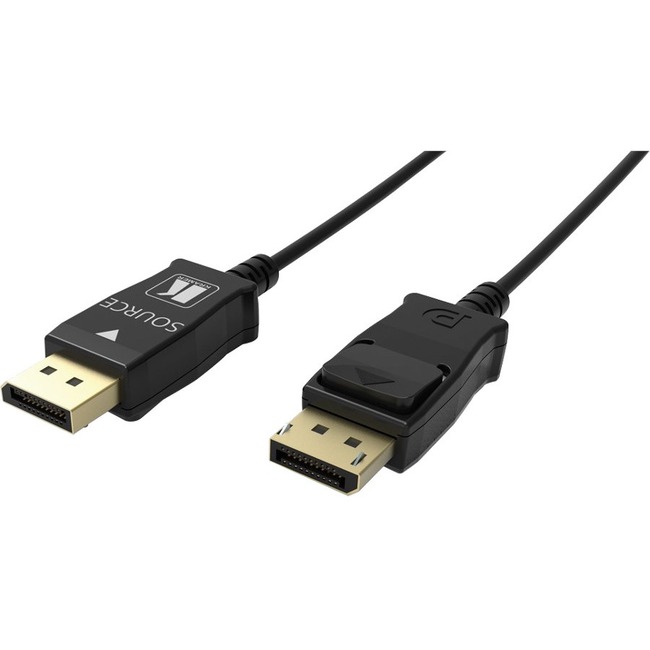

KRAMER 97-0405230 Active optical DisplayPort cable LSHF-230ft
Mfg Part Number: 97-0405230 , Item #: 3377892
Image may not reflect the actual item.
MAP Price: $1,272.00
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 05, 2025
No Sales Tax except these states
, PO and Wire.
Kramer's CLS-AOCDP is a plug-and-play DisplayPort 1.2a active optical cable (AOC). It offers the easiest install solution for DisplayPort, supporting resolutions up to 4K 60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders. With its thin, flexible cable and small connector, the AOCDP delivers ultimate reliability and convenience.
With Kramer's AOCDP, user experience is extremely maximized with its integrator-oriented features along with the latest advances in DisplayPort™ 1.2a technology including 3D, HDCP, EDID, DPCP and 4K 60Hz resolution.
- Active DisplayPort™ 1.2a Cable.
- Video Resolution - up to 4K 60Hz (3840x2160 & 4096x2160).
- High Data Transfer Rate - up to 21.6Gbps data rate with 5.4Gbps/lane (HBR2) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- HDCP 2.2 , EDID and DPCP compliant.
- No External Power - Powers the active units via the DisplayPort connector.
- Thin Construction - 3.4mm (0.13") diameter.
- Jacket Construction - Low smoke & halogen free.
- RoHS 2011/65/EU compliant.
- Varied Selection of Lengths - Available in versions from 33 to 328ft (10 to 100m).
Main Specification
| General Information | |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 97-0405230 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Brand Name | Kramer |
| Product Series | CLS-AOCDP |
| Product Model | CLS-AOCDP-230 |
| Product Name | Active Optical DisplayPort Cable |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | Hybrid Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Cable Length | 229.66 ft |
| Connector Type on First End | DisplayPort 1.2a Digital Audio/Video - Male |
| Connector on First End Details | 1 x DisplayPort 1.2a Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2a Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 1.2a Digital Audio/Video - Male |
| Connector Plating | Gold |
| Jacket Type | LSHF |
| Device Supported | Audio/Video Device |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 21.6 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Features | HDCP |
| Features | Active |
| Features | HDCP 2.2 |
| Features | Halogen Free |
| Features | DPCP |
| Features | Flexible |
| Features | Plug & Play |
| Features | Consumer Electronics Control (CEC) |
| Features | Extended Display Identification Data (EDID) |
| Physical Characteristics | |
| Color Details | |
