CRIMSON AV
CRIMSON AV THE WMLU MENU BOARD FLAT PANEL DISPLAY BRACKETS PROVIDE AN ELEGANT SOLUTION TO W
Mfg Part Number: WMLU , Item #: 3377029
, PO and Wire.

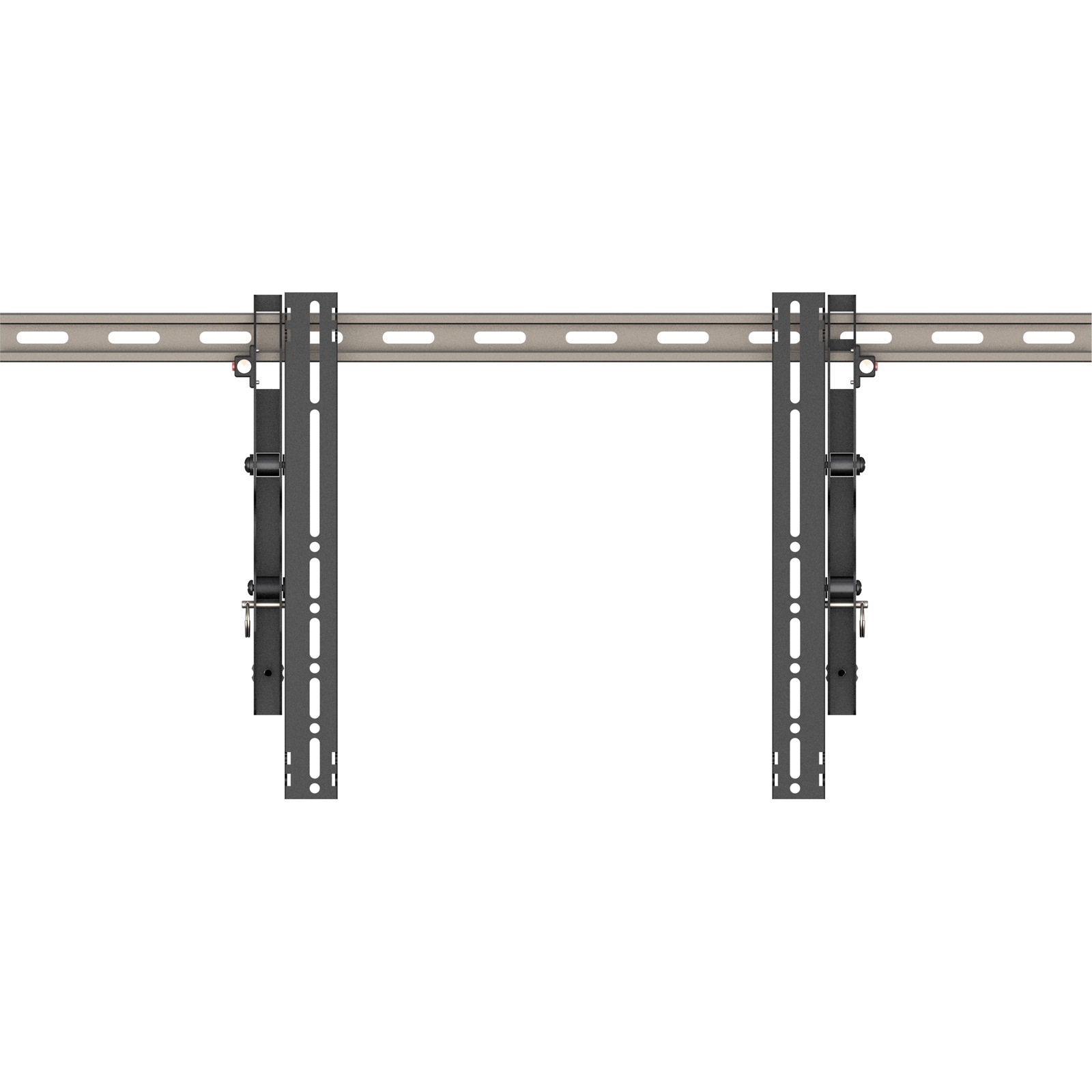

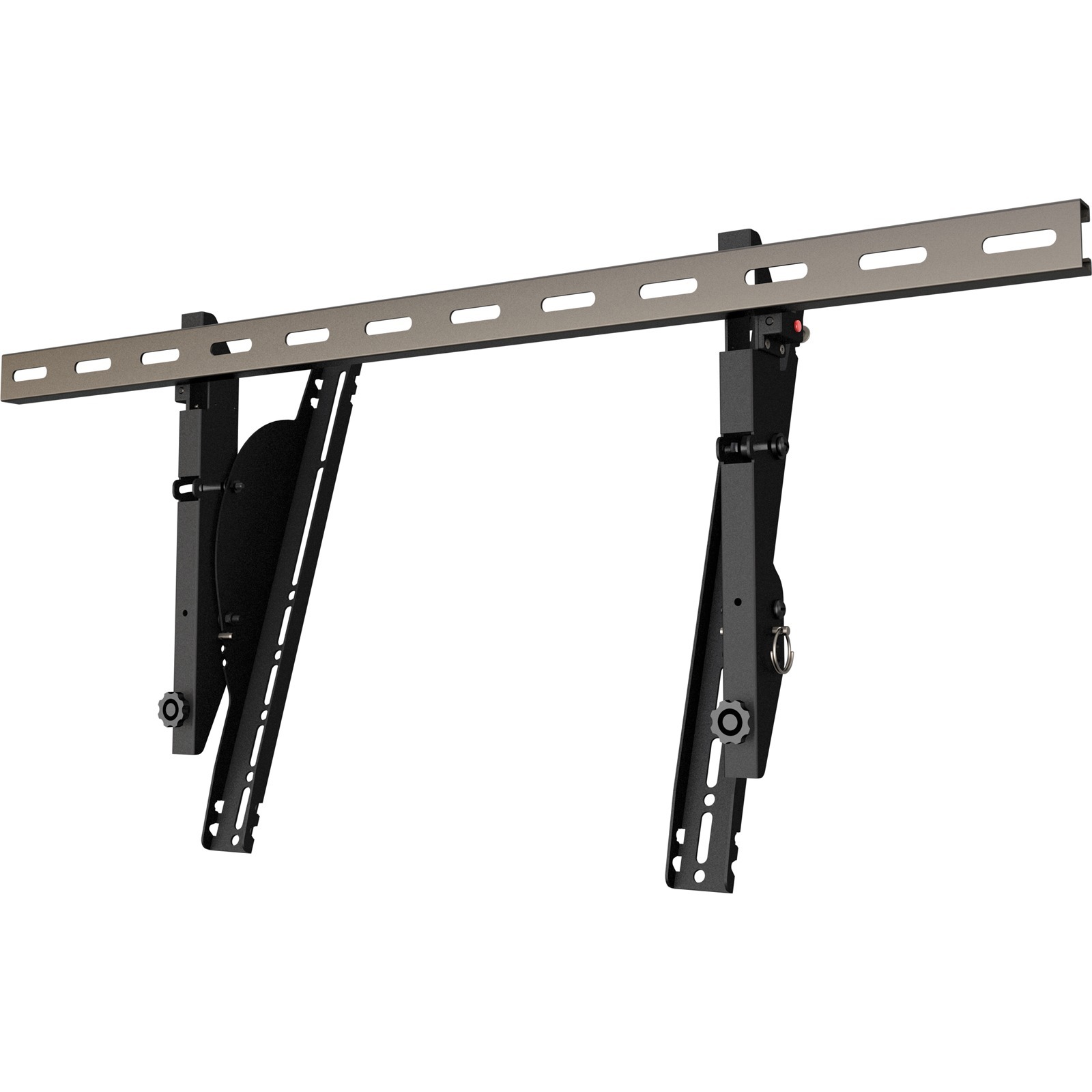

The WMLU menu board flat panel display brackets provide an elegant solution to wall mounted unistrut applications. These brackets attach directly to 1-5/8 unistrut channels, allowing for fast and simple display installation. Plumb adjustment is achieved without the use of tools, ideal for situations involving uneven walls. Up to 18° of tilt allows for a variety of screen positioning for the perfect viewing angle. Supports displays weighing up to 120lbs with VESA patterns of up to 400mm high.
-
Fast and easy installation
-
Ideal for displays 30"-65"+
-
Attaches to 1-5/8 unistrut in minutes
-
Up to 18° of tilt adjustment for a variety of viewing angles
-
No tools required for plumb adjustment
-
Easily assembled by a single installer
-
Includes all necessary components and hardware
-
Supports displays up to 120lbs
| General Information | |
| Manufacturer | Crimson AV |
| Manufacturer Part Number | WMLU |
| Manufacturer Website Address | http://www.crimsonav.com |
| Brand Name | Crimson AV |
| Product Model | WMLU |
| Product Name | Wall Mounted Unistrut Menu Board Brackets with Plumb and Tilt Adjustment |
| Product Type | Mounting Bracket |
| Product Information | |
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 120 lb |
| Maximum Screen Size Supported | 65" |
| Physical Characteristics | |
| Product Color | Black |
| Mounting Pattern | 100 x 100 |
| Mounting Pattern | 600 x 200 |
| Mounting Pattern | 300 x 300 |
| Mounting Pattern | 200 x 100 |
| Mounting Pattern | 1000 x 400 |
| Mounting Pattern | 300 x 200 |
| Mounting Pattern | 400 x 400 |
| Mounting Pattern | 800 x 400 |
| Mounting Pattern | 400 x 300 |
| Mounting Pattern | 200 x 200 |
| Mounting Pattern | 400 x 200 |
| Mounting Pattern | 600 x 400 |
| Mounting Pattern | 75 x 75 |
| Product Material | Cold Rolled Steel |
| Depth | 2.90" |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 10 Year Lifetime |
