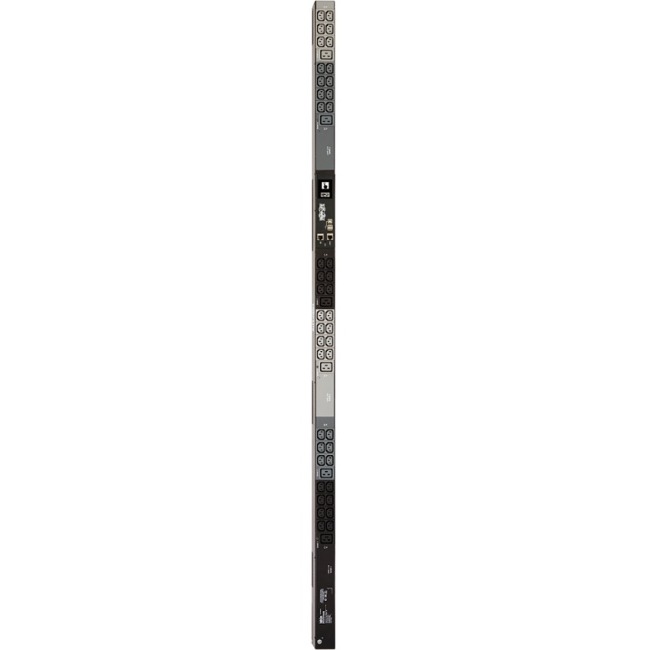

TRIPP LITE PDU3XEVN6G20 3-PHASE PDU MONITORED 11.5KW 220/230/240V 42 C13 6 C19 16/20A

Mfg Part Number:  PDU3XEVN6G20
Image may not reflect the actual item.
Price: $961.99
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 04, 2025
No Sales Tax except these states
, PO and Wire.

Features

3-Phase PDU Distributes and Monitors Network-Grade Power

This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers, server rooms and high-density network closets, the PDU3XEVN6G20 features 42 C13 and six C19 220/230/240V outlets in three load banks, which distribute AC power to rack equipment. Each load bank is accompanied by an LED that illuminates green when it is ready to distribute power. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Offers Important Data at a Glance

An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU, the LCD also displays status and environmental data, such as temperature and humidity.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with IEC 309 16/20A Red (3P+N+E) 380/400/415V 3-phase input connects the PDU to a compatible AC power source, generator or protected UPS.

TAA-Compliant for GSA Schedule Purchases

The PDU3XEVN6G20 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

2-Year Warranty

The PDU3XEVN6G20 is backed by a 2-year warranty, ensuring reliability and performance.

More from the Manufacturer

Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number PDU3XEVN6G20
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Model PDU3XEVN6G20
Product Name PDU3XEVN6G20 48-Outlets PDU
Product Type PDU
Technical Information
PDU Type Monitored
Phase Three Phase
Plug/Connector Type IEC 60309 16/20A RED (3P+N+E)
Receptacle Type IEC 60320 C19
Receptacle Type IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C19
Receptacle Detail 42 x IEC 60320 C13
Power Description
Input Voltage 415 V AC
Input Voltage 400 V AC
Input Voltage 380 V AC
Output Voltage 240 V AC
Output Voltage 230 V AC
Output Voltage 220 V AC
Power Rating (Watt) 11.50 kW
Input Current 16 A
Management
Management
  • IPv4
  • IPv6
  • HTTP
  • HTTPS
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • telnet
  • SSH
  • FTP
  • DHCP
  • NTP
Interfaces/Ports
Network (RJ-45) Yes
Physical Characteristics
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 70"
Width 2.2"
Depth 2.9"
Weight (Approximate) 13.49 lb
Miscellaneous
Package Contents
  • PDU3XEVN6G20 48-Outlets PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 48 x Plug-Lock Insert Sleeves
  • Rack-Mounting Hardware
  • Spare Mounting Buttons
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
