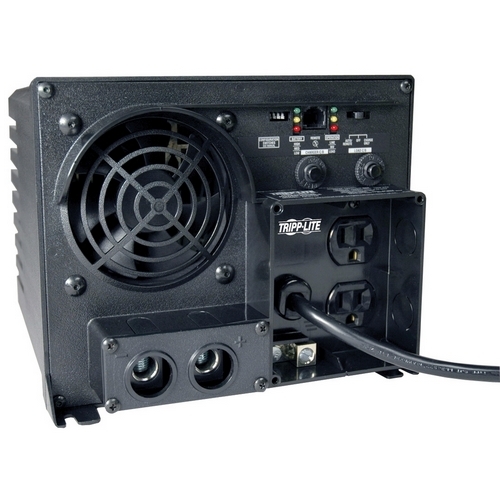

APS750 Tripp Lite PowerVerter APS 750W Inverter/Charger

Mfg Part Number:  APS750
Image may not reflect the actual item.
Price: $454.98
Quantity:
In Stock: 58
Last Updated: Apr 27, 2024
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number APS750
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Line PowerVerter
Product Series APS
Product Model APS750
Product Name PowerVerter APS 750W Inverter/Charger
Product Type Power Inverter
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacles 2 x NEMA 5-15R
Power Description
Input Voltage 120 V AC
Input Voltage 12 V DC
Output Voltage 120 V AC
Maximum Frequency 60 Hz
Peak Power Load 1500 W
Continuous Power Load 750 W
Waveform Type Pulse-width Modulated Sine Wave
Physical Characteristics
Height 7"
Width 8.8"
Depth 9"
Length 12.5"
Weight (Approximate) 17 lb
Miscellaneous
Package Contents
  • PowerVerter APS 750W Inverter/Charger
  • Instruction Manual with Warranty Information
Country of Origin China
Warranty
Limited Warranty 1 Year
product information
General Information
Input Voltage-nominal -
Output Voltage -
Output Power -
Voltage Regulation Accuracy -
Number of Outlets -
Mounting Type -

Specifications

  • Mfr Part Number: APS750
  • Features:
    • Reliable Power for Mobile, Emergency and Remote Sites
    • Meets Normal and Peak Power Demands
    • Automatic Transfer Switching
    • 3-Stage 20A Battery Charger
    • Optional Remote Control Capability
    • Front-Panel LEDs
    • Rugged Polycarbonate Housing
  • Output:
    • Nominal Output Voltage(s) Supported: 120V
    • Frequency Compatibility: 60 Hz
    • Output Receptacles: (2) 5-15R
    • Output: 750 Watts
    • Continuous Output Capacity: 750 Watts
    • Peak Output Capacity: 1500 Watts
    • Output Voltage Regulation:
      • Line Power (AC): Maintains 120V nominal sine wave output from line power source
      • Inverter Power (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%)
    • Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)
    • Overload Protection: Includes 6A AC input breaker dedicated to the charging system and 8A output breaker for AC output loads
  • Input:
    • Nominal Input Voltage(s) Supported: 120VAC
    • Recommended Electrical Service:
      • DC Input: equires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation)
      • AC Input: 15A 120VAC recommended
    • Maximum Input Amps / Watts:
      • DC Input: Full continuous load - 72A at 12V DC
      • AC Input: 8 amps at 120VAC with full inverter and charger load (4.2A max charger-only)
    • Input Connection Type:
      • DC Input: Set of 2 DC bolt-down terminals
      • AC Input: NEMA 5-15P input plug
    • Voltage Compatibility: 120 VAC, 12VDC
  • Battery:
    • Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet, gel or SLA batteries
    • DC System Voltage: 12 VDC
    • Battery Charge: 20A
    • Expandable Runtime: Yes
  • AC Suppression Joule Rating: 450
  • Cooling Method: Multi-speed fan
  • Material of construction: Polycarbonate
  • Receptacle Color: Black
  • Dimensions (WxDxH): 8.75 x 9.00 x 7.00 inch / 22.23 x 22.86 x 17.78 cm
  • Weight: 17.0 lbs / 7.7 kg
