TYAN

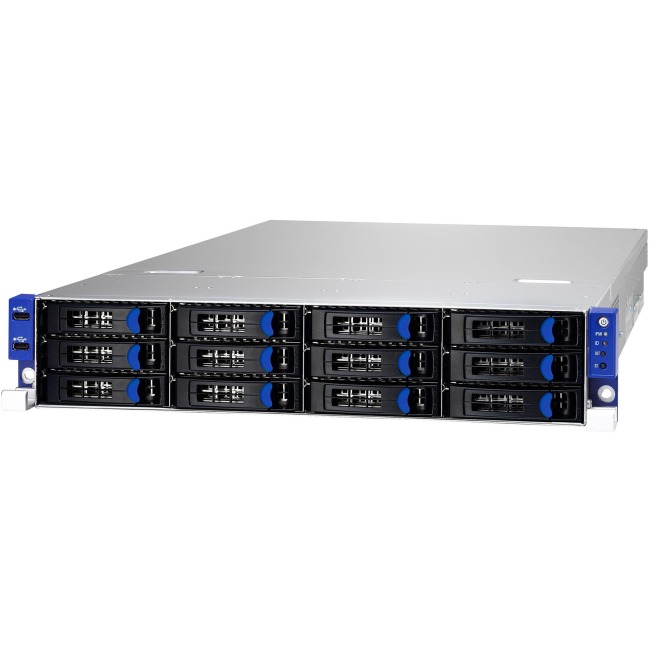

B7106T70EV12HR TYAN INTEL 2U / DUAL SOCKET XEON SP
Mfg Part Number: B7106T70EV12HR , Item #: 3261079
Image may not reflect the actual item.
Price: $2,310.39
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 23, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7106T70EV12HR |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Tyan |
| Product Line | Thunder SX |
| Product Model | TN70EB7106 |
| Product Name | Thunder SX TN70EB7106 (B7106T70EV12HR) |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Capacity | 32 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 12 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 6.9 x64 |
| Operating System Supported | CentOS 7.4 x64 |
| Operating System Supported | CentOS 7.3 x64 |
| Operating System Supported | Windows 10 x64 |
| Operating System Supported | Ubuntu 17.04 x64 |
| Operating System Supported | Ubuntu 16.04 LTS x64 |
| Operating System Supported | Red Hat Enterprise linux 7.3 x64 |
| Operating System Supported | Red Hat Enterprise linux 7.4 x64 |
| Operating System Supported | Windows Server 2012 R2 x64 |
| Operating System Supported | Windows Server 2016 x64 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 770 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 27.6" |
| Weight (Approximate) | 38.58 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
