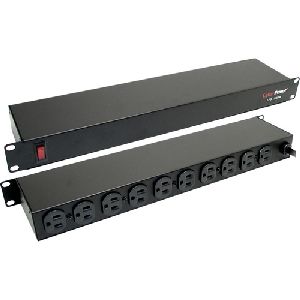

The CyberPower CPS1215RM, a 10-outlet (rear) rackmount power distribution unit (PDU), provides 100-125V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1215RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is UL Recognized. The CPS1215RM comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CPS-1215RM |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Brand Name | CyberPower |
| Product Model | CPS-1215RM |
| Product Name | CPS1215RM Single Phase 100 - 120 VAC 15A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Protection Type | Short Circuit Protection |
| Protection Type | Overload Protection |
| Locking Receptacles | Cord Retention Tray |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Power Rating (VA) | 1800 VA |
| Input Current | 15 A |
| Circuit Breaker | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rail-mountable |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 1U |
| Number of Cord/Cable | 1 |
| Cord Length | 15 ft |
| Height | 1.8" |
| Width | 17.3" |
| Depth | 4.8" |
| Weight (Approximate) | 5 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | |
| Application/Usage | Data Center |
| Certifications & Standards |
|
| Country of Origin | China |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Parts Warranty/Labor | 3 Year Parts & Labor |
| Additional Warranty Information | CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge. |
MODEL- CPS-1215RM VENDOR- CYBER POWER SYSTEMS
FEATURES- Rackmount Power Strip- 15 Amps
This rackmount power strip provides additional outlets for your
rackmount power needs. Fits a standard 19" rack and occupies 1U of
rack space.
-- SPECIFICATIONS -----------------------------------
OUTLETS - (10) NEMA 5-15R (15 Amp)
CORD LENGTH - 15 feet
CONTROLS - Lighted on/off switch
